Supermicro X10SLV-B X10slv Desktop Motherboard Intel H81 Chipset Socket H3 Lga1150 Mini Itx
by Supermicro
| Price: | $223.02 |
| MFG Part: |
| UPC: |
| Condition: |
Currently Unavailable.

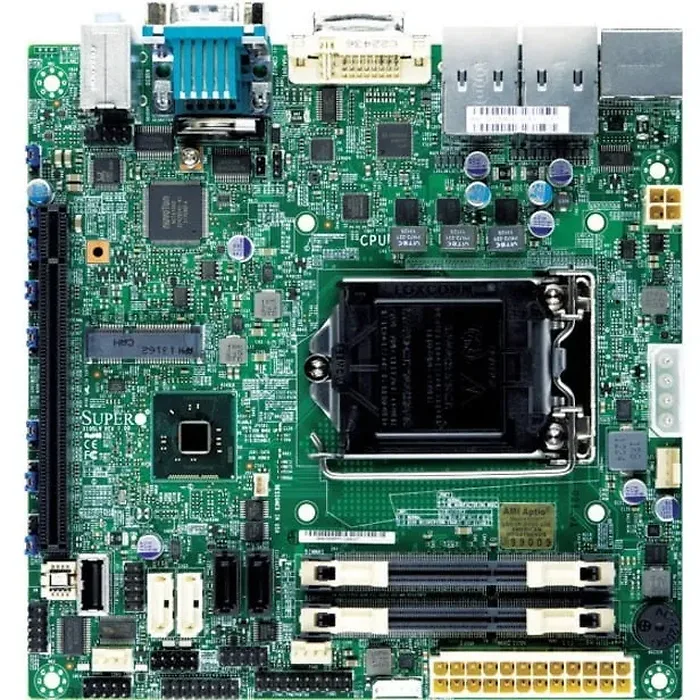

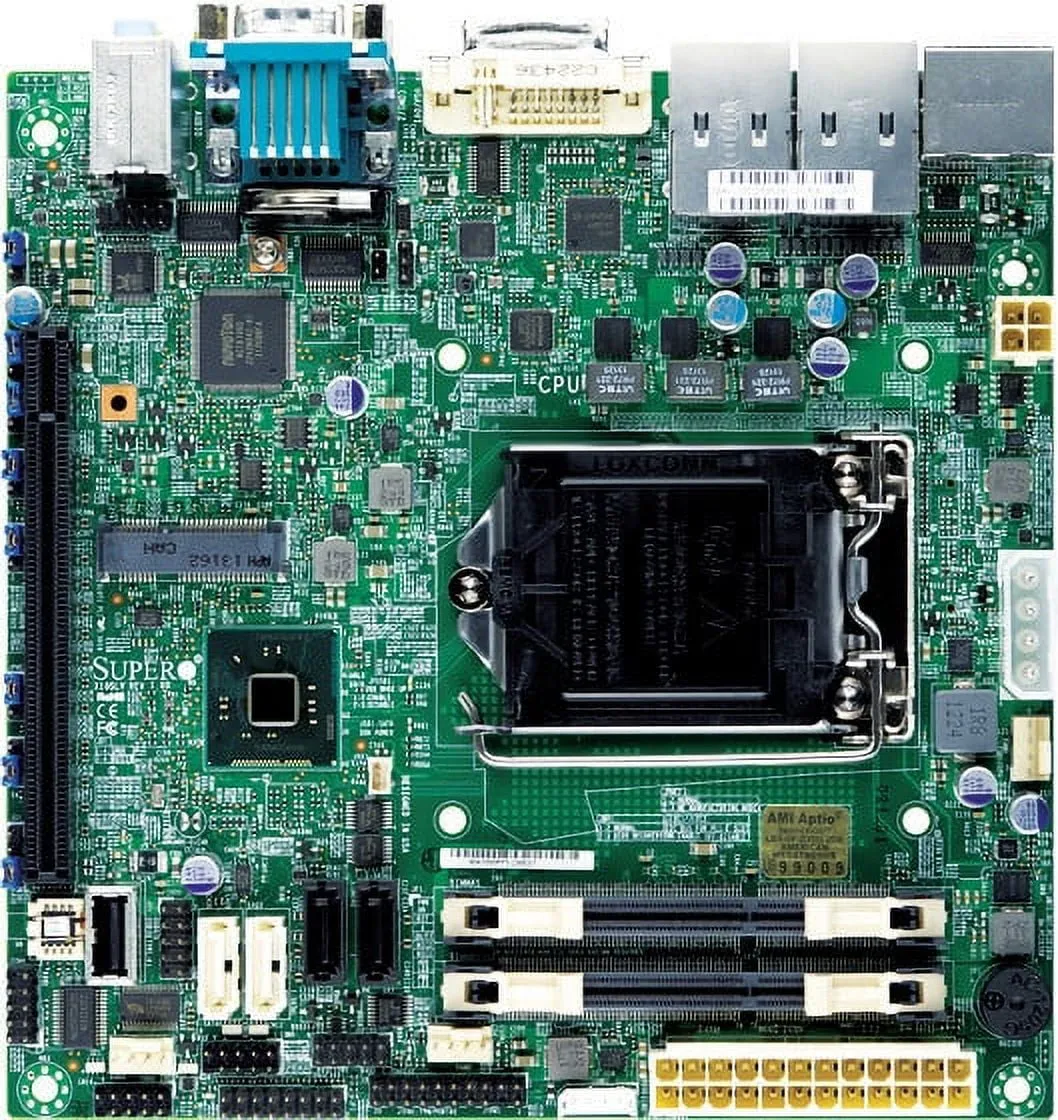

The Supermicro Mini-ITX Motherboard is designed for efficient performance and versatility. It features the LGA1150 socket and is compatible with a variety of Intel processors, including the 4th Generation Intel Core i7, i5, i3, Pentium, and Celeron. With a robust Intel H81 chipset, this motherboard supports up to 16GB of DDR3 memory across two SODIMM slots.
Equipped with multiple expansion options, it includes a PCI-Express 2.0 x16 slot and a Mini PCI-Express slot with mSATA functionality. Storage options are abundant with two SATA3 ports, one of which is shared with an mSATA3 port, alongside two SATA2 ports for additional devices.
Audio capabilities are powered by the Realtek ALC888S High Definition Audio CODEC, ensuring high-quality sound. Networking is managed through Intel's i217V and i210AT Gigabit Ethernet controllers, providing reliable and fast internet connectivity.
Port availability includes two USB 3.0 ports, five USB 2.0 ports, a DVI port, an HDMI port, a DisplayPort, and multiple serial ports, ensuring compatibility with various peripherals. Its compact Mini-ITX form factor (6.7 x 6.7 inches) makes it ideal for space-saving builds without compromising on features.
Specifications
- Compatible with 4th Generation Intel Core i7/i5/i3, Pentium, Celeron processors
- Supports up to 16GB DDR3 memory
- 2x SATA3 ports (1 shared with mSATA3) and 2x SATA2 ports
- Multiple expansion slots: 1x PCI-Express 2.0 x16, 1x Mini PCI-Express
- Realtek ALC888S High Definition Audio CODEC
- Dual Intel Gigabit Ethernet controllers for reliable networking
- Multiple ports: 2x USB 3.0, 5x USB 2.0, DVI, HDMI, DisplayPort, and serial ports
- Compact Mini-ITX form factor (6.7 x 6.7 inches)
