Supermicro MBD-X11SSL-O X11sslo Microatx Motherboard For Intel Cpu
by Supermicro
| Price: | $270.37 |
| MFG Part: | MBD-X11SSL-O |
| UPC: | 672042200931 |
| Condition: | New |
Currently Unavailable.
Ships from and sold by Aztek Computers.
Added On: Nov 11, 2023 | Updated On: May 20, 2025 | Views: 127

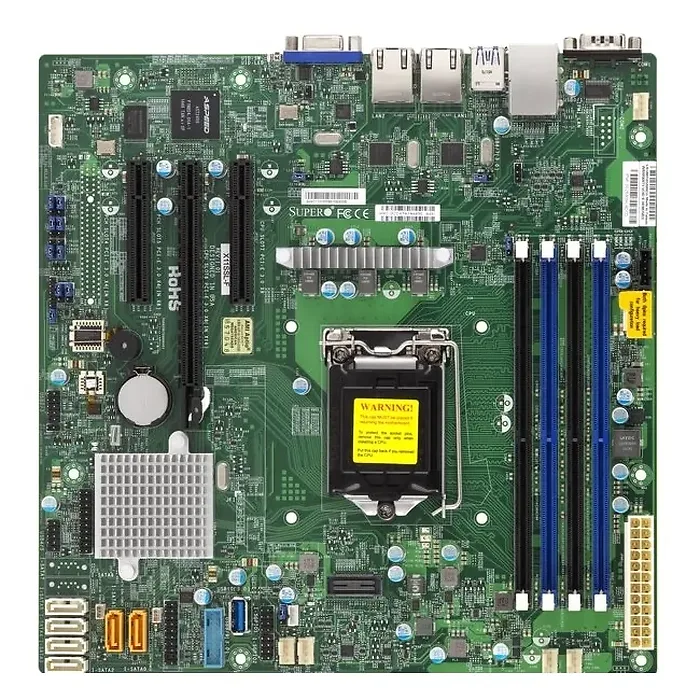

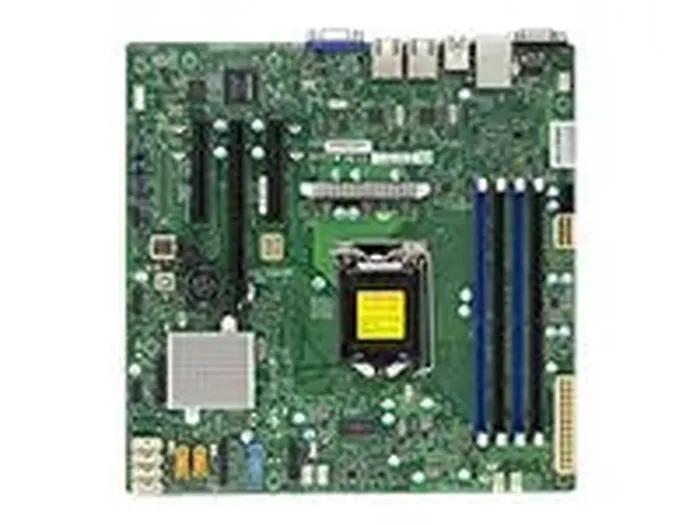

The Supermicro X11SSL-O is a feature-rich MicroATX motherboard designed to support Intel's LGA1151 processors. With its robust Intel C232 chipset, it provides excellent performance and reliability for both home and office setups.
This motherboard offers extensive memory support with four DDR4 DIMM slots, allowing for a maximum capacity of 64GB. It also features multiple expansion slots, SATA3 ports for storage, and dual Gigabit Ethernet controllers for networking. The Supermicro X11SSL-O is an ideal choice for users looking for a versatile and powerful motherboard.
Specifications
- Socket: LGA1151 - Supports Intel Xeon E3-1200 v5, 6th Gen Intel Core i3/Pentium/Celeron processors
- Chipset: Intel C232
- Memory Support: 4x 288pin DDR4-2133/1866/1600 DIMM slots, ECC, unbuffered, max 64GB
- Expansion Slots: 1x PCI-Express 3.0 x16 (runs at x8), 2x PCI-Express 3.0 x8 (one runs at x4)
- SATA Interface: 6x SATA3 ports, supports RAID 0, 1, 5, 10
- Graphics: ASPEED AST1400 BMC graphics
- Network: Dual Intel I210-AT Gigabit Ethernet controllers
- USB Ports: 5x USB 3.0 (2 rear, 2 via header, 1 Type A), 6x USB 2.0 (2 rear, 4 via headers)
- Additional Ports: 1x VGA port, 1x Serial port, 2x RJ45 LAN ports
- Form Factor: MicroATX, dimensions: 9.6 x 9.6 inch / 24.4 x 24.4 cm
- Compliance: RoHS Compliant
