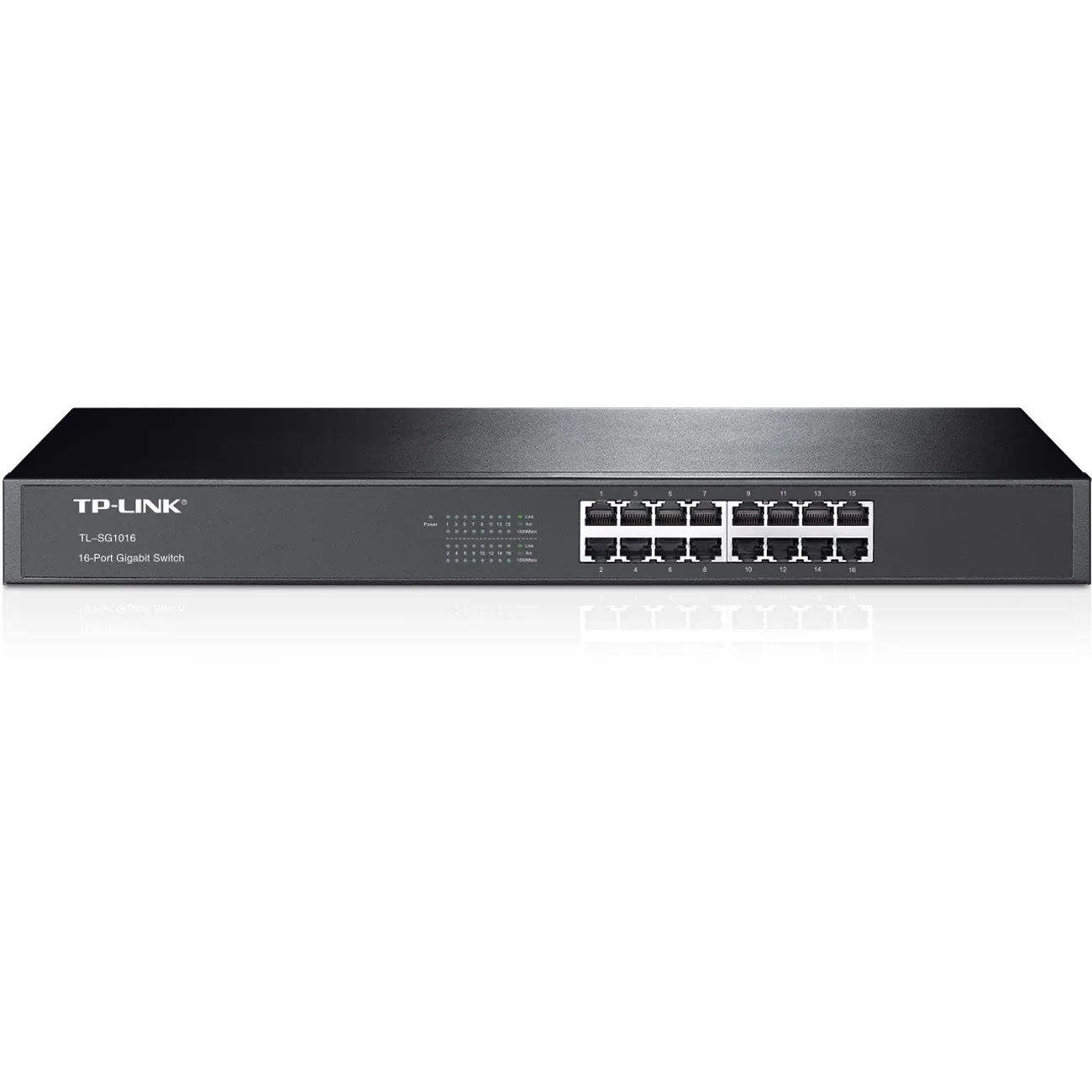

Tplink TL-SG1016 Network 16port Unmanaged Gigabit Rackmount Switch Retail
by TPLINK
| Price: | $91.12 |
| MFG Part: | TL-SG1016 |
| UPC: | 845973020095 |
| Condition: | New |
In Stock.
Ships from and sold by Besy Castillo.
Added On: Sep 1, 2022 | Updated On: Mar 17, 2026 | Views: 2
The TL-SG1016 16-Port Gigabit Switch is rack-mounted and provides an seamless way to make the transition to Gigabit Ethernet. All 16 ports support auto MDI/MDIX, and the ability to simply plug and play. With its innovative energy-efficient technology, the 16 port Gigabit Ethernet switch can save up to 40 percent of your power consumption, making this an eco-friendly solution for any business network. Every switch supports Mac address self-learning, is compact in size and is an excellent choice for anyone who wants an easy to use system.
Specifications
Features All ports support Full/half duplex transfer mode for 10Mbps/100Mbps and Full duplex transfer mode for 1000Mbps Supports Auto-MDI/MDIX function Supports IEEE 802.3X flow control for full-duplex mode and back pressure flow control for half-duplex mode Store and forward Switching scheme Specifications Standards and Protocols :IEEE802.3, 802.3u, 802.3ab, 802.3x
CSMA/CD, TCP/IP Basic Function :
Wire-speed Performance
MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode Backbound Bandwidth : 32Gbps MAC Address Table : 8k Forwarding Rate :
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
1000BASE-T: 1488000pps/port Transmission Method : Store-and-Forward Ports : 16 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX) Network Media :
10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100U STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100U STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m) LED Indicators : Power, Link/Act Safety and Emission : FCC, CE Environment :
Operating Temperature: 0C-40C (32F-104F)
Storage Temperature: -40C-70C (-40F-158F)
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%-90% non-condensing Power : 100-240VAC, 50/60Hz Dimensions / Weight Dimensions (WxDxH) : 17.3x7.1x1.7 in. (440x180x44 mm)
