Trident 327-1126 Trident 112" X 50' A2 Marine Fuel Fill Hose
by Trident Marine

• ☆☆☆☆☆
• 1 customer reviews (jump to section)

In Stock.
only 2 left in stock order soon

Trident 1-1/2" x 50' A2 Marine Fuel Fill Hose

This high-quality A2 marine fuel fill hose is designed for gasoline (including ethanol blends) and diesel (including biodiesel blends) applications. It offers superior protection against the harsh marine environment.

Key Features:

• Constructed with advanced fuel, fire, and age-resistant materials.
• Exceptional resistance to aging, fire, heat, cold, and ozone exposure.
• Designed for excellent flexibility and bend-ability.

Application:

• Suitable for marine fuel fill and vent as well as diesel distribution.
• Approved for all types of marine fuels including gasoline, alcohol blends, diesel, and biodiesel.

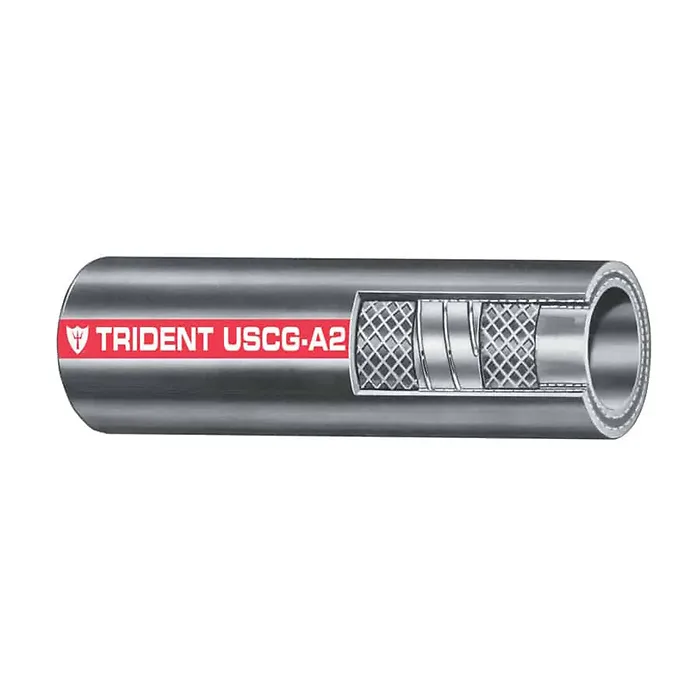

Construction:

• Tube & Cover: NBR / Neoprene materials.
• Reinforcement: High tenacity polyester with 2 spirals and spring steel helix.
• Temperature Range: -20°F to 212°F (-20°C to 100°C).
• Length: 50 ft. (15.24 m) coil.

Specifications:

• Inner Diameter: 1-1/2" (38 mm).
• Outer Diameter: 2" (51 mm).
• Wall Thickness: 0.25" (6.4 mm).
• Working Pressure: 60 psi (0.41 mpa).
• Bend Radius: 5.5" (140 mm).

*The #327 series meets or exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, and USCG Type A2 standards; it is NMMA Type Accepted, CE certified, and Lloyds Registry Type Approved.
