Trident 327-1126-FT 112" A2 Fuel Fill Hose Per Foot
by Trident Marine

• ☆☆☆☆☆
• 1 customer reviews (jump to section)

Currently Unavailable.

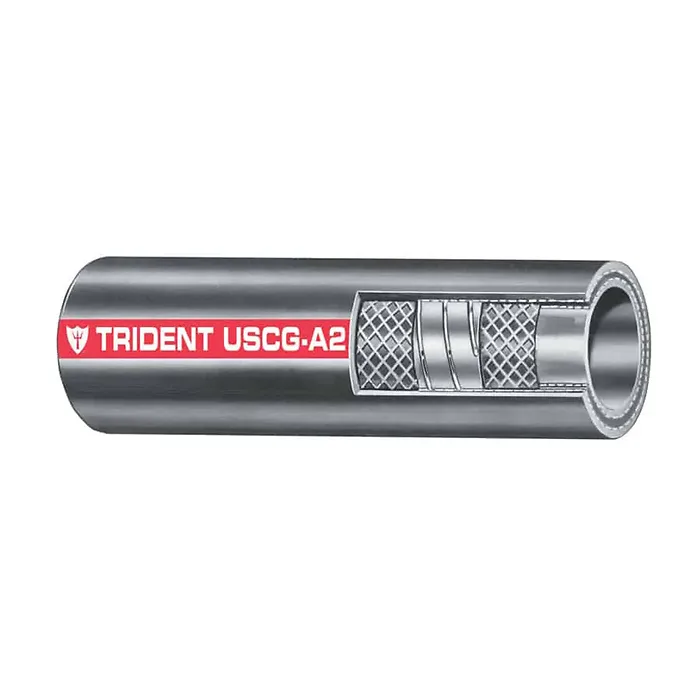

1-1/2" A2 Fuel Fill Hose - Sold by the Foot

The Trident 1-1/2" ID A2 fuel fill hose is designed for use with gasoline (including ethanol blends) and diesel (including biodiesel blends). This high-quality hose is perfect for marine applications.

Key Features:

• Sold by the foot for custom lengths
• Constructed with a premium fuel, fire, and age-resistant formulation
• Exceptional resistance to aging, fire, heat, cold, and ozone
• Superior flexibility allows for easy installation

Applications:

• Ideal for marine fuel fill and vent systems
• Approved for all marine fuel types, including gasoline, alcohol blends, diesel, and biodiesel

Construction Details:

• Tube & Cover: NBR / Neoprene
• Reinforcement: High tenacity polyester with 2 spirals and spring steel helix
• Temperature Range: -20°F to 212°F (-20°C to 100°C)

Specifications:

• Inner Diameter: 1-1/2" (38mm)
• Outer Diameter: 2" (51mm)
• Wall Thickness: 0.25" (6.4mm)
• Working Pressure: 60 psi (0.41 Mpa)
• Bend Radius: 5.5" (140mm)

*The #327 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, & USCG Type A2; it is NMMA Type Accepted, CE certified, and Lloyds Registry Type Approved.
