Hall UV2-S Video Splitter With Phantom Power Over Utp
by HALL RESEARCH
| Price: | $199.10 |
| MFG Part: | UV2-S |
| UPC: | 643765555233 |
| Condition: | New |
Currently Unavailable.
Ships from and sold by Aztek Computers.
Added On: Mar 20, 2026 | Updated On: Aug 29, 2024 | Views: 1

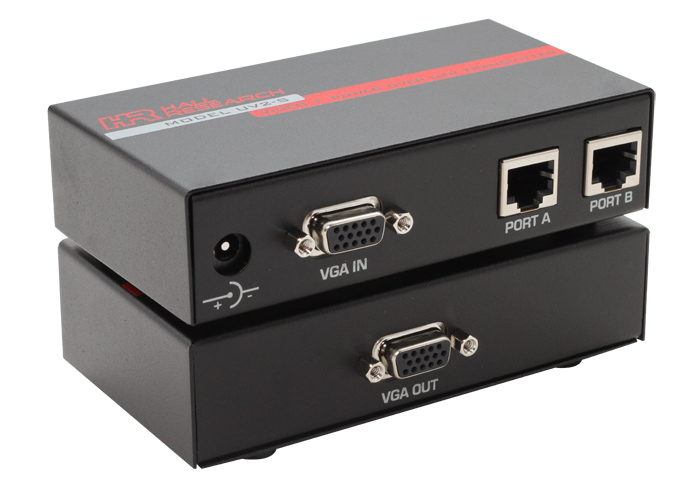

The UV2-S is a dual-channel video splitter designed to transmit VGA or component video signals to multiple displays via Cat5 cabling. This model features a standard HD15 VGA input connector along with two RJ45 output connectors. Additionally, it provides a local VGA output for connecting a local monitor. Capable of driving Cat5 cables up to 500 feet in length, the UV2-S ensures long-distance transmission without loss of quality. To convert the UTP signal back to VGA at the remote end, a Model UV1-R is required. Typically, only one power supply is needed to power the entire system; the UV2-S comes with a power supply capable of powering itself and all connected UV1-R receivers. However, for runs exceeding 300 feet, additional power supplies for the receivers (HRT model #511-PS9016A) must be sourced separately. Proudly made in the USA.
New Open Box (1) from Other Sellers on Arceto
-
$158.50
Sold by: Aztek Renew - New Open Box (1) from Other Sellers on Arceto
Specifications
- Transmits VGA/component video signals up to 500 feet
- HD15 VGA input and 2 RJ45 output connectors
- Includes local VGA output for local monitor connection
- Single power supply typically powers entire system
- Additional receivers require separate power supplies for long runs
- Requires UV1-R model for signal conversion at remote displays
- Made in the USA
