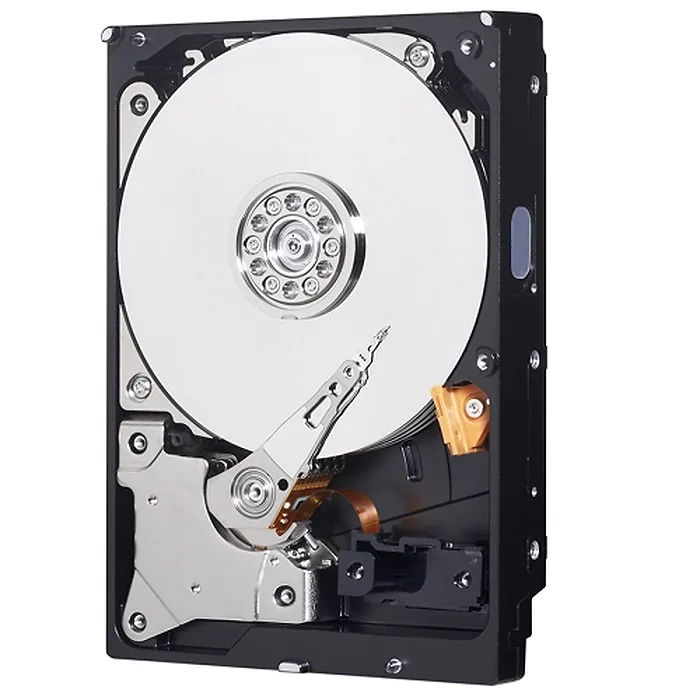

Western WD2003FYYS-NDW-RC Re4 2 Terabyte 2tb Sata300 7200rpm 64mb Harddrive
by Western Digital

Specifications

• Western DigitalRE4 Enterprise 2 Terabyte (2TB) SATA/300 7200RPM 64MB HardDrive

• GeneralFeatures:
• Interface: SATA 3Gb/s
• Formatted capacity: 2TB
• User sectors per drive:3,907,029,168
• Native command queuing
• SATA latching connector
• Form factor: 3.5-inch

• Performance:
• Data transfer rate(max)
  • Buffer to host: 3Gb/s
  • Host to/from drive(sustained): 138 MB/s
  • Cache (MB): 64
  • Rotational speed (RPM):7200
  • Average drive ready time (sec): 21

  • Configuration/Organization:
  • Heads/disks: 8/4
  • Bytes per sector (STD):512

  • Reliability/DataIntegrity:
  • Load/unload cycles:600,000
  • Non-recoverable read errorsper bits read: <1 in 1015

  • PowerManagement:
  • 12VDC (A, max): 1.8
  • Average power requirements(W):
    • Read/Write: 10.7
    • Idle: 8.2
    • Standby: 1.3
    • Sleep: 1.3

    • EnvironmentalSpecifications:
    • Temperature (°C)
      • Operating: 5to 55
      • Non-operating: -40 to70
      • Shock (Gs):
        • Operating (2 ms, read/write):30
        • Operating (2 ms, read):65
        • Non-operating (2 ms):300
        • Average acoustics(dBA):
          • Idle mode: 29
          • Performance seek mode:34
          • Quiet seek mode: 30

          • PhysicalDimensions:
          • Height (in./mm, max):1.028/26.1
          • Length (in./mm, max)5.787/147
          • Width (in./mm, ± .01 in.):4/101.6
          • Weight (lb./kg, ± 10%)1.49/0.68
