Wichard 35500 Wichard 18mm Snatch Block With Snap Shackle
by Wichard Marine

• ☆☆☆☆☆
• 1 customer reviews (jump to section)

Currently Unavailable.

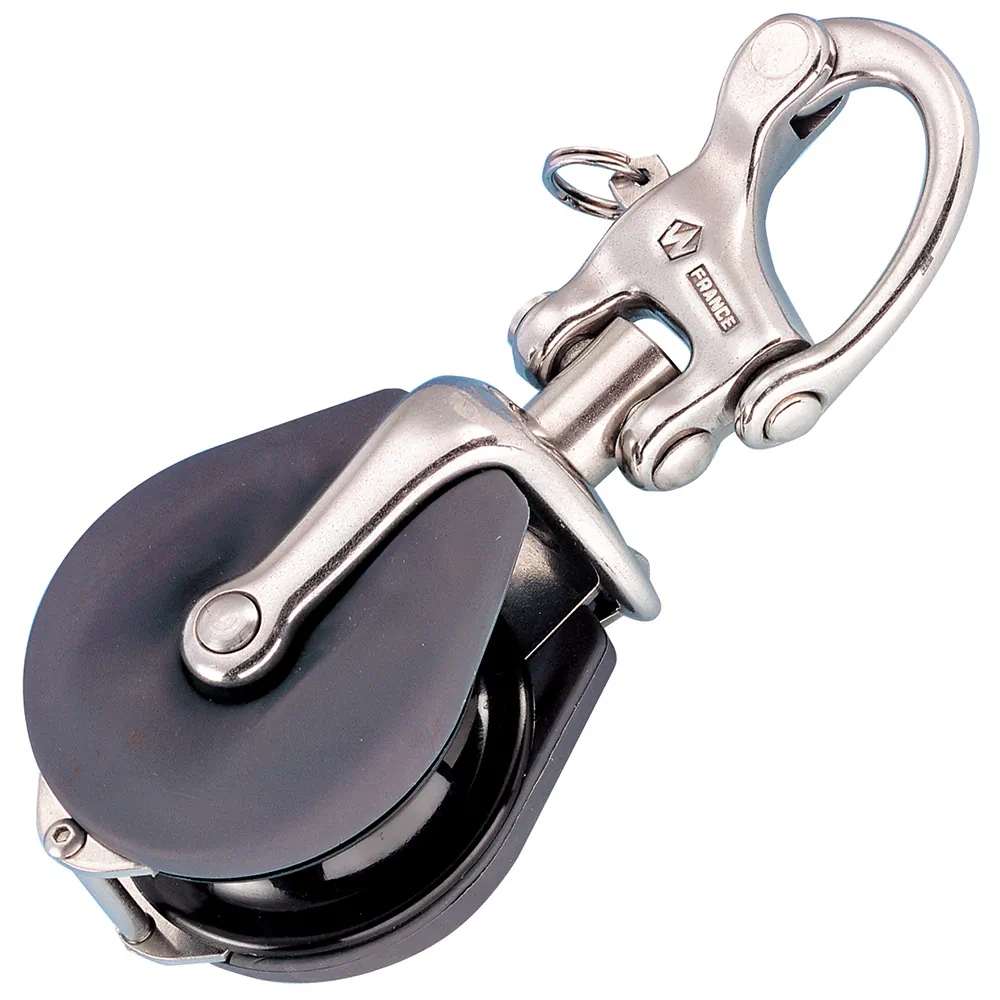

Wichard 18mm Snatch Block with Snap Shackle

Overview:

This snatch block is designed for maximum performance with a rope size of 18mm (23/32"). Its innovative snap shackle allows for free rotation, enhancing usability in various applications, from changing sheets to spinnaker sheet deflection.

Features:

• Free rotation provided by the snap shackle mechanism.
• Robust closing system for reliable use.
• Effortless opening by pulling the plunger pin.
• Durable elastomer molded cheeks protect against shock and scratches.

Applications:

• Ideal for changing sheets.
• Effective as spinnaker sheet deflector blocks.

Materials Used:

• Forged HR 17.4 PH stainless steel arm.
• Elastomer molded cheeks for added protection.
• Composite sheave for enhanced performance.

Product Specifications:

• Rope size: 18mm (23/32").
• Length: 155mm (6 7/64").
• Width: 59mm (2 21/64").
• Thickness: 49mm (1 59/64").
• Working Load: 1200kg (2640lb).
• Breaking Load: 2500kg (5510lb).
• Weight: 414g (0.913lb).

Important Notes:

• Working Load (WL) is applicable for nautical uses.
• Working Load Limit (WLL) for industrial use is calculated as Breaking Load / 5.

*Sold as an Individual unit.
