Wichard 01415 Wichard Captive Pin Long D Shackle Diameter 10mm 1332"
by Wichard Marine
| Price: | $95.80 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
only 2 left in stock order soon

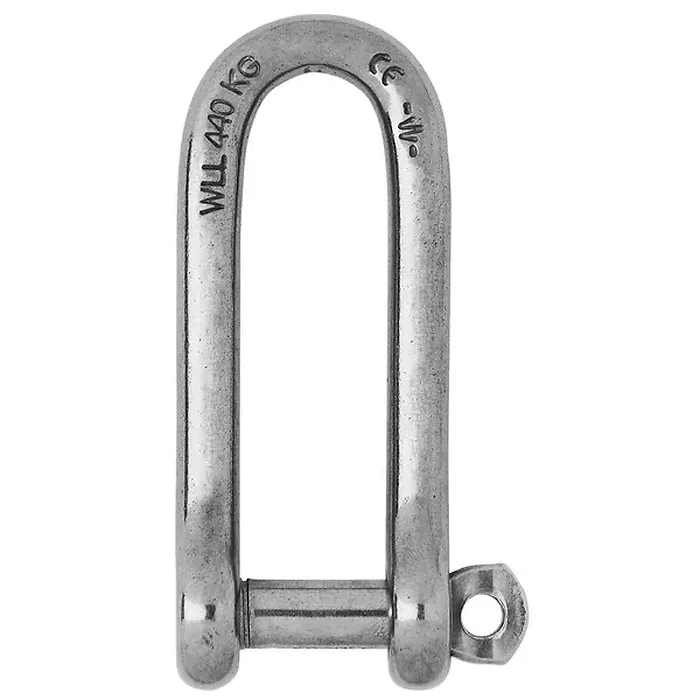

Captive Pin Long D Shackle - Diameter 10mm - 13/32"
Features:
- Captive pin long "D" shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
Applications:
- Standard applications of shackle requiring more length
- Attachment applications: blocks, head...
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 3350
- WLL (lb) 2290
- Breaking load (lb) 11460
- Weight (lb) 0.388

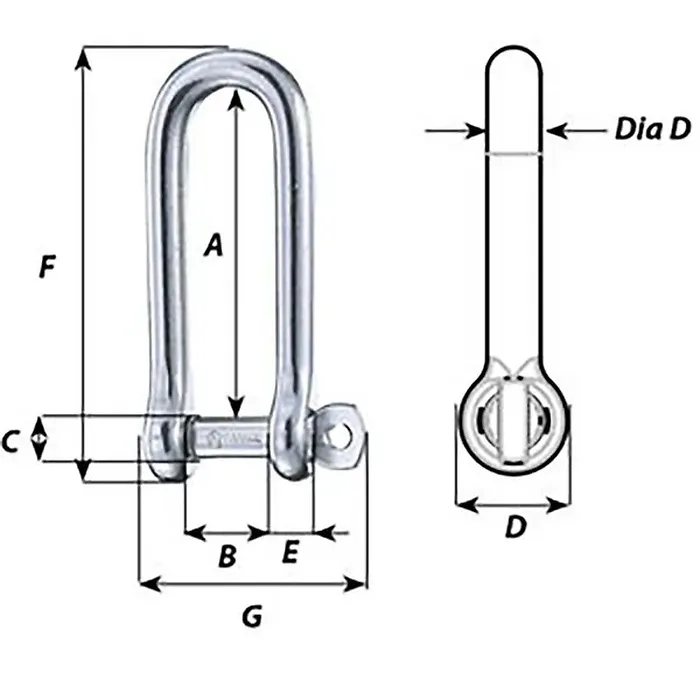

Dimensions (see 2nd image):
- A (inch) 3-5/64"
- B (inch) 25/32"
- C (inch) 7/16"
- D (inch) 53/64"
- D diameter (inch) 25/64"
- E (inch) 25/64"
- F (inch) 4-1/16"
- G (inch) 2-1/8"
Specifications
Captive Pin Long D Shackle - Diameter 10mm - 13/32"
Features:
- Captive pin long "D" shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
Applications:
- Standard applications of shackle requiring more length
- Attachment applications: blocks, head...
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 3350
- WLL (lb) 2290
- Breaking load (lb) 11460
- Weight (lb) 0.388
Dimensions (see 2nd image):
- A (inch) 3-5/64"
- B (inch) 25/32"
- C (inch) 7/16"
- D (inch) 53/64"
- D diameter (inch) 25/64"
- E (inch) 25/64"
- F (inch) 4-1/16"
- G (inch) 2-1/8"
