Wichard 02677 Wichard Hr Quick Release Snap Shackle With Swivel Eye 130mm Length 518"
by Wichard Marine

Price:  $337.39
MFG Part:  02677
UPC:  3587790026771
Condition:  New

Currently Unavailable.

Ships from and sold by Aztek Renew.

Added On: Mar 20, 2026 | Updated On: Apr 1, 2026 | Views: 2

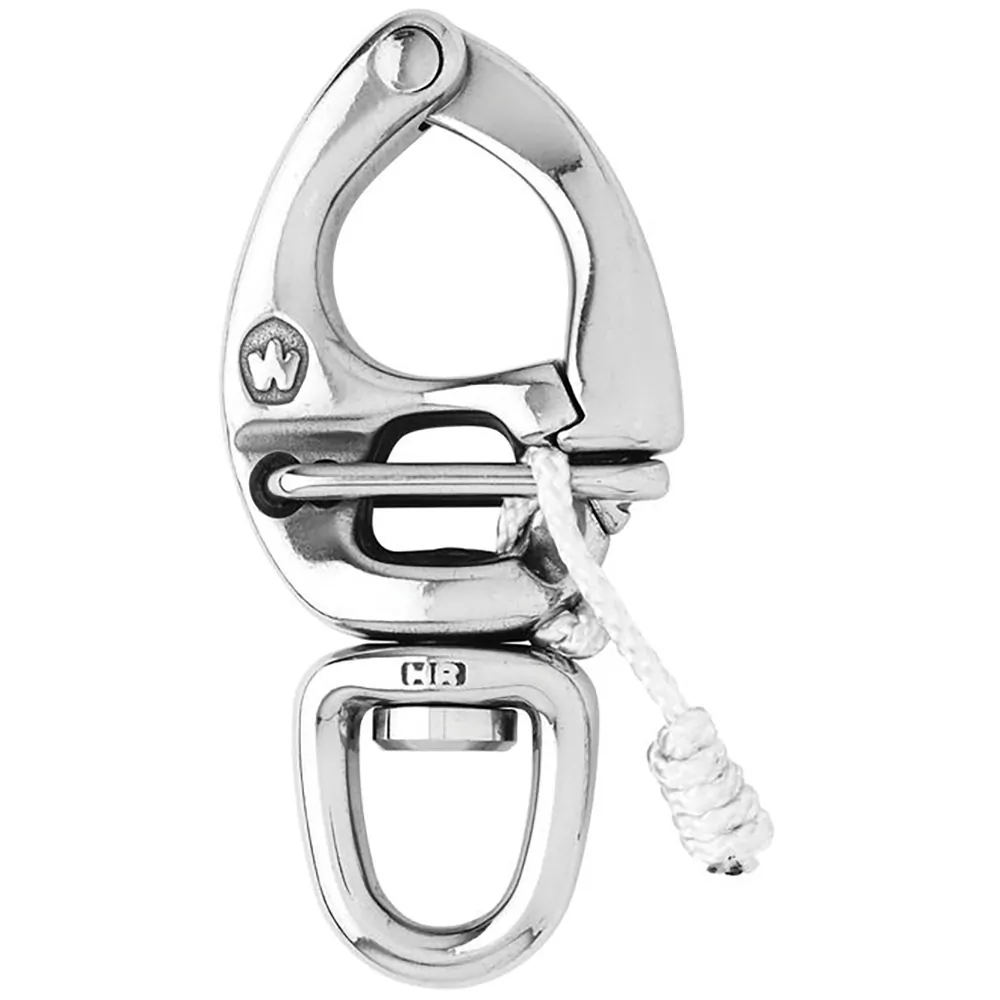

HR Quick Release Snap Shackle With Swivel Eye - 130mm Length - 5-1/8"

Features:

  • HR forged (17.4 PH) quick-release snap shackle with swivel eye
  • The opening is made by pulling the lanyard
  • Perfect to attach one sheet or halyard
  • Outstanding working and breaking loads
  • Free rotation of the snap shackle thanks to the swivel

Applications:

  • For spinnaker operations
  • Perfect for spinnaker sheets and halyards

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 7050 / (kg) 3200
  • Breaking load: (lb) 13880 / (kg) 6300
  • Weight: (lb) 0.818 / (g) 371

Dimensions:

  • A: (inch) 1 3/16" / (mm) 30
  • B: (inch) 25/32" / (mm) 20
  • Length: (inch) 5 1/8" / (mm) 130

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual


Specifications

  • HR forged (17.4 PH) quick-release snap shackle
  • Easy opening by pulling the lanyard
  • Outstanding working and breaking loads
  • Free rotation enabled by swivel design
