Wichard 01241 Wichard Selflocking Bow Shackle Diameter 4mm 532"
by Wichard Marine
| Price: | $24.98 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
only 2 left in stock order soon

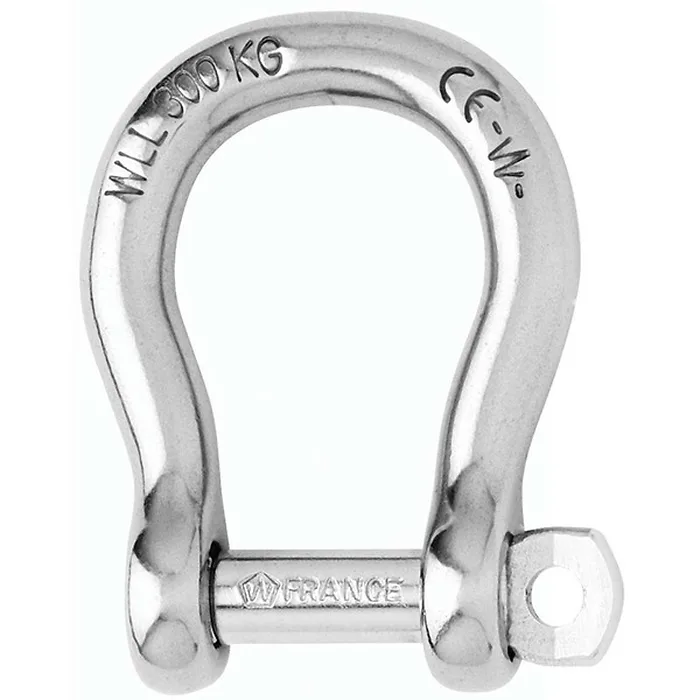

Self-Locking Bow Shackle - Diameter 4mm - 5/32"
Features:
- Self-locking bow shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking and batch number
Applications:
- To be used when ample room is required
- Possibility to attach several lines or cables
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 700
- WLL (lb) 300
- Breaking load (lb) 1540
- Weight (lb) 0.02

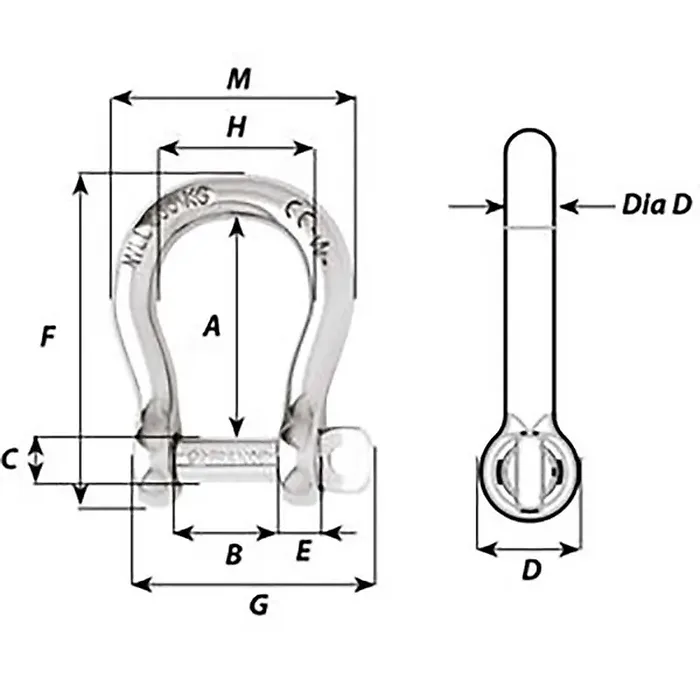

Dimensions (see 2nd image):
- A (inch) 45/64"
- B (inch) 5/16"
- C (inch) 5/32"
- D (inch) 5/16"
- D diameter (inch) 5/32"
- M (inch) 53/64"
Specifications
Self-Locking Bow Shackle - Diameter 4mm - 5/32"
Features:
- Self-locking bow shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking and batch number
Applications:
- To be used when ample room is required
- Possibility to attach several lines or cables
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 700
- WLL (lb) 300
- Breaking load (lb) 1540
- Weight (lb) 0.02
Dimensions (see 2nd image):
- A (inch) 45/64"
- B (inch) 5/16"
- C (inch) 5/32"
- D (inch) 5/16"
- D diameter (inch) 5/32"
- M (inch) 53/64"
