Wichard 1241W Wichard Selflocking Bow Shackle Diameter 4mm 532"
by Wichard Marine
| Price: | $22.79 |
| MFG Part: | 1241W |
| UPC: | 3587790012415 |
| Condition: | New |
Currently Unavailable.
Ships from and sold by Aztek Renew.
Added On: Mar 28, 2026 | Updated On: Apr 1, 2026 | Views: 3

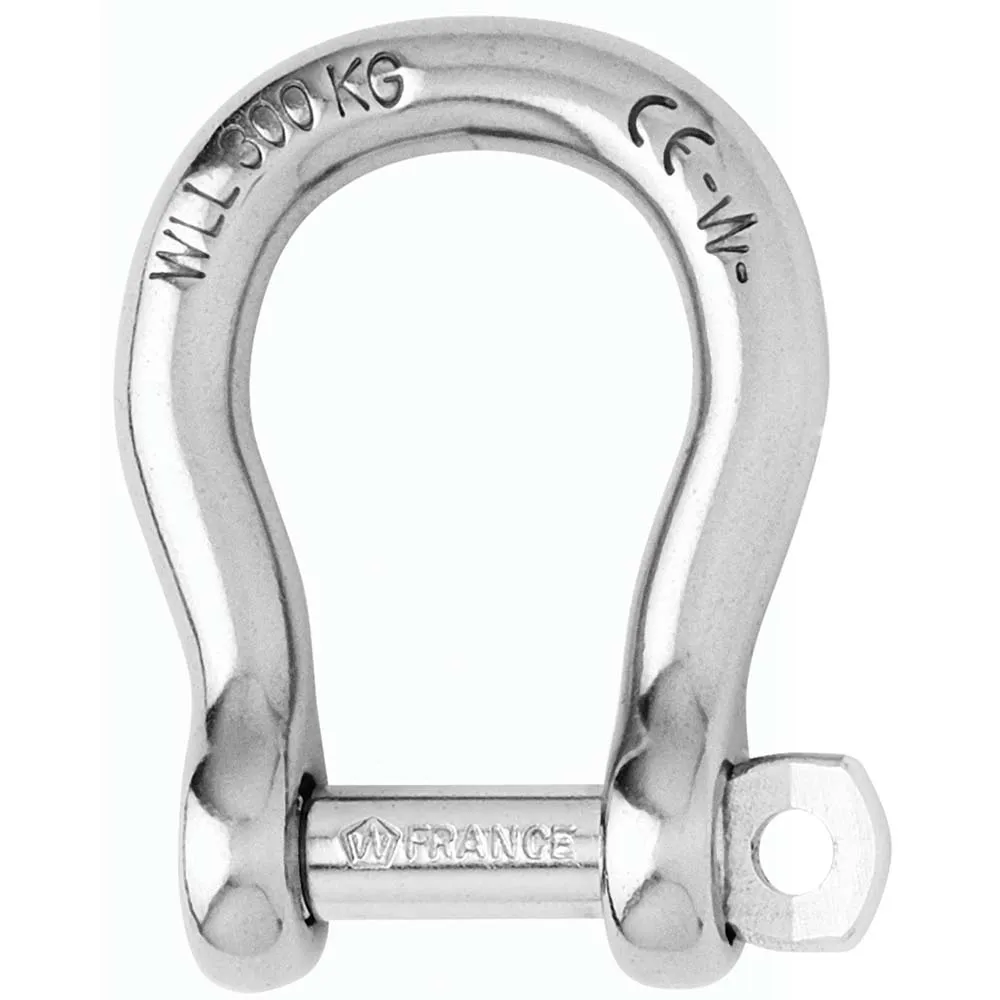

Self-Locking Bow Shackle - Diameter 4mm - 5/32"
Features:
- Self-locking bow shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking and batch number
Applications:
- To be used when ample room is required
- Possibility to attach several lines or cables
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 700
- WLL (lb) 300
- Breaking load (lb) 1540
- Weight (lb) 0.02

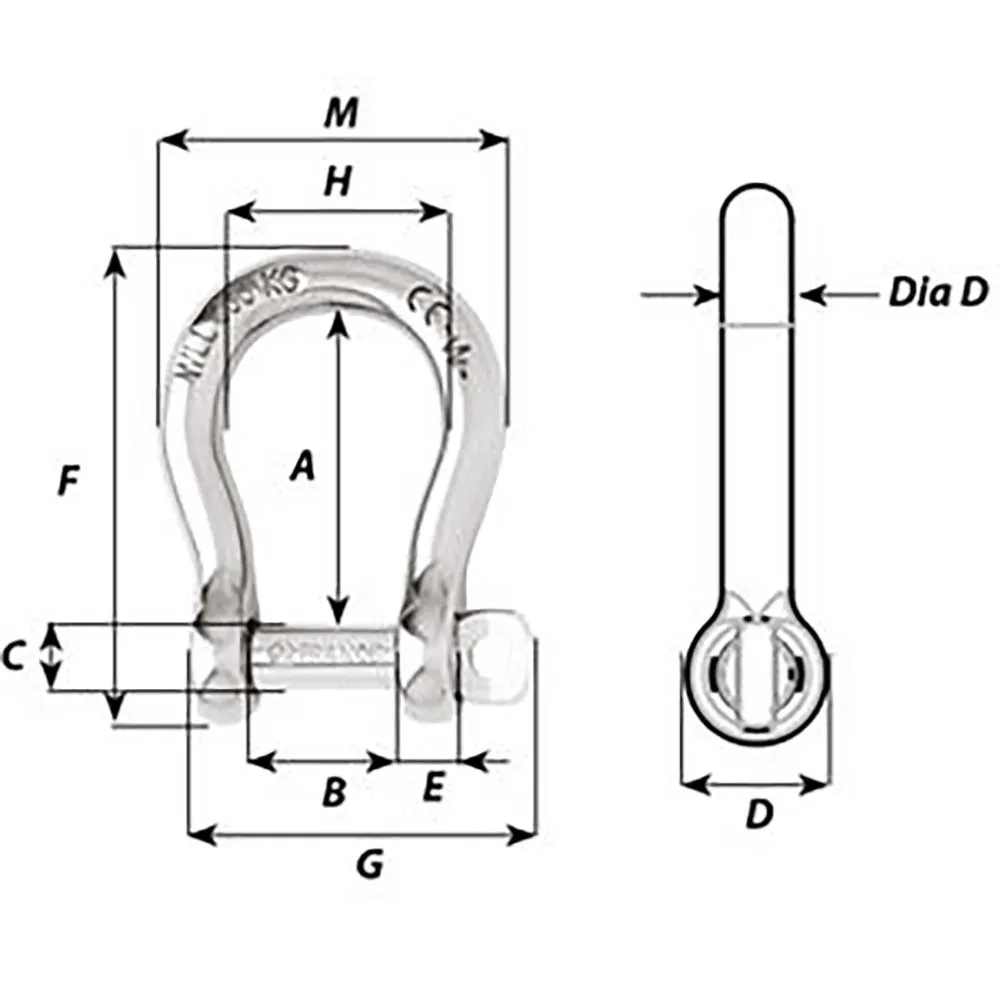

Dimensions (see 2nd image):
- A (inch) 45/64"
- B (inch) 5/16"
- C (inch) 5/32"
- D (inch) 5/16"
- D diameter (inch) 5/32"
- M (inch) 53/64"
