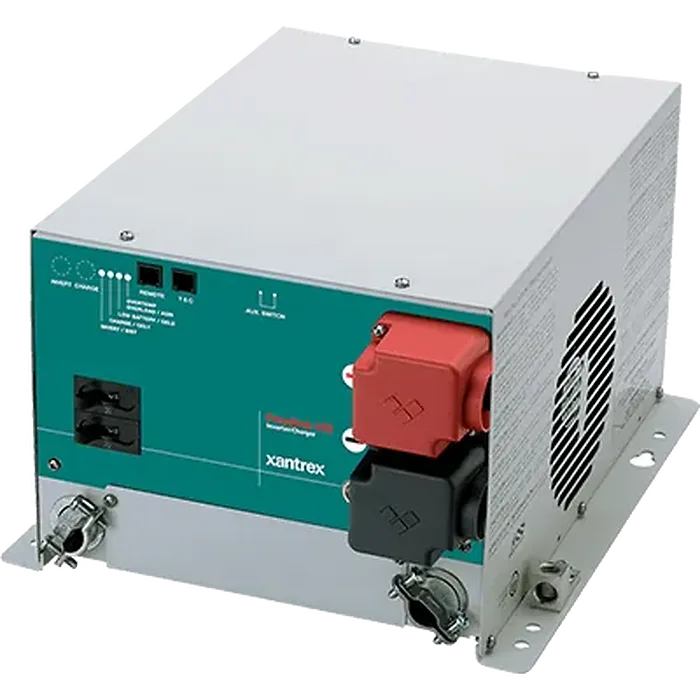

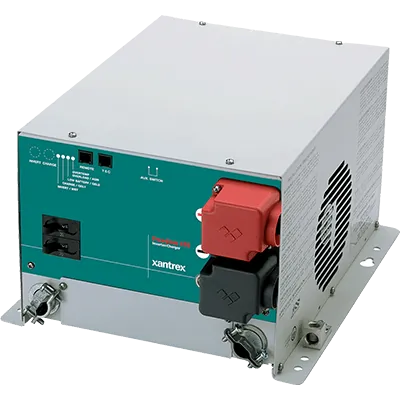

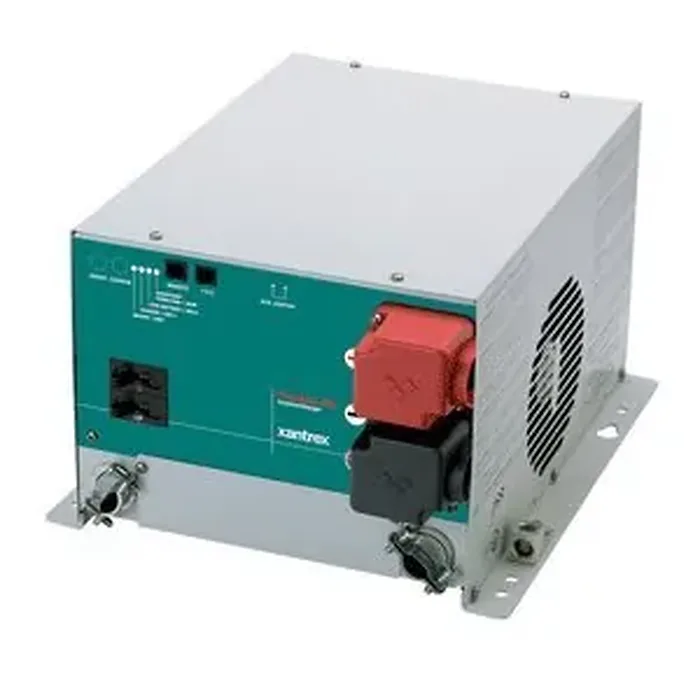

Xantrex 81-2022-12 Freedom 458 Invertercharger 2000w 12v
by Xantrex
| Price: | $1605.60 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
only 8 left in stock order soon
Freedom 458 Inverter/Charger
AC Power Inverter with High Surge Capability, 3-Stage Charger
With filtered modified sine wave output, the Freedom Inverter/Charger is capable of powering a wide range of devices from electrical equipment to appliances and electronics in your RV. It features temperature controlled multistage charging to quickly recharge your batteries, while protective features prevent excessive depletion of deep-cycle batteries.
For basic system monitoring and control of the inverter/charger, use the Freedom Basic Remote. For more advanced battery monitoring, pair your Freedom 458 with optional Link instrumentation.
Product Features
Specifications
- MSW AC power inverter with high surge capability
- Automatic 3-stage battery charger
- Temperature compensation with equalization stage for optimal battery charging
- Built-in transfer switch for automatic power source switching
- Power sharing to prevent AC input circuit breaker from tripping
- Customized settings programmable via the Freedom Basic Remote or Link 1000 panels
- Includes a battery temperature sensor
- 30-month warranty
Protection Features
- Over voltage and under voltage protection
- Over-temperature protection
- Overload protection
- Short circuit protection
Electrical Specifications - Inverter
- Output power (continuous): 2000W
- Surge power (AC amps): 50A
- Output frequency regulation: 60Hz
- Inverter voltage regulation: 120V +/-5% true RMS
- Output wave form: Modified sine wave
- Efficiency (full load): 85%
- Peak efficiency: 92%
- No load current draw (idle mode): 0.12A
- AC output connections: Dual - 20/15 Circuit Breakers
- AC input connections: Single
- AC transfer switch: 30A
Electrical Specifications - Charger
- Charge rate: 100A DC
- AC input voltage range: 90-130 VAC
- Battery voltage (nominal): 12 VDC
- Battery voltage range: 10.0-15.5 VDC
- Low battery cut-out: 10.0 VDC
- AC input (max. charge mode): 21A AC
- Bulk charge voltage: 14.3 VDC
- Float charge voltage: 13.4 VDC
- Equalize charge voltage: 16.3 VDC
- Charge control: 3-stage
- Battery type settings: Wet/Gel 1/Gel 2/AGM
- Equalization: Yes
- Temperature sensitive charging: Yes
