Fireboy-xintex CW63868 Xintex Gasoline Fume Detector Amp; Blower Control Wplastic Sensor Chrome Bezel Display
by Fireboy-Xintex
| Price: | $348.98 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
only 4 left in stock order soon
Gasoline Fume Detector w/Blower Control - Chrome Bezel - 12V
The Single Channel Gasoline Fume Detector is an effective means to monitor gasoline fumes in an engine compartment, fuel tank storage area or in other areas where gasoline fumes might accumulate.
Complete system includes Blower Control Relay, easy installation and precise monitoring.
Features:
- Simple Installation
- Audible and visual alarm to indicate LEL (Lower Explosive Level) presence
- Monitors one (1) single area
- Automatically activates bilge blower
Technical Specifications:
- Operating Temperature: -40° to 185°F (-40° to 85°C)
- Current Draw Nominal - 55mA
- Current Draw Maximum - 95mA
- Operating Voltage - 9 to 30V DC
- Alarm Horn - 68 dB
- Display Style - Round with Chrome Bezel
- Display Dimensions - 2-3/16" (5.6 cm) round
- Cutout Dimension - 2-1/16" (5.2 cm) round hole
In the Box:
- Fume Detector
- Fuel sensors x one (1)
- 20' Extension Cable x one (1)
- Blower Relay x one (1)
- Instruction manual
*Sold as an Individual
Specifications
Gasoline Fume Detector & Blower Control w/Plastic Sensor - Chrome Bezel DisplayDetect gasoline leaks early to prevent personal injury and possible explosions.Built in automatic blower control.
Features/Specifications:

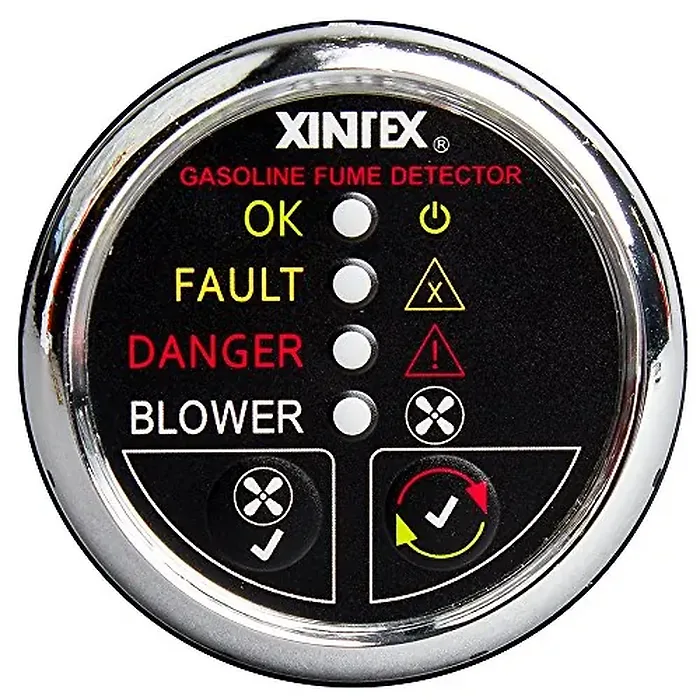

- 2-3/16 Round Chrome Display with LEDs & Silence/Test Button
- Automatic Ventilation Blower Control
- 68 dBA Alarm will sound & Red LED will light at 20% of the LEL
- Simple Installation
- 9-30VDC
- Operating Temperature: -40°F to 185°F (-40°C to
85°C) - Reverse Polarity Protected
- Current Draw @ 12VDC: Nominal:55mA / Maximum:95mA
