Arco 6267 Yamahacompatible Tilt Trim Motor 3 Wire 3bolt
by ARCO Marine

• ☆☆☆☆☆
• 1 customer reviews (jump to section)

In Stock.
only 3 left in stock order soon

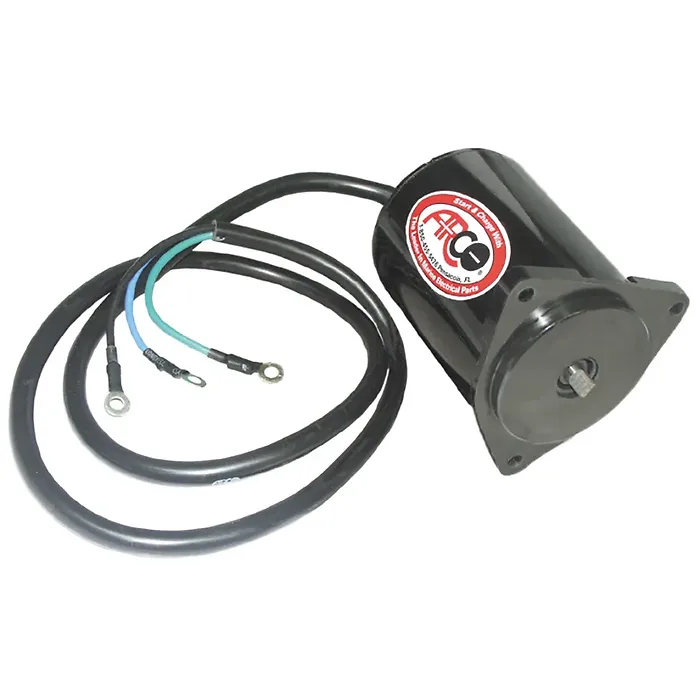

High-Quality Replacement Tilt Trim Motor for Yamaha

This tilt trim motor is designed to fit early model Yamaha outboards ranging from 70 to 200 HP. It features a 3-wire connection and a 3-bolt mount configuration, ensuring compatibility and ease of installation. The motor includes ring terminal ends and a robust 4-mm thick shaft blade with a 68.3-mm mounting collar, complete with an O-ring for a secure fit.

To ensure optimal performance, ARCO recommends cleaning all connections prior to installation, as any corrosion can lead to increased resistance and reduced motor efficiency.

Key Specifications:

• Fit for Early Model Yamaha 70, 90, 115, and 150-200 HP
• Dynamically tested for reliable out-of-the-box performance
• Induction case-hardened motor shafts for durability
• Epoxy powder coating for superior insulation

Warranty Information:

ARCO products come with a warranty against defects in materials and workmanship for 12 months under leisure use, and 90 days for commercial or racing applications. Register your product within 30 days of purchase for an additional year of warranty coverage on rotating electric products.

Replaces:

• YAMAHA Tilt Trim Motor 6E5-43880-01
• YAMAHA Tilt Trim Motor 6E5-43880-02
• YAMAHA Tilt Trim Motor 6H1-43880-00
• YAMAHA Tilt Trim Motor 688-43880-10
• YAMAHA Tilt Trim Motor 688-43880-11
• SIERRA Tilt Trim Motor 18-6259
• SIERRA Tilt Trim Motor 18-6821

This product cannot be returned to the original point of purchase. Please contact the manufacturer directly for any issues or concerns.
