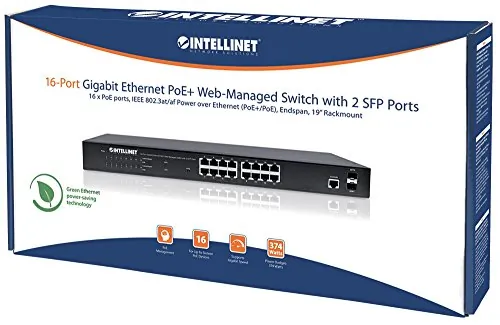

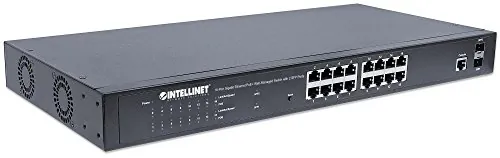

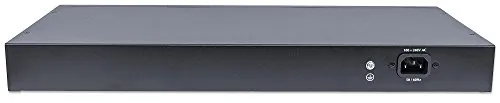

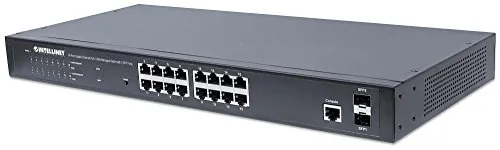

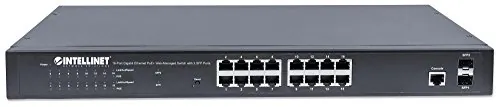

Intellinet 561198 16 Port Gigabit Poe+ Mgd Switch
by Intellinet
| Price: | $388.77 |
| MFG Part: | 561198 |
| UPC: | 766623561198 |
| Condition: | New |
Currently Unavailable.
Ships from and sold by Aztek Computers.
Added On: Jan 10, 2024 | Updated On: Jun 15, 2025 | Views: 39
Provides power and data connection for up to 16 PoE network devicesSave installation cost by delivering data and power over existing network cables10/100/1000 auto-sensing ports automatically detect optimal network speedsTwo small form-factor pluggable GBIC module slots (SFP)IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output portsPower output up to 30 watts per port*PoE power budget of 374 watts36 Gbps switch fabricSupports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras, etc.)Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protectionAll RJ45 ports with Auto-MDIX and NWay auto-negotiation supportComplies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specificationPoE management functions include PoE port settings, priority, power-on delay, scheduled PoE device restart and PoE device monitoringSNMP Management and Remote Monitoring (RMON)SNMP V1, V2C, V3 with RMON groups 1, 2, 3 & 9IPv4/v6 dual protocolSupports VLAN (tag-based and port-based)Provides IEEE 802.1x port-based securitySupports link aggregation (trunking)Supports bandwidth control per portSupports port mirroringSupports two types of QoS: port-based and DSCPBroadcast storm control with multicast packet rate settings512 kBytes buffer memorySupports 8k MAC address entriesSupports jumbo frames up to 9 kBytesSupports Rapid Spanning Tree/Spanning Tree protocolStore and forward switching architectureFull/half duplex operationIEEE 802.3x flow control for full duplexConfiguration via Web browser, Telnet or SSHLEDs for power, link/activity and PoETwo high-volume cooling fans ensure perfect ventilationThree-Year Warranty
