Bluewater 9057-1113-1 19mm Led Push Button Switch Waterproof Bluered
by BlueWater
| Price: | $65.65 |
| MFG Part: |
| Condition: |
In Stock.

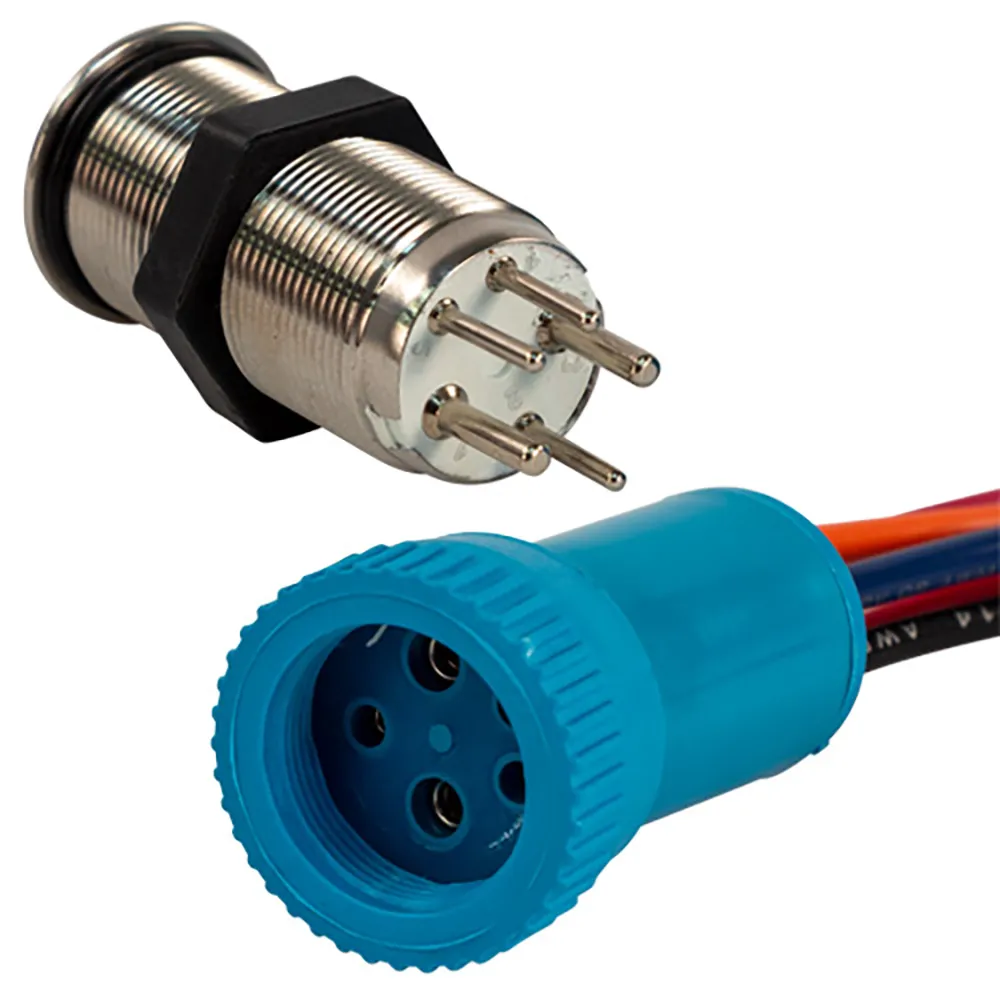

19mm LED Push Button Switch - Waterproof - Blue/Red
This high-quality stainless-steel push button switch adds a sleek modern accent to any dash panel. It features an "Off/On" contact setup and is designed for durability.
This switch boasts a waterproof rating of IP69K due to its specially designed body and included gasket. It shines with a blue LED backlight at night, which switches to red when the function is activated for clear visibility.
Installation Instructions:
Drill a 19mm hole into material up to 6mm thick. Connect the three color-coded contacts for the switch and the two LED contacts for power connection.
Specifications
- 1 ft. lead included
- Waterproof rating: IP69K
- Function: Off-On (standard contact)
- LED Color: Blue when off, Red when on
- Rated for: 15A / 12-24VDC
- Mechanical life: 50,000 cycles
- Electrical life: 10,000 cycles
