Bluewater 9057-2113-1 19mm Momentary Push Button Switch With Led Indicators
by BlueWater
| Price: | $63.15 |
| MFG Part: |
| Condition: |
In Stock.

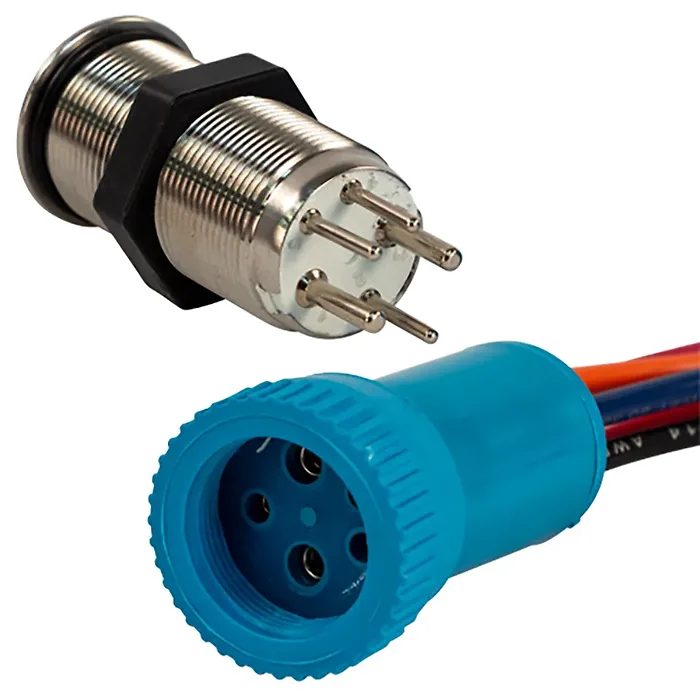

19mm Momentary Push Button Switch with LED Indicators
This sleek, stainless steel button enhances any dashboard while providing a modern touch. Featuring an “Off/(On)” momentary contact, this push button is both functional and stylish.
With a waterproof rating of IP69K, thanks to its innovative body design and included gasket, this switch is built to withstand the elements. At night, the switch is illuminated with an eye-catching blue LED, which turns red to clearly indicate when the function is active.
Installation Instructions:
Drill a 19mm hole in any material up to 6mm thick. Connect the three color-coded contacts for the button and the two for the LED to complete the installation.
Specifications
- 1 ft. lead for easy installation
- Waterproof with IP69K rating
- Blue LED backlighting changes to red when active
- Momentary contact switch rated for 15A at 12-24VDC
- Durable stainless steel construction
- Long mechanical life of 50,000 cycles
- Electrical life of 10,000 cycles
