Bluewater 9057-1113-4 19mm Waterproof Push Button Switch With Led Indicators
by BlueWater

• ☆☆☆☆☆
• 1 customer reviews (jump to section)

In Stock.

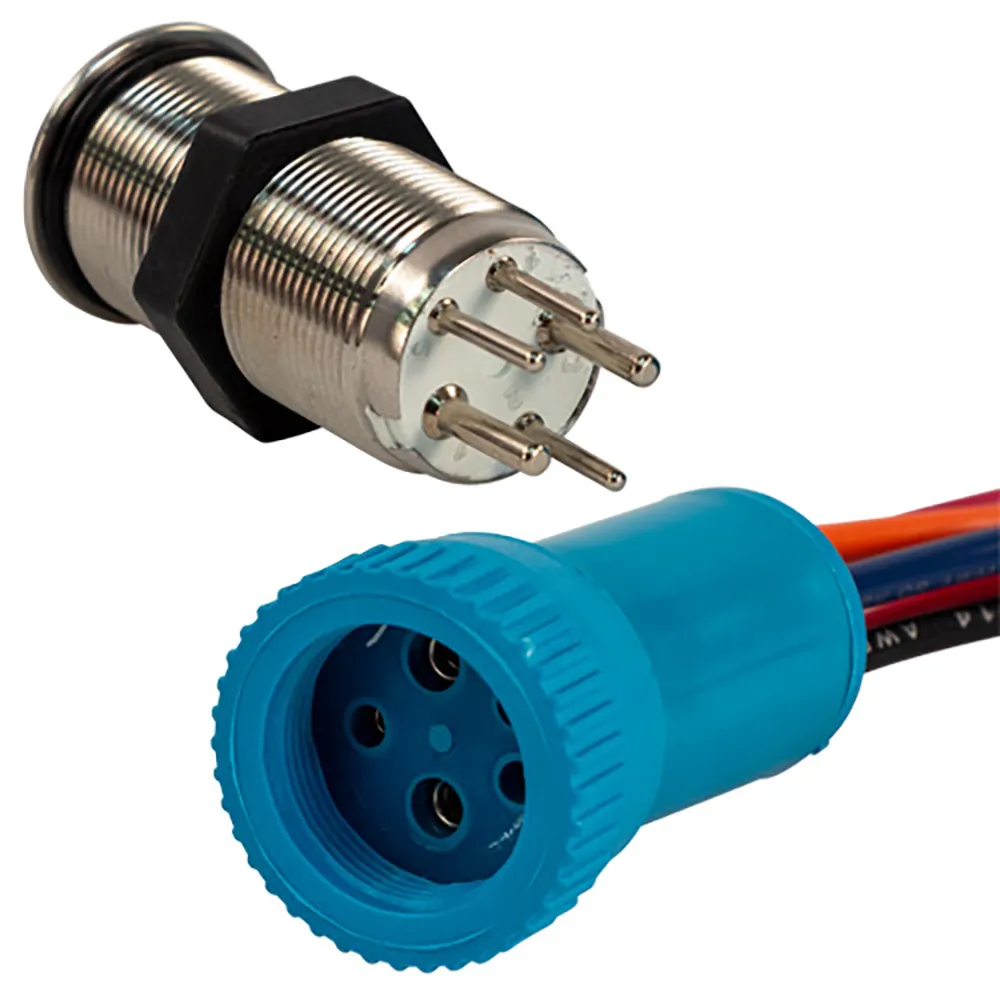

19mm Waterproof Push Button Switch with LED Indicators

This stylish push button switch features a durable stainless-steel design, perfect for enhancing any dashboard or control panel. It operates with a standard "Off/On" mechanism for reliable performance.

Designed to withstand tough environments, this switch offers a waterproof rating of IP69K, ensuring it remains functional even in harsh conditions. The included blue LED backlight provides excellent visibility at night, switching to red to indicate when the function is active.

Key Features:

• 4 ft. lead for easy installation

Technical Specifications:

• Function: Off-On
• LED Colors: Blue (off) / Red (on)
• Rear Mark Indicator: Red dot for easy identification
• Switch Rating: 15A @ 12 – 24VDC
• Material: High-quality stainless steel
• Mechanical Life: Up to 50,000 cycles
• Electrical Life: Up to 10,000 cycles

Installation Guidelines:

To install, drill a 19mm hole into any material that is up to 6mm thick. Connect the three contacts for the button (color-coded for safety), and then connect the two contacts for the LED.
