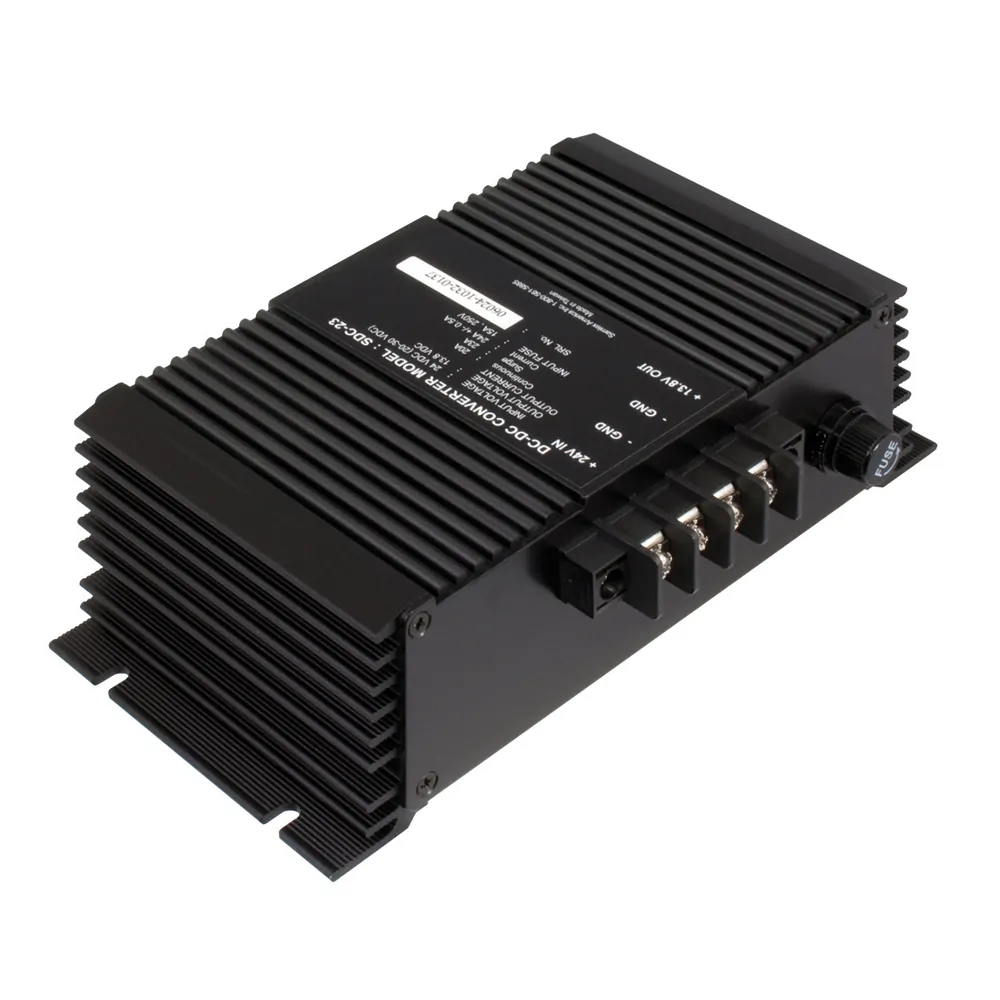

Samlex SDC-23 20a Nonisolated 24v To 12v Dcdc Converter
by Samlex America

• ☆☆☆☆☆
• 1 customer reviews

Currently Unavailable.

Ships from and sold by Aztek Computers.

Added On: Nov 7, 2023 | Updated On: Feb 8, 2026 | Views: 82

20A Non-Isolated 24V to 12V DC-DC Converter

This efficient switch-mode step-down DC-DC converter transforms an input voltage of 24 VDC (with a range of 20 VDC to 35 VDC) into a stable output voltage of 12 VDC (13.8 VDC) at 20 Amps. The converter is non-isolated, designed for negative ground systems, and includes multiple safety features such as overvoltage protection, short-circuit protection, and temperature-compensated current limiting.

Features:

• Advanced switch-mode design for high efficiency
• Versatile mounting options
• Compact and lightweight
• Reverse polarity protection for added safety
• Current limiting circuit to prevent overload
• Overvoltage crowbar circuit for extra protection
• Designed specifically for negative ground systems

Specifications:

• Input: 20-30 VDC
• Output: 13.8 VDC
• Amps: 20 Amps
• Weight: 2.2 lbs (1 kg)
• Dimensions: 7.75 x 4.75 x 2.4 in (19.7 x 12.1 x 6.1 cm)
• Warranty: 2 Year Limited

Applications:

• Earth moving equipment
• Heavy-duty trucks
• Buses
• Marine vehicles
• CB radios
• 12 Volt lighting systems
• AM/FM sound systems
