Bluewater 9059-1113-1 22mm Waterproof Bluered Led Push Button Switch 1' Lead
by BlueWater

• ☆☆☆☆☆
• 1 customer reviews (jump to section)

In Stock.

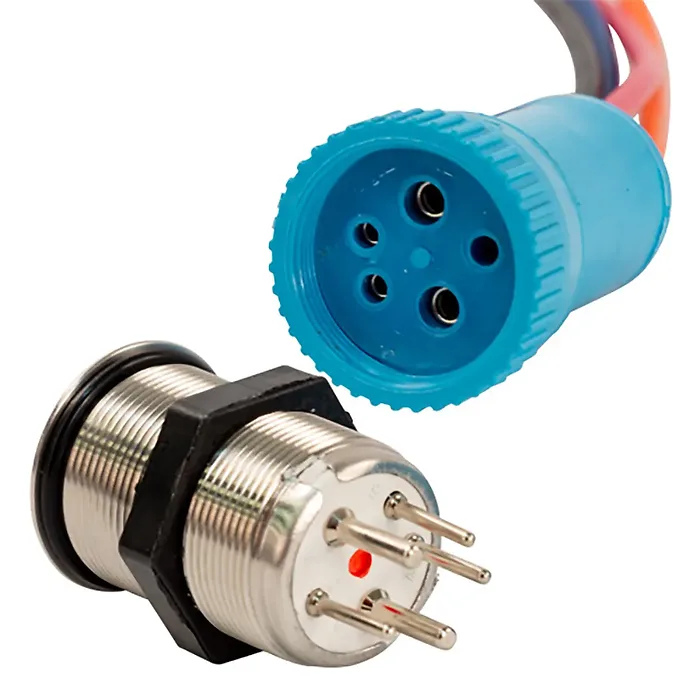

22mm Waterproof Push Button Switch - Blue/Red LED - 1' Lead

This stainless-steel plated metal push button adds a modern touch to any dashboard. Featuring a standard "Off/On" contact configuration, it's designed to withstand tough conditions with an IP69K waterproof rating. The switch is backlit with a blue LED for visibility at night, which changes to red to indicate when the function is activated.

Features:

• 1 ft. lead for easy installation

Specifications:

• Function: Off-On (standard contact)
• LED Colors: Blue (off), Red (on)
• Switch Rating: 15A / 12 – 24VDC
• Material: Stainless Steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Installation:

Drill a 22mm hole into any material up to 6mm thick. Connect the three contacts for the button (color-coded for safety). Lastly, connect the two contacts for the LED.
