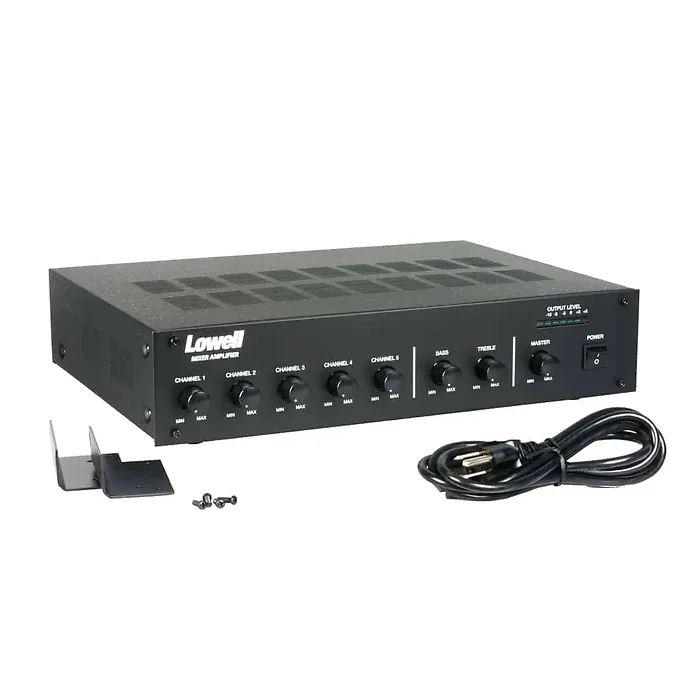

Lowell MA250 250w Mixer Amplifier With Rackmount Brackets
by LOWELL MANUFACTURING

Specifications

Mixer with 250W amplifier Powered via switchable 115 or 230 VAC @ 50/60Hz or 24VDC Features five channel volume controls Treble and bass controls Master volume control Main power switch LED display bank for output level Includes rackmount brackets Five input channels, switchable from XLR mic connector to AUX input dual combining RCA-phono connectors. Includes 4W, 8W, 25V, and 70V speaker outputs at a screw terminal strip. AUX-6 input channel with dual combining RCA phono connectors and rear level control. Main AC input protected by circuit breaker on rear panel. Un-switched (always on) AC outlet in rear is protected by separate circuit breaker. Mic-1 mutes channels 3-6. Separate telephone input with level control in rear mutes all other inputs. Dual RCA/phono parallel tape-out connectors and dual RCA-phono parallel PRE-OUT (preamp out) connectors in rear. Chassis-ground termination screw in rear 19 in. E.I.A. rackmount chassis
