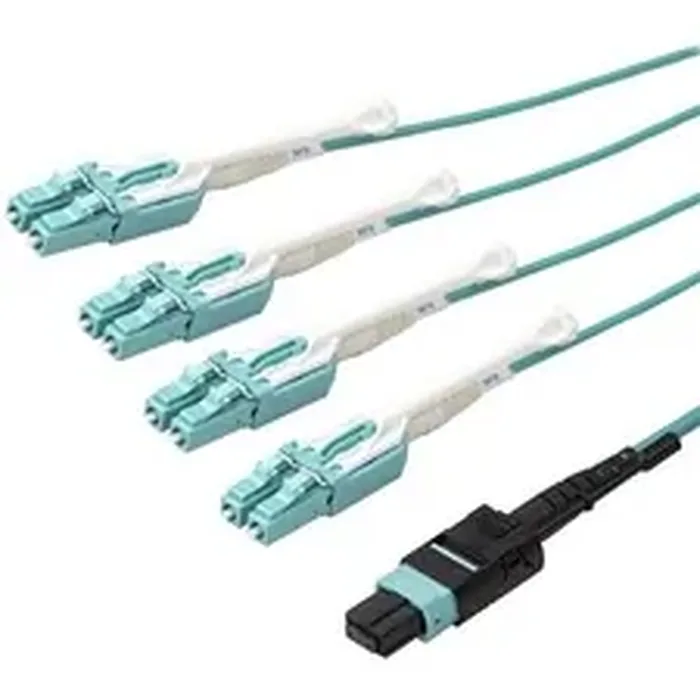

Startech MPO8LCPL3M 3m 9.8ft Mtpfpc To 4x Lcpc Duplex Breakout Om3 Multimode Fiber Optic Cable
by STARTECH
| Price: | $64.52 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
This MPO/MTP to 8x LC breakout cable lets you fan out a single 40Gbps connection from a 40GBase-SR4 QSFP+ transceiver to four 10Gbps LC SFP+ transceivers. The push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand without using additional tools. Plus, the slim uniboot design of the LC connectors saves space and improves cable management. FeaturesThe MPO cable is housed in a plenum-rated jacket and is ideal for in-wall installations or anywhere CMP fire rating is requiredEach OM3 fiber cable has been individually tested for insertion loss and loss. The full test report is included in each cable bagThe MPO8LCPL10M from StarTech.com is backed by a lifetime Uniboot ConnectorSpecificationsCable Type: Fiber OpticSize: 3 mCable Characteristic: Patch CableFiber Optic Mode: Multi-modeCore/Cladding Diameter: 50/125 mCable Length: 32.80 ftConnector on First End: 1 x MTP/MPO Female NetworkDevice Supported: Network DeviceDevice Supported: Patch PanelDevice Supported: HubDevice Supported: SwitchDevice Supported: Media ConverterDevice Supported: RouterData Transfer Rate: 5 GB/sWeight: 0.14 lbs- SKU: ISTR105209
Specifications
Manufacturer:StarTech.com
Manufacturer Part Number:MPO8LCPL3M
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:Fiber Optic Patch Duplex Network Cable
Marketing Information:This MPO/MTP to 4x LC breakout cable lets you fan out a single 40Gbps connection from a 40GBase-SR4 QSFP+ transceiver to four 10Gbps LC SFP+ transceivers.
The push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand, without having to use additional tools. Plus, the slim uniboot design of the LC connectors saves space and improves cable management.
The MPO cable is housed in a plenum-rated jacket and is ideal for installations where CMP fire rating is required.
Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.
The MPO8LCPL3M from StarTech.com is backed by a lifetime warranty.
Packaged Quantity:1
Product Type:Network Cable
Cable Type:Fiber Optic
Cable Characteristic:Patch Cable
Fiber Optic Mode:Multi-mode
Core/Cladding Diameter:50/125 µm
Cable Length:9.84 ft
Connector Type on First End:MTP/MPO Network - Female
Connector on First End Details:1 x MTP/MPO Network - Female
Connector Type on Second End:LC Network - Male
Connector on Second End Details:8 x LC Network - Male
Features:
- Uniboot Connector
- Push-Pull Tab
Jacket Type:
- Plenum
- CMP
Device Supported:
- Network Device
- Patch Panel
- Hub
- Switch
- Media Converter
- Router
Data Transfer Rate:40 Gbit/s
Product Color:Aqua
Weight (Approximate):0.12 lb
Environmentally Friendly:Yes
Environmental Certification:
- RoHS
- WEEE
Country of Origin:China
Limited Warranty:Lifetime
