Egis 8023 4circuit Battery Terminal Fuse Block
by Egis Mobile Electric
| Price: | $39.63 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
only 4 left in stock order soon

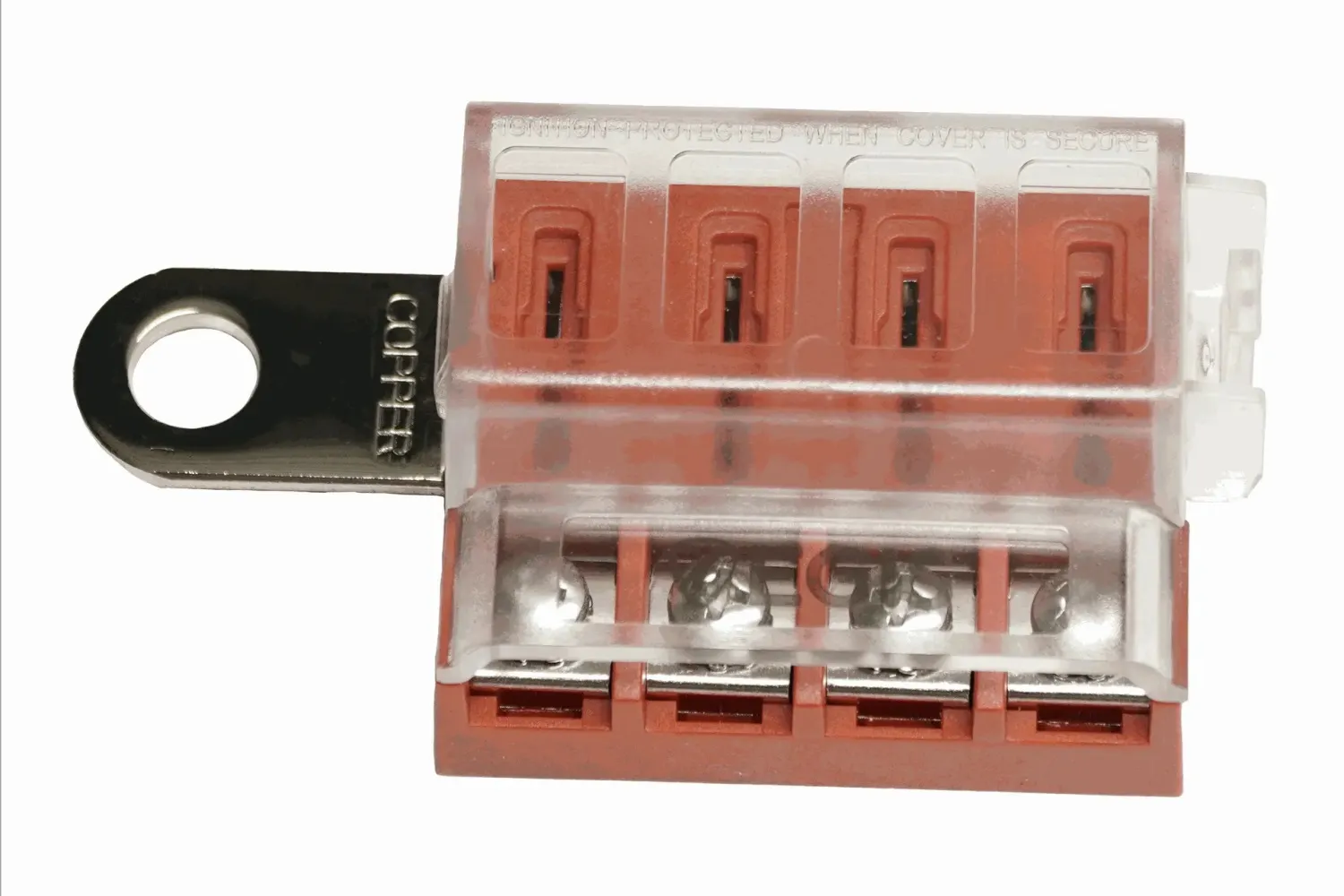

4-Circuit Battery Terminal Mount Fuse Block
This compact battery terminal mount inline fuse block is perfect for tight installation spaces. It is designed for harsh environments with stainless steel self-locking hardware and offers optional weather-proof labels in standard or customized options.
It protects branch circuits by accepting ATO style fuses ranging from 1 through 40 Amps. Built with high-temperature materials, its robust construction allows for mounting anywhere on the vehicle while supporting SAE circuit protection standards for thermal and short circuit events.
The fuse block includes a latching protective cover with integrated label recesses for easy circuit identification, along with circuit identification labels for simple diagnosis.
Specifications| CONTINUOUS CURRENT Per Circuit (AMPS) | 30 |
| Maximum Current (Entire Block) Amps | 100 |
| Nominal Voltage | 12/24Vdc |
| MAX VOLTAGE (VDC) | 60 |
| Hardware Material | Stainless Steel |
| Input Terminal Size | M5-0.8 |
What's in the Box:
- 4-Circuit Fuse Block
- Circuit identification labels
Specifications
- Compact inline design with single side wire entry
- Durable construction with stainless steel hardware
- Weather-proof label options available
- Accepts ATO style fuses from 1 to 40 Amps
- Supports SAE Circuit Protection Standards
- Latching cover with label recesses for easy identification
