Trident 365-0566-FT 516" Low Permeation A115 Marine Fuel Hose Black
by Trident Marine

• ☆☆☆☆☆
• 1 customer reviews (jump to section)

Currently Unavailable.

5/16" Low Permeation A1-15 Marine Fuel Hose - Black

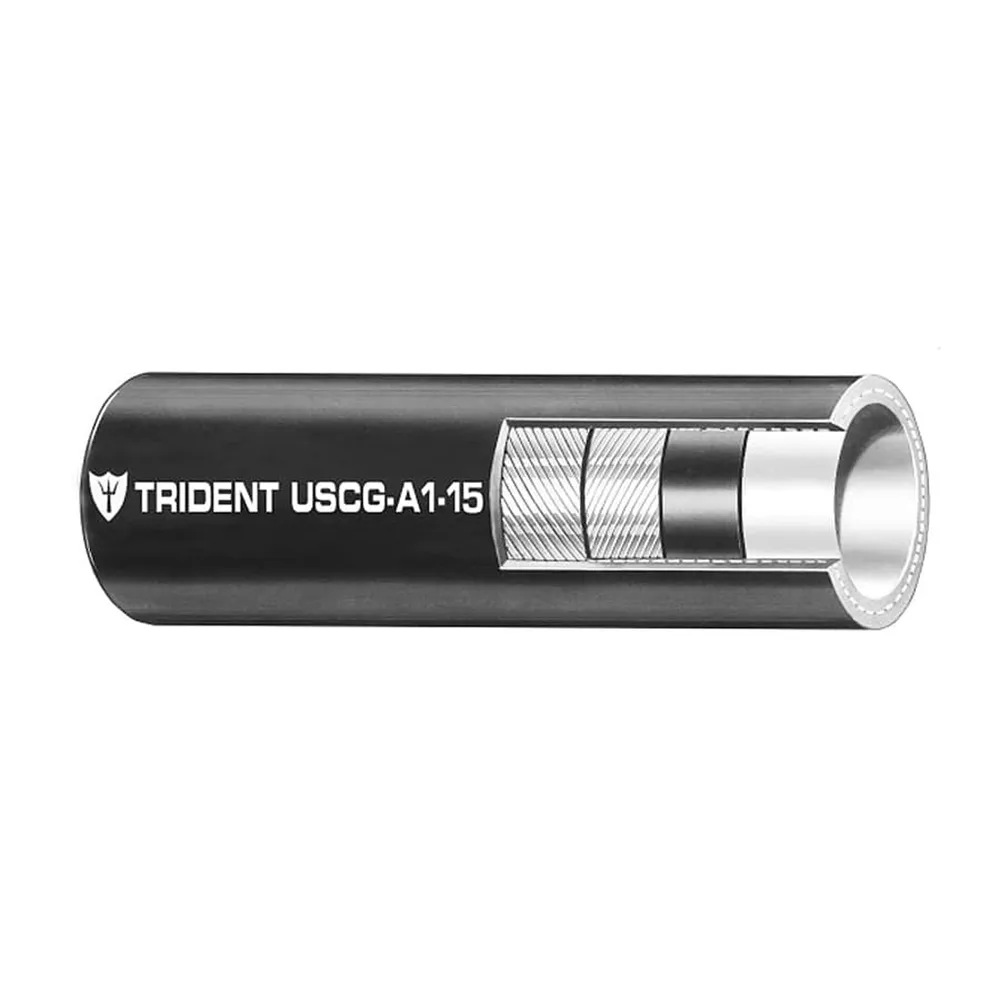

The Trident Barrier Lined A1-15 Fuel Hose is suitable for both gasoline (including ethanol blends up to 85%) and diesel (including biodiesel blends up to B100). Engineered with a superior formulation resistant to fuel, fire, and aging, this hose features a unique "Barrier Liner" that prevents fuel from direct contact with rubber, enhancing durability and performance.

Applications:

• Marine Fuel Hose (distribution, return, vent, and transfer)
• Compatible with all marine fuels including gasoline, alcohol blends (CE-10), diesel, and biodiesel

Specifications:

• Inner Diameter: (inch) 5/16" | (mm) 7.92
• Outer Diameter: (inch) 0.611 | (mm) 15.5
• Burst Pressure: (psi) 400 | (mpa) 2.76
• Working Pressure: (psi) 100 | (mpa) 0.69
• Bend Radius: (inch) 1.75" | (mm) 44.5
• Weight: (lb/100 ft.) 13.3 | (kg/m) 0.198
• Permeation Rate: <10 (Standard is 10g/m2/24 hrs (CE10)
