Pacer TDT04F-8RP 8 Position Dt Deutsch Receptacle Repair Kit 1418 Awg
by Pacer Group

• ☆☆☆☆☆
• 1 customer reviews (jump to section)

In Stock.

8 Position DT Deutsch Receptacle Repair Kit - 14-18 AWG

This DT Deutsch Receptacle Repair Kit is designed for 14-18 AWG applications, featuring size 16 contacts ideal for use with 14 AWG wires. The kit provides the flexibility to use multiple sizes of 16 contacts (18-14 AWG), each with a continuous capacity of 13 amps, within a single shell. The enclosed connectors ensure reliable performance in a variety of settings, with additional components available for broader applications.

Key Features:

• Includes all necessary components to assemble a connector
• One to two extra terminals included
• Cavity plugs provided to seal open circuits

Applications:

• Wire-to-wire connections
• Designed for rugged reliability in enclosed connectors

Compliances:

• Ingress Protection (IP) Level: IP68 and IP6K9K
• EU RoHS/ELV compliant
• Standard UL-94 Recognized

Characteristics:

• Wedge locks ensure proper contact alignment and retention
• Redundant silicone seals enhance sealing performance
• Contacts are hand-insertable and removable

Technical Specifications:

• Number of Cavities: 8
• Housing Material: Rectangular plastic receptacle reinforced with glass fiber
• Contact Size: 16, rated for 13 amps
• Wire Size Compatibility: 14 AWG
• Holds: Pins
• Operating Temperature Range: -55°C to 125°C

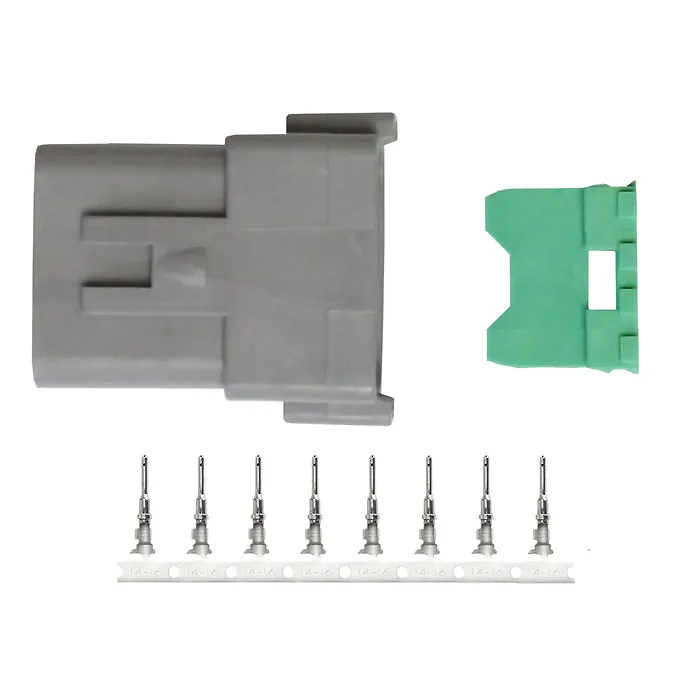

Package Contents:

• (1) 8 position receptacle
• (1) 8 position wedge lock
• (10) pins
• (4) cavity plugs
