Specifications
Form Factor

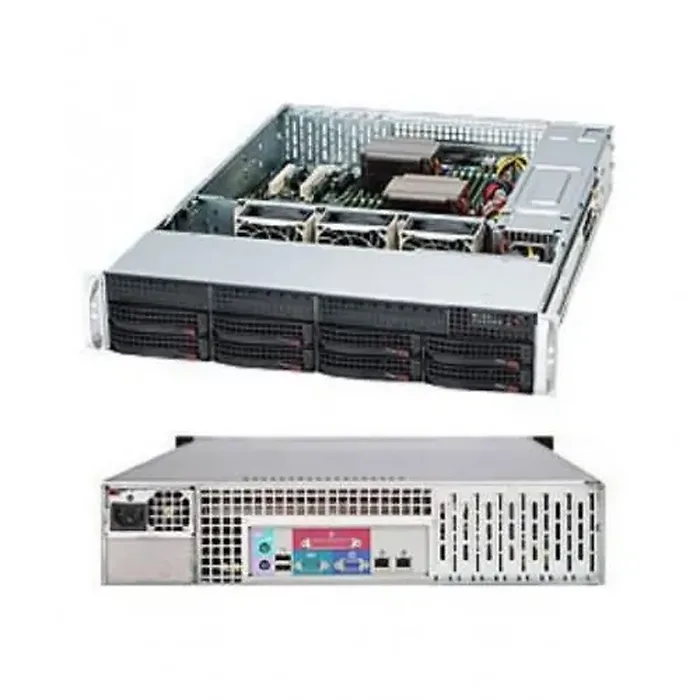

2U chassis support for motherboard size - 12" x 13", 13.68" x 13" E-ATX and 12" x 10" ATX
Processor Support
Supports dual, single Intel / AMD processors Available Colors
Black
Expansion Slots
7x low-profile full-length expansion slots
Drive Bays
Hot-swap
8x 3.5" SAS / SATA Hot-swap drive trays
SAS or enterprise SATA HDD only recommended SAS / SATA Backplane
1x 2U SAS / SATA backplane w/ Enclosure Management
Peripheral Drives
DVD-ROM
Slim DVD-ROM drive (Optional) Front Panel
Buttons
Power On/Off button
System Reset button
LEDs
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED
Power fail LED
Ports
2x USB Ports + DB9 COM Port System Cooling
Fans
3x 80mm 6300 RPM hot-swap PWM fans
System Monitoring
Chassis intrusion switch Power Supply with Digital Switching Control and PMBus 1.2
600W AC power supply w/ PFC (24-pin)
AC Voltage
100-240 V, 50-60 Hz, 7.5 Amp max
+5V
18 Amp
+5V standby
3 Amp
+12V
49 Amp
-12V
0.5 Amp
+3.3V
15 Amp
Certification
80PLUS Platinum Regulatory (Power Supply)
Power Supply Safety / EMC
USA - UL listed
Canada - CUL listed
Germany - TUV Certified
EN 60950/IEC 60950-Compliant
CB Report
CCC Certification Item Dimension (L"xW"xH"):
25.5 x 17.2 x 3.5
Weight:
50 lb
Warranty Information:
1 Year
