Specifications
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p Interface
8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m) Fan Quantity
Fanless Power Supply
External Power Adapter(Output: 48VDC / 1.25A) Power Consumption
Maximum (PoE on): 65.2W (220V/50Hz)
Maximum (PoE off): 5.2W (220V/50Hz) PoE+ Ports(RJ45)
Standard: 802.3 af compliant
PoE Ports: Port 1- Port 4
PoE Power Budget: 55W Packet Forwarding Rate
11.9Mpps MAC Address Table
4K Packet Buffer Memory
1.5Mb Jumbo Frame
15KB Quality of Service
Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control L2 Features
IGMP Snooping
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention VLAN
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN Management
Web-based GUI
Easy Smart Configuration Utility Transmission Method
Store-And-Forward Certification FCC, CE, RoHS Package Contents

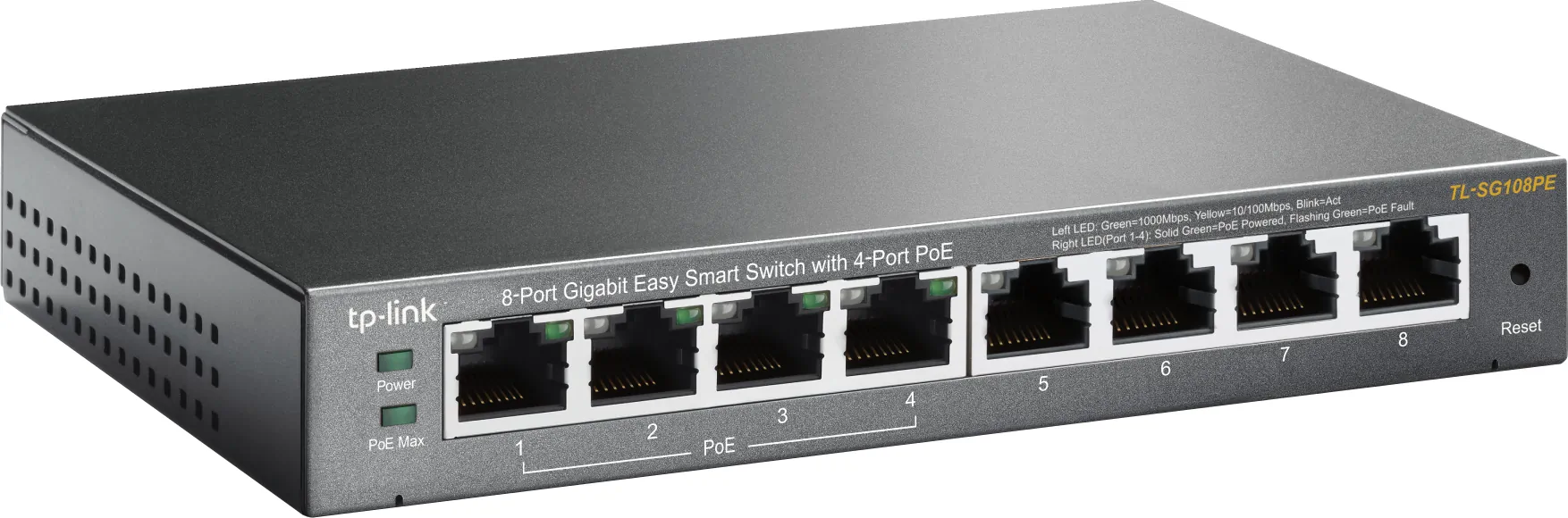

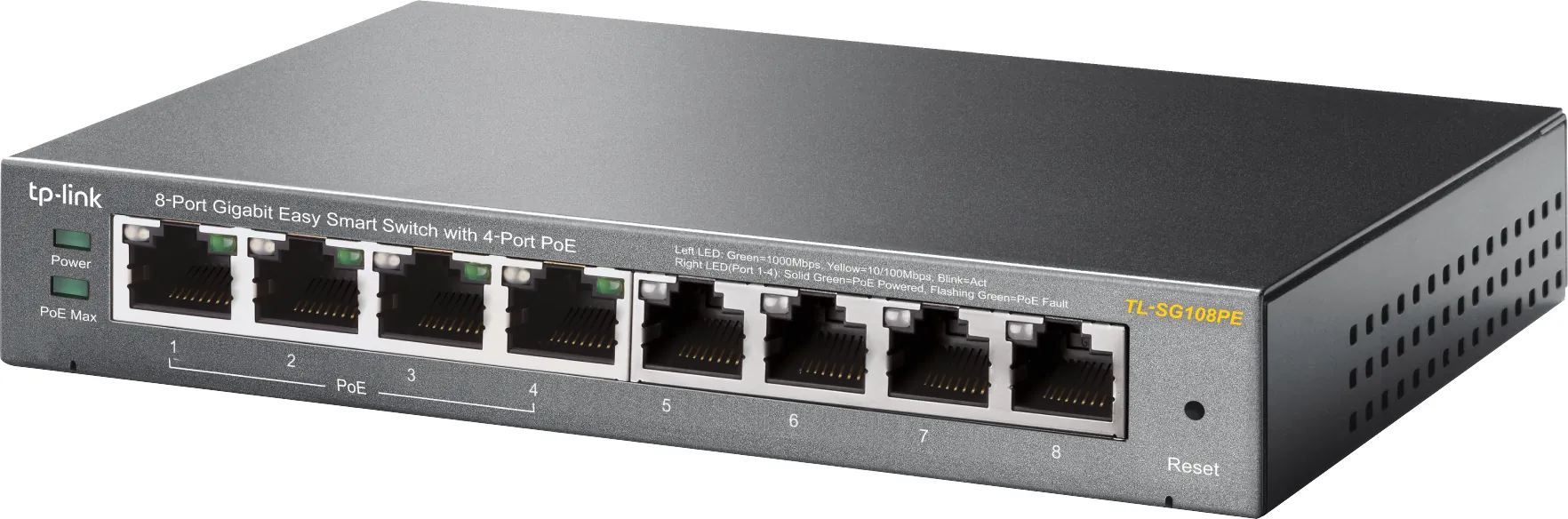

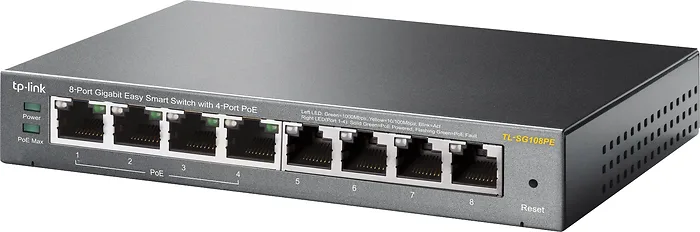

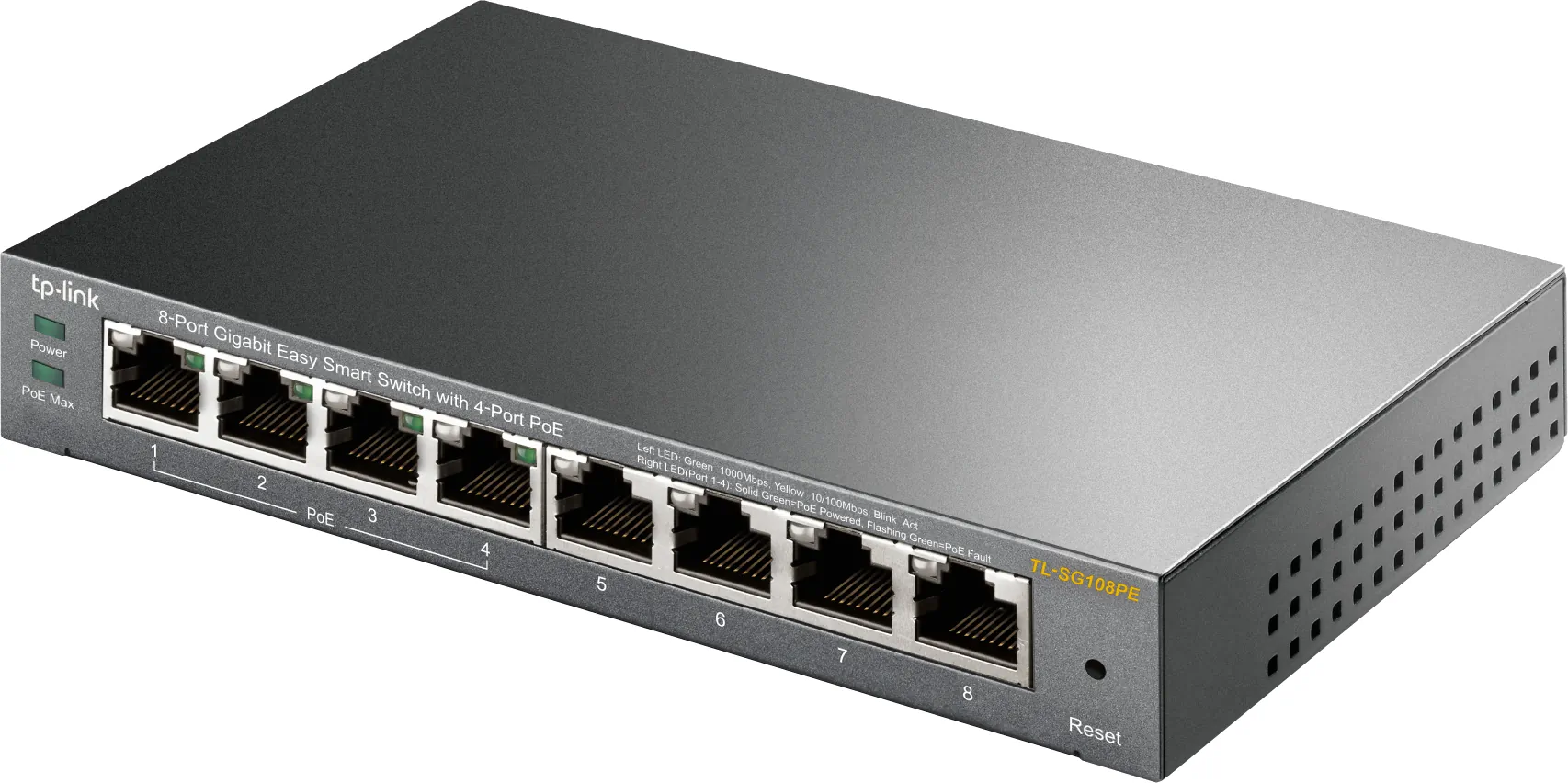

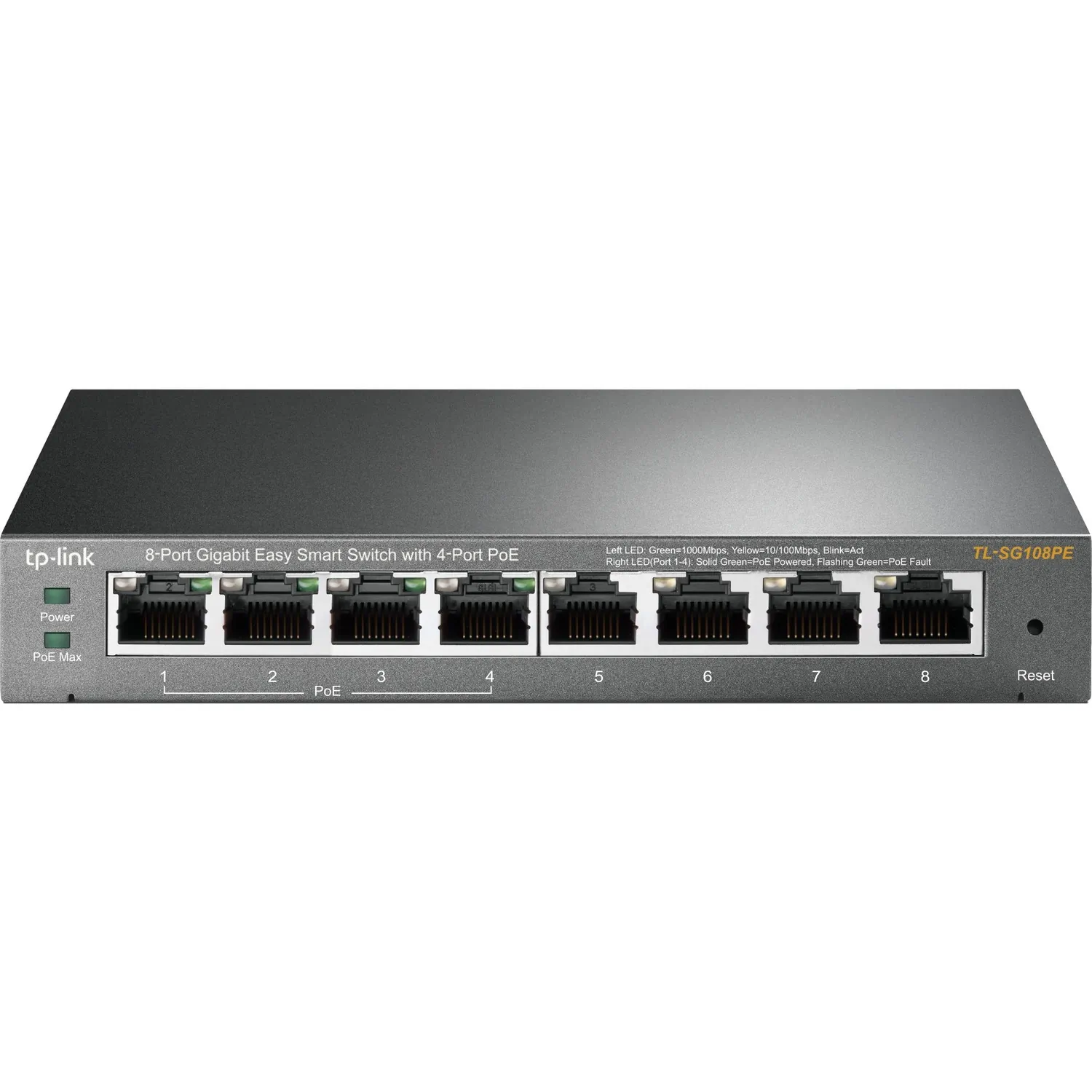

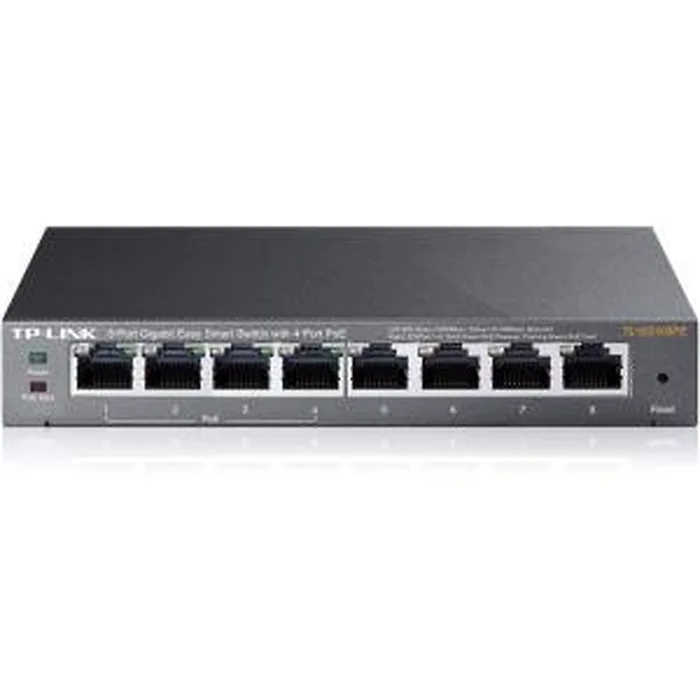

TL-SG108PE
Power Adapter
Installation Guide
Resource CD
Rubber Feet System Requirements
Microsoft Windows XP/Vista/7/8/8.1/10 for running Utility Environment
Operating Temperature: 0oC to 40oC (32oF to 104oF)
Storage Temperature: -40oC to 70oC (-40oF to 158oF)
Operating Humidity: 10 percent to 90 percent RH non-condensing
Storage Humidity: 5 percent to 95 percent RH non-condensing
