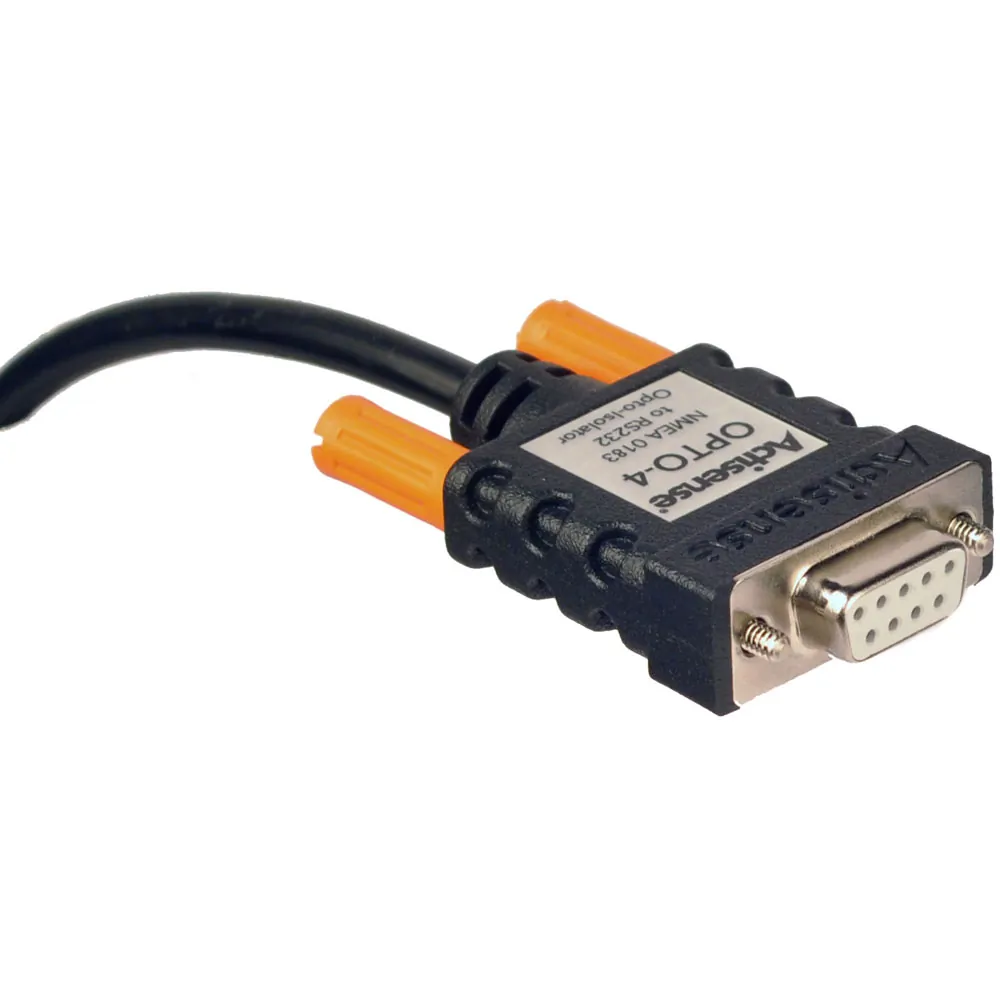

Actisense OPTO-4 Isolated Nmea To Rs232 Adapter
by Actisense
| Price: | $147.50 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
Actisense Isolated NMEA to RS232 Adapter
Safely connect your NMEA 0183 systems to a PC with the OPTO-4 Adapter, designed to protect against ground loops and potential damage. This bi-directional RS422 to RS232 interface ensures reliable communication and provides isolation from hazardous voltages.
Ideal for both commercial and noisy environments, the OPTO-4 is easy to install, powered directly from the PC, and features a compact design that fits into tight spaces. With enhanced water resistance and a focus on safety, it’s a perfect solution for system builders and tech enthusiasts alike.
Specifications
- NMEA 0183 & RS232 compliant
- Full duplex (two-way) communication
- Supports all baud rates up to 115200 Baud
- Overmoulded case for compact installations
- Transient protection on the PC output line
- Opto-isolation providing 2000 volt protection
- Reverse voltage protection on the input line
- Current limiting feature to prevent cable faults
- Port-powered; draws power from the PC
- Fully shielded for superior noise rejection
