Startech PCI2S4851050 Add Two Rs422485 Serial Ports Through A Standard Or Low Profile Pci Expansion S
by STARTECH

Specifications

General Information

Manufacturer:StarTech.com
Manufacturer Part Number:PCI2S4851050
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com

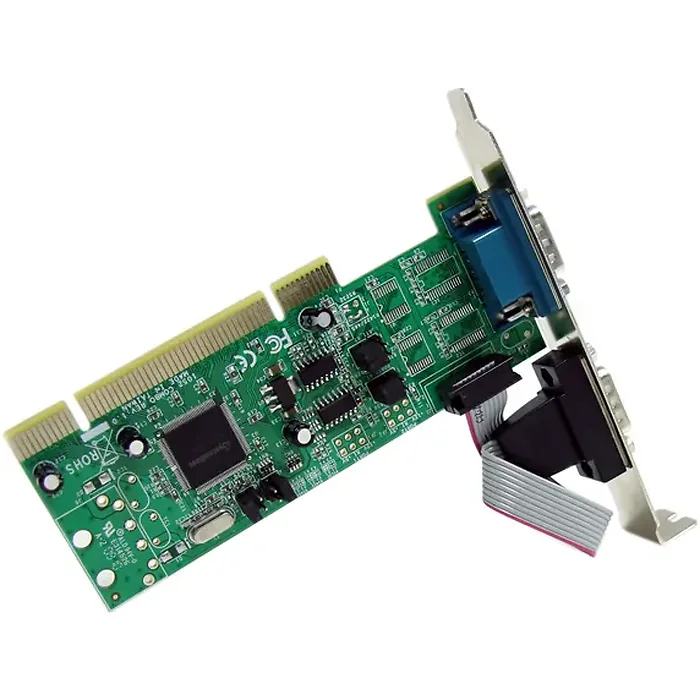

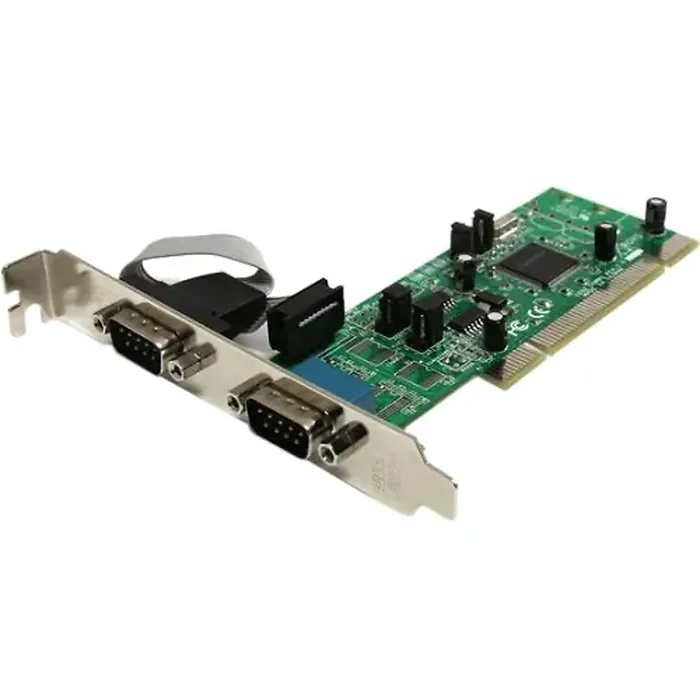

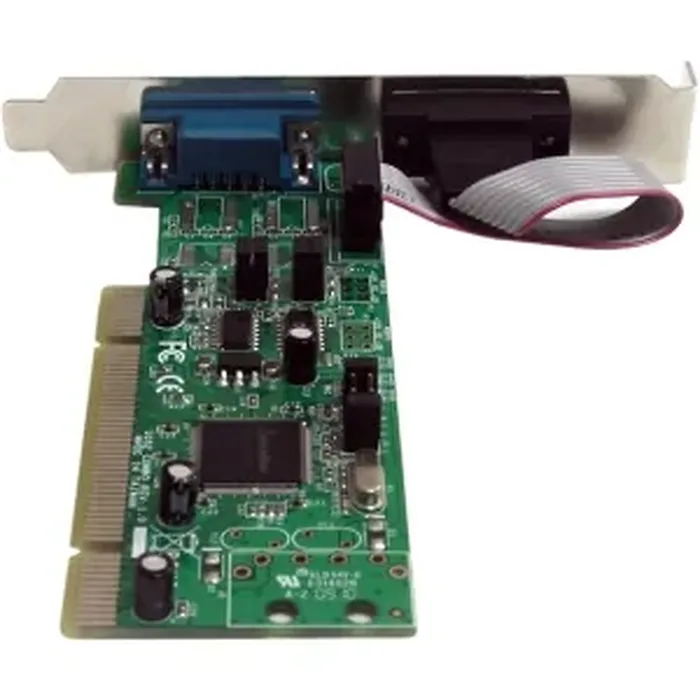

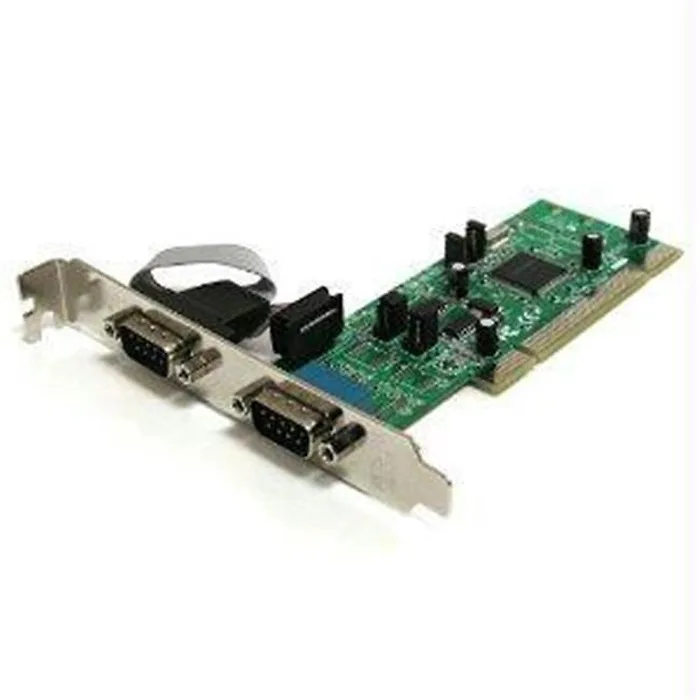

Product Name:2 Port PCI RS422/485 Serial Adapter Card with 161050 UART
Marketing Information:

The PCI2S4851050 2-Port PCI Serial Adapter Card (RS422/RS485) with 161050 UART adds two DB9 RS422/RS485 serial ports, using a single PCI expansion slot.

The PCI serial card offers a high performance 16C1050 UART and supports both 2-wire and 4-wire RS485 modes. The card delivers an efficient single-chip design and a large 256-byte transit/receive FIFO buffer that work together to provide high-speed serial communication while reducing the overall load on the system CPU.

With the included standard and low profile/half-height brackets, this PCI serial expansion card suits a broad range of system form factors, and is a perfect addition for connecting RS422/485 serial devices to a host computer. For added versatility, the RS422/RS485 adapter is able to accommodate 3.3 or 5V PCI/PCI-X slots.

Backed by a StarTech.com lifetime warranty and free lifetime technical support.

Packaged Quantity:1
Product Type:Serial Adapter

Technical Information

Host Interface:Universal PCI
Data Transfer Rate:128kB/s
UART Type:161050
Platform Supported:PC

Interfaces/Ports

Number of Serial Ports (External):2

Physical Characteristics

Form Factor:Plug-in Card
Card Height:Dual-profile
Height:1.8"
Width:0.6"
Length:4.7"
Weight (Approximate):2 oz

Miscellaneous

Package Contents:

• 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART

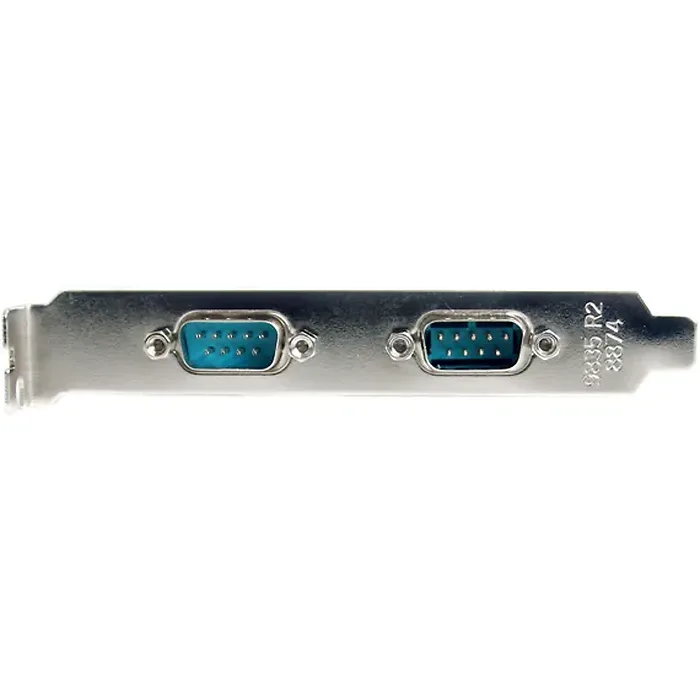

• Standard and Low Profile/half-height Brackets
• Driver CD

Environmentally Friendly:Yes
Environmental Certification:

• RoHS
• WEEE
• REACH

Country of Origin:Taiwan
TAA Compliant:Yes

Warranty

Limited Warranty:Lifetime
