Apc SMT2200C Apc Smart Ups 2.2kva Tower 2200 Va1980 W 120 V Ac 110 V Ac 127 V Ac
by APC - Schneider Electric
| Price: | $1380.99 |
| MFG Part: | SMT2200C |
| UPC: | 731304331049 |
| Condition: | New |
In Stock.
Ships from and sold by Aztek Computers.
Added On: Sep 1, 2022 | Updated On: Apr 19, 2025 | Views: 471
Smart-UPS 2200VA with APC SmartConnect Reliable Backup Power and Protection for Your Valuable IT Equipment 2200VA / 1980W Battery Backup Uninterruptible Power Supply (UPS) APC Smart Connect is the first cloud-enabled UPS for distributed IT. View the status of your UPS on a secure portal via any internet connected device, receive notifications, firmware updates and more 1 Additional Year of Battery Warranty for FREE when you connect and register your Smart-UPS with SmartConnect (see below "Getting Started is Easyâ¦" for connection process) 10 Total Battery Backup & Surge Protected Outlets Pure sine wave output while on battery provides the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics Automatic Voltage Regulation (AVR) adjusts high and low voltages to a safe level, ensuring your equipment had reliable power and preserving the life of the battery Next Generation of Smart-UPS An Overview of Smart-UPS and the SmartConnect App APC SmartConnect makes Smart-UPS more adaptable and easier to deploy than ever before, enabling you to view the status of your UPS through a secure web portal. Through this intuitive remote management interface, youâll receive automatic notifications, firmware updates, and advanced support; providing you with added value â and more importantly â added peace of mind.
Specifications
Output
Output power capacity :
1.92 KWatts / 1.92 kVA
Max Configurable Power (Watts) :
1.98 KWatts / 2.2 kVA
Nominal Output Voltage :
120V
Output Voltage Distortion :
Less than 5%
Output Frequency (sync to mains) :
50/60Hz +/- 3 Hz
Other Output Voltages :
110, 127
Topology :
Line Interactive
Waveform type :
Sine wave

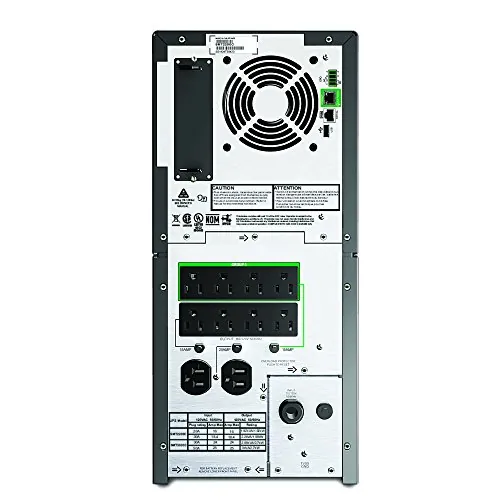

Output Connections
(2) NEMA 5-20R (Battery Backup)
(8) NEMA 5-15R (Battery Backup)
Transfer Time :
6ms typical : 10ms maximum Input
Nominal Input Voltage :
120V
Input frequency :
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections :
NEMA 5-20P
Cord Length :
6ft ( 1.83meters )
Input voltage range for main operations :
82 - 144V
Input voltage adjustable range for mains operation :
75 - 154V
Number of Power Cords :
1
Other Input Voltages :
110, 127 Batteries and Runtime
Battery type : Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time : 3hour(s)
Replacement Battery : RBC55
Expected Battery Life (years) : 3 5
RBC Quantity : 1
Runtime : View Runtime Graph View Runtime Chart Communications and Management
Interface Port(s) :
RJ-45 Serial , SmartSlot , USB
Control panel :
Multi-function LCD status and control console
Audible Alarm :
Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO) :
Yes
Available SmartSlotTM Interface Quantity :
1 Surge Protection and Filtering
Surge energy rating :
530Joules
Filtering :
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 Physical
Color :
Black
Units per Pallet :
9.0 Environmental
Operating Temperature :
32 - 104 oF ( 0 - 40 oC )
Operating Relative Humidity :
0 - 95 %
Operating Elevation :
0-10000ft ( 0-3000meters )
Storage Temperature :
-15 - 45 oC
Storage Relative Humidity :
0 - 95 %
Storage Elevation :
0-50000ft ( 0-15000meters )
Audible noise at 1 meter from surface of unit :
45.0dBA
Online thermal dissipation :
275.0BTU/hr Conformance
Approvals :
CSA, ENERGY STAR V1.1 (USA), FCC Part 15 Class A, UL 1778
Equipment protection policy :
Lifetime : 150000 Sustainable Offer Status
RoHS :
Compliant
REACH :
REACH: Contains No SVHCs Item Dimension ( L inch x W inch x H inch)
30 x 15 x 22
Weight
134.00lb
Warranty Information
3 years repair or replace (excluding battery) and 2 year for battery, optional on-site warranties available, optional extended
