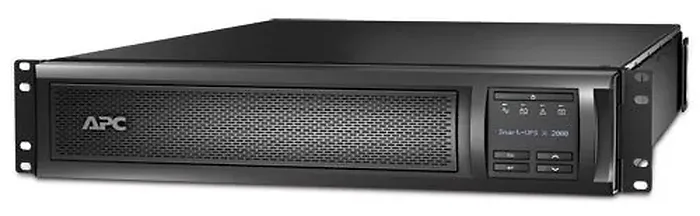

Apc SMX2000RMLV2U Apc Smartups X 2000va Racktower Lineinteractive 120 V 1800watt Serial
by APC - Schneider Electric

Specifications

Output
Output Power Capacity :1800 Watts / 1920 VA
Max Configurable Power :1800 Watts / 1920 VA
Nominal Output Voltage :120V
Efficiency at Full Load :98%
Output Voltage Distortion: Less than 5% at full load
Output Frequency (sync to mains): 47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60 Hz nominal
Waveform Type: Sine wave

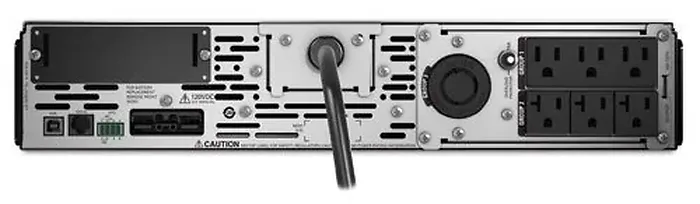

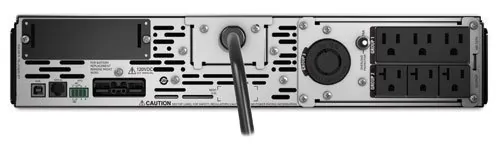

Output Connections :
(3) NEMA 5-15R
(3) NEMA 5-20R
(1) NEMA L5-20R Input
Nominal Input Voltage:120V
Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections: NEMA 5-20P
Cord Length: 8 feet (2.44 meters)
Input voltage range for main operations :82 - 147V
Input voltage adjustable range for mains operation :75 - 154V
Transfer Time: 2-4 ms Batteries and Runtime
Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time :3 hour(s)
Replacement Battery :APCRBC117
RBC Quantity: 1
Extended Run Options :APC Smart-UPS X 2000VA Rack/Tower LCD 100-127V Communications and Management
Interface Port(s) :SmartSlot
Available SmartSlot Interface Quantity :1
Control panel :LED status display with On Line : On Battery : Replace Battery and Overload indicators,Multi-function LCD status and control console
Audible Alarm :Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO) :Yes Surge Protection and Filtering
Surge energy rating :540 Joules
Filtering :Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 Regulatory Approvals
BSMI,CSA,EN 50091-2,EN 55022 Class A,FCC Part 15 Class A,NOM,TUV,UL 1778,VCCI Class A Item Dimension (L"xW"xH"):
9.58 x 23.48 x 34.23

Weight:
99.79 lb

Warranty Information
3 years, excluding batteries, Warranted for 2 years from the date of purchase
