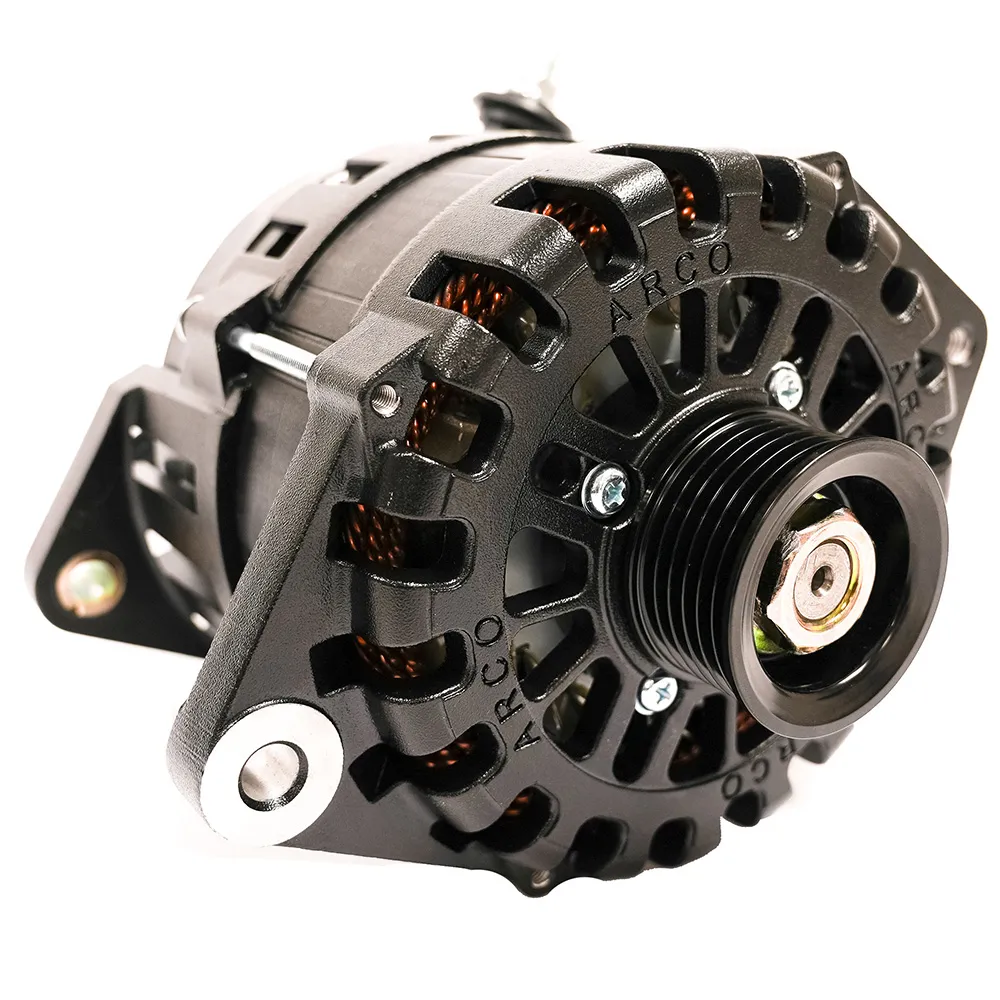

Zeus A275L J-180 4" Alternator with Terminal Block

The highest power output alternator in its size/class.

Features:

• Engineered for High Energy Production.
• Suitable for Marine, RV, Military, and Commercial applications.
• Rapidly charges large battery banks.
• Coolest operating temperatures for increased performance.
• It runs 8 - 20% cooler than incumbent alternators due to heat-shedding coatings, a refrigerator on the housing exterior, dual cooling fans, and OEM components.
• It is optimized for performance at idle speeds.
• Reduces the need for a generator by creating additional power with your engine.
• Unleash peak performance with E-Coat/Cerakote. Our advanced coating absorbs less heat, keeping the A275L cooler. This translates to more amperage for sustained periods.
• Use an ARCO Zeus Bluetooth alternator regulator or lithium battery charging for maximum performance.
• SAE J1171 Certified.
• Made in the U.S.A.

Technical Specifications:

• Voltage - 12v
• Field Type - P
• Rotor Poles - 16
• Stator Size - 138mm
• Frame Size - Large
• Weight - 14.9 lbs/6.7 kg
• Regulation - External Only (These units will come with a terminal block and a P-Type harness. They will only work with an external regulator, such as an ARCO Zeus Bluetooth alternator regulator.)
• Output Voltage - 14.1v (Default)
• Finish - (Black) Cerakote or E-coating
• Cut-In RPM - 1,061 Alternator RPM
• Maximum Alt RPM - 19,000
• Battery Post - M8 Thread Post, Side Mount
• Standard Pulley - 49K6 (6-groove, 49mm)
• Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
• Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
• Diodes - 6 positive, 6 negative, 50A Rated, Avalanche
• Max Output (Cold, 9,000 RPM) - 311 Amps
• Sustained Cruising Output (Hot, 6,000 RPM) - 227 Amps
• Sustained Idle Output (Hot, 3,000 RPM) - 198 Amps
• Max Continuous Operating Temperature - 110°C / 230°F

Mounting Application:

• Replaces most Volvo Penta alternators using a 4” J180 saddle-style mount
