B 000-14492-001 Bamp;g V20s Class D Dsc Vhf Radio
by B and G
| Price: | $418.64 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
only 2 left in stock order soon

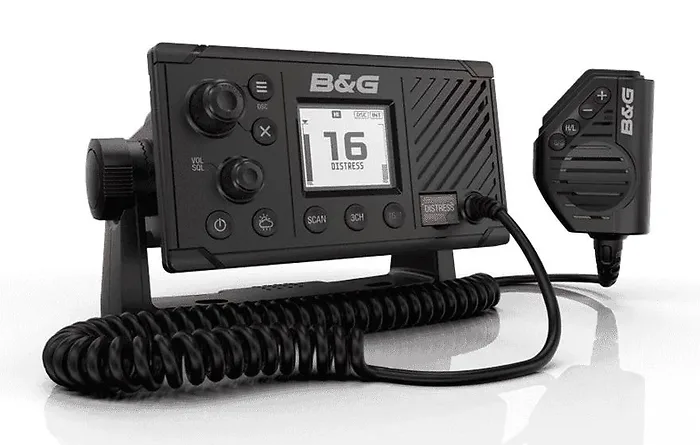

B&G V20S Class D DSC VHF Radio
Model: 000-14492-001
- Includes internal GPS
- High Visibility Display
- Intuitive Controls
- Class D DSC Approved
- Tri-Channel Watch Function
- All International Channels
- My Channel Mode
- Multiple Scan Modes
- Easy Bracket or Flush-Mount Installation
See clearly in bright daylight with a high contrast black-on-white display, and inverted white-on-black night mode. A rotary dial makes channel selection easy, while large buttons provide quick access to other key functions. Dedicated Channel 16 keys, found on both the radio and its fist microphone, offer instant access to the emergency channel. An included gimbal bracket enables simple table-top, overhead, or bulkhead installation. Flush-mount installation is also possible, with an easy mount-from-front solution, to match the low-profile style of our glass bridge displays and accessories.
DSC, or "Digital Selective Calling", makes it easier to stay in touch with other boaters and enables you to broadcast your boat's location during an emergency. If you find yourself in trouble, the V20S's dedicated "distress" button will initiate a DSC distress call that sends your boat's position to anyone within VHF range. Used together with a traditional radio distress call, this makes it easier for other boaters with DSC-capable radios to register your situation and come to your aid.
An integrated GPS receiver means your position can be sent even if your boat's other electronics are powered down.
The V20S is designed for global use and supports all international channels. With tri-channel watch, easily scan between the current channel, emergency channel 16, and another user-configurable priority channel (in the USA, scan between the current channel, emergency channel 16, and calling channel 9). Alternatively, scan through all available channels or just your selected favourites. Emergency channels can be given priority when scanning to reduce the chance of missing distress calls or other urgent safety messages.
Specifications
| General | |
| Power supply | 12 V DC battery system |
| Nominal operating voltage | + 13.6 V DC |
| Current drain (Transmit) | <= 6 A @ 25 W / 1.5 A @ 1W (12 V DC) |
| Current drain (Receive) | Less than 450 mA in standby |
| Usable channels | International, USA, Canada, Weather (country specific) |
| DSC mode | Class D (Global) with dual receiver (individual CH70) |
| PHYSICAL | |
| LCD display (viewing) | 42 mm x 34 mm (1.65" x 1.3"), FSTN |
| Waterproof | IPx7 |
| Dimensions | W=166.7 mm (6.56") x H=89.2 mm (3.5") x D=161.4 mm (6.35") - without bracket |
| Weight | 1.18 kg (2.6 lbs) |
| Compass safe distance | 0.5 m (1.5') |
| NMEA 0183 port | Yes |
| NMEA 0183 input | RMC, GGA, GLL, GNS |
| NMEA 0183 output | Yes, DSC ( for DSC call), DSE (for enhanced position) |
| NMEA 2000 port | Yes |
| External speaker support | Yes |
What's in the Box:
- V20s VHf radio
- RS20/V20 Mounting Bracket
- RS20/V20 Fist Mic Clip
- V20 Suncover
- RS20/V20 Mounting Bracket Knobs
