Barton 90 301 Small Snatch Block Wstainless Snap Shackle
by Barton Marine
| Price: | $116.70 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.

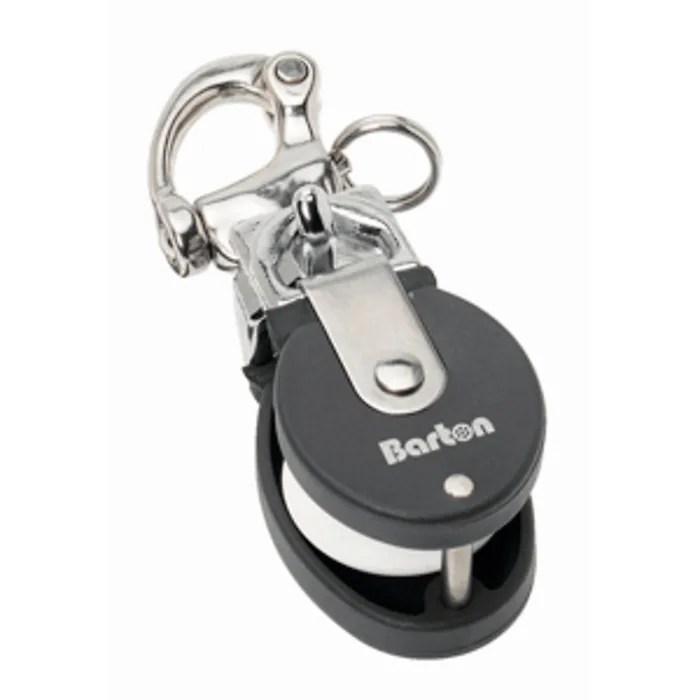

Small Snatch Block w/Stainless Snap Shackle
Unique to Barton, these are probably the smallest block of this type available.
Extremely compact and strong, with a multitude of uses on cruising or racing yachts where a large unit is not required.
Important Note - Snatch Blocks:
When using small and medium snatch blocks on a toe rail, a bungee line should be attached to the becket to prevent the block 'tumbling' and causing damage by snagging.
Sheave: 35mm (1.38")
Sheave Width:17mm (0.67")
Rope: 12mm (0.47")
Break Load: 800kg (1,763.7lbs)
SWL: 400kg (881.8lbs)
Length: 110mm (4.33")
Weight: 170g (0.37lbs)
Specifications
Small Snatch Block w/Stainless Snap ShackleUnique to Barton, these are probably the smallest block of this type available.
Extremely compact and strong, with a multitude of uses on cruising or racing yachts where a large unit is not required.
Important Note - Snatch Blocks:
When using small and medium snatch blocks on a toe rail, a bungee line should be attached to the becket to prevent the block tumbling and causing damage by snagging.
Sheave: 35mm (1.38)
Sheave Width:17mm (0.67)
Rope: 12mm (0.47)
Break Load: 800kg (1,763.7lbs)
SWL: 400kg (881.8lbs)
Length: 110mm (4.33)
Weight: 170g (0.37lbs)
