Bluewater 9059-2123-1 22mm Double Momentary Push Button Switch Led
by BlueWater
| Price: | $69.09 |
| MFG Part: |
| Condition: |
Currently Unavailable.

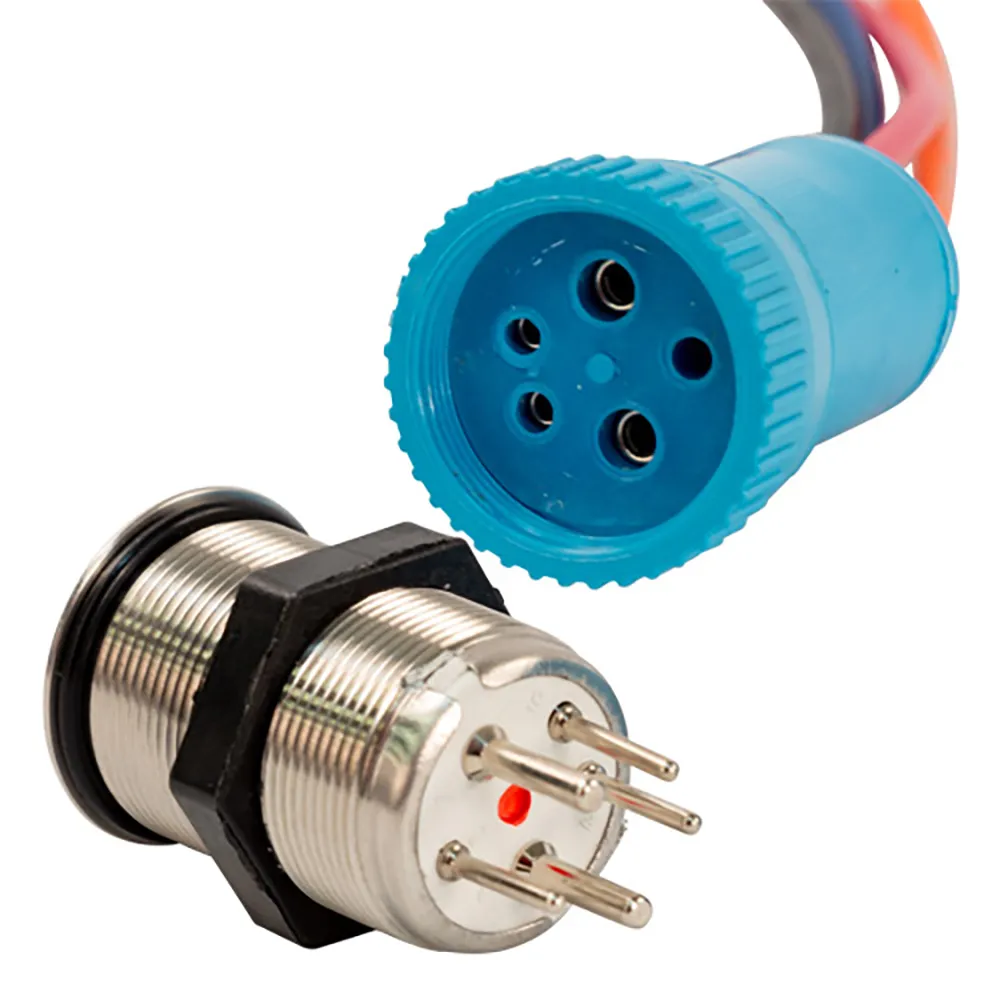

22mm Double Momentary Push Button Switch - LED
This sleek stainless-steel push button switch adds a modern touch to any dashboard or control panel. Featuring an "Off-(On)-(On)" double momentary contact, it provides quick and reliable operation.
Designed with a waterproof rating of IP69K, the switch is perfect for outdoor and demanding environments. At night, its backlighting shines brightly with blue LED light, transitioning to red to indicate the active function clearly.
Specifications:
- Function: Off-(On)-(On) (Double Momentary Contact)
- Backlight Colors: Blue/Green (Off/1st On) and Red (2nd On)
- Switch Rating: 15A/12 – 24VDC
- Material: Stainless Steel
- Mechanical Life: 50,000 cycles
- Electrical Life: 10,000 cycles
Installation:
To install, drill a 22mm hole in any material up to 6mm thick, connect the three contacts for the button (color-coded for ease), and connect the two contacts for the LED lighting.
Specifications
- Modern stainless-steel design
- IP69K waterproof rating
- Bright blue and red LED backlighting
- Long mechanical and electrical life
- Easy to install with color-coded contacts
