Newmar BX-2 Splashproof Junction Box For Wiring Connections
by Newmar Power

• ☆☆☆☆☆
• 1 customer reviews (jump to section)

In Stock.
only 6 left in stock order soon

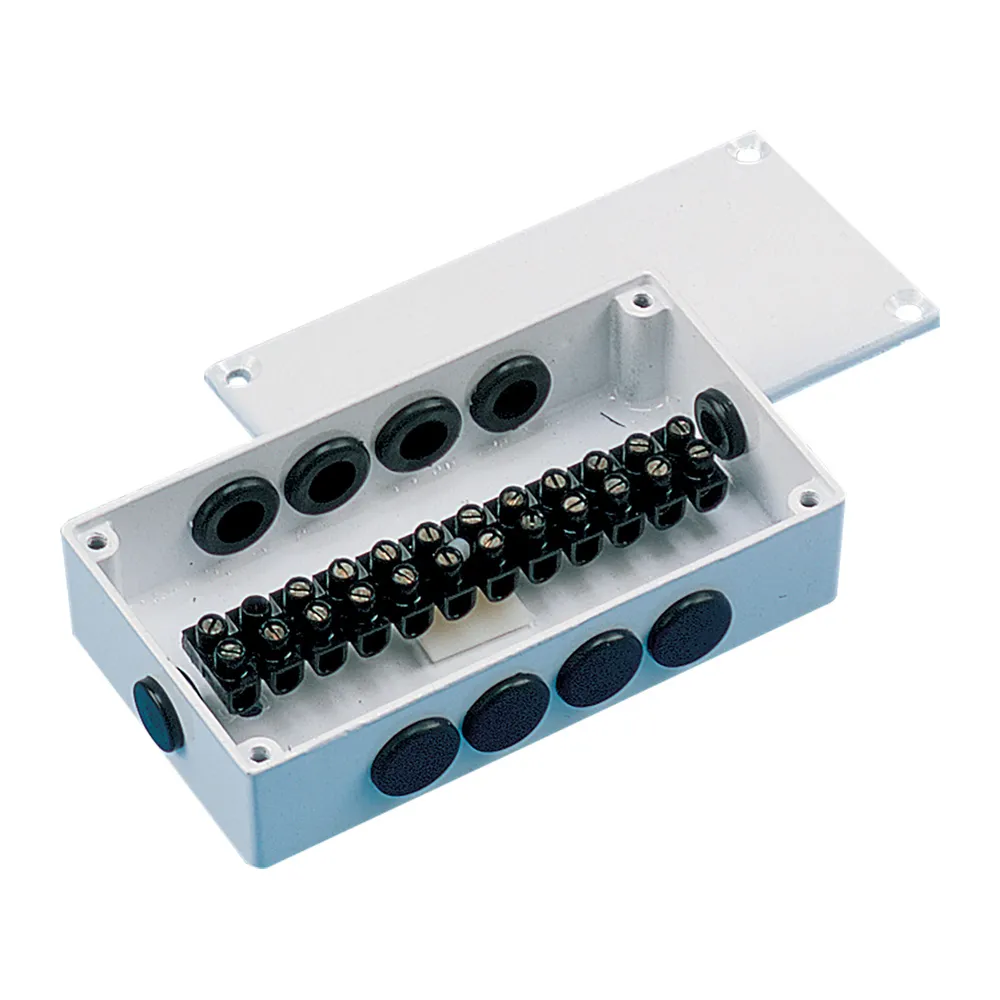

BX-2 Splashproof Junction Box

This robust BX Series junction box is designed for secure and protected wiring connections in challenging environments such as wheelhouses, engine rooms, or below decks. With its splashproof design, it ensures durability and reliability in marine applications.

Key Features:

• IP54 rated for splashproof protection
• Rugged cast aluminum construction with a durable white enamel finish
• Metal enclosure minimizes electrical interference
• Multiple grommeted cable entries for easy wiring access
• Includes high-quality connector strips for secure wire connections—compression fittings eliminate the need for terminals

Specifications:

• Connector Strips Included: 1
• Positions Per Strip: 12
• Maximum Wire Gauge: 16
• Maximum Amperage (per position): 6
• Cable Entries: 8
• Cable Diameter Compatibility: 0.37 inches
• Overall Box Size: 4.4 x 2.4 x 1.2 inches
• Overall Box Size: 11.2 x 6.1 x 3.1 cm
