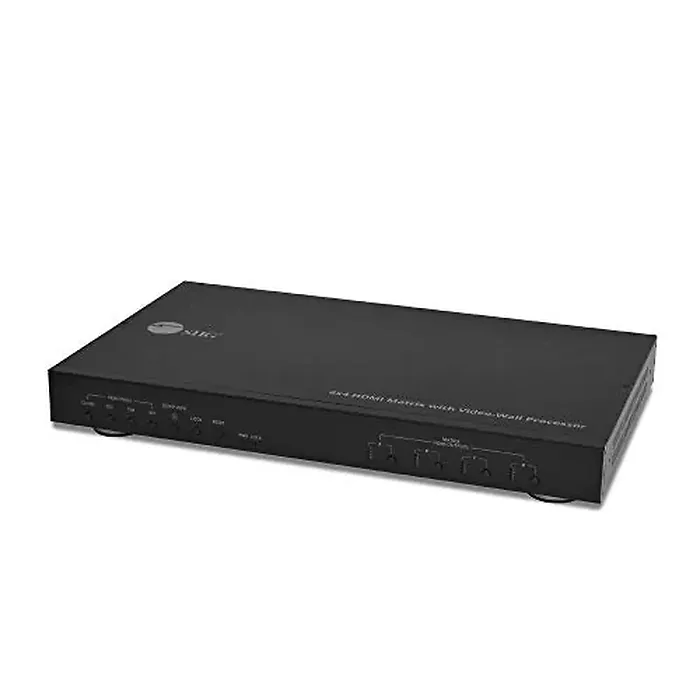

Siig CE-H24C11-S1 Digital Signage Allows Any Of The 4 Hdmi Sources To Be Displayed On Any Of The 4
by Siig
| Price: | $1071.51 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
only 2 left in stock order soon
ALLOWS ANY OF THE 4 HDMI SOURCES TO BE DISPLAYED ON ANY OF THE 4 HDMI DISPLAYS,
Specifications
Compliant with HDMI 1.3 and HDCP 1.2a specificationOutput resolutions:
480i / 480p / 720p 1080i /1920x1080 at 60 / 1920x1200 at 60 30-bit color
User-selectable output settings, up to 1920x1200
Supports HDMI input 640x480 to 920x1080 at 60, interlaced or progressive
Device controls:
push button control, RS232 control, and Ethernet control
Supports 7.1 channel digital audio or stereo digital audio
Supports default HDMI EDID and EDID learning of the connected displays
Supports resize, position, zoom for each HDMI output
Each HDMI output has an independent controllable display area
Image parameters and layouts are automatically saved in flash memory to be recalled for later use
Firmware is flash upgradable allowing for new features and technological enhancements
Supports individual propagation delay on each display to deliver the best visual experience
ESD protection:
+/- 15kV Air / +/- 8kV Contact
Power consumption:
15W
Product:
Color: Black
Housing: Metal
Connector:
4x 19-pin, HDMI, Type A, Female, Input
4x 19-pin, HDMI, Type A, Female, Output
7x Push Button, Control
1x Push button, input select
1x 9-pin D-Sub RS-232, control port
1x 8-pin, RJ45, Ethernet control port
Environmental conditions:
Operation temperature: 32 to 104 degrees F
Storage temperature: -4 to 140 degrees F
Relative humidity: 20 to 90% RH (non-condensing)
TAA Compliant
Certifications/Standards:
FCC, CE, RoHS
Item Dimension (L"xW"xH")
6 x 8 x 4
Weight
8.5 lbs
Warranty Information
3 Years
