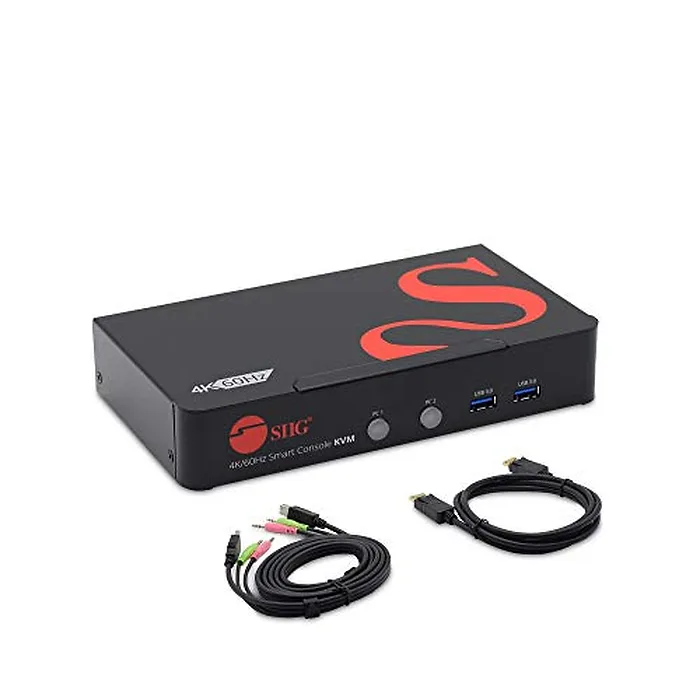

Siig CE-DP0F11-S1 Displayport Output 2x1 Displayport Kvm Switch True 4k Performance Console 2 Dp 1
by Siig

Specifications

Version:
DisplayPort 1.2 specification Video bandwidth:
Up to 21.6Gbps Video resolution:
3840x2160 at 60Hz YUV 4:4:4 8-bit Audio support:
Surround sound (up to 7.1ch) or stereo digital audio
DisplayPort: PCM, Dolby Digital, DTS-HD and Dolby True-HD audio
3.5mm: PCM 2-ch stereo Audio USB data transfer rate:
USB 1.1: up to 12Mbps
USB 3.0: up to 5Gbps Color:
Black Housing material:
Metal Connector:
Source:
2x 20-pin DisplayPort, Female
2x 9-pin USB 3.0 Type-B, Female
4x 3.5mm phone jack for Microphone and Stereo audio, Female
1x 5-pin Micro USB, FW update, Female
2x 2-pin DIP Switch Device:
1x 20-pin, DisplayPort, Female, Output
1x 3.5mm jack, Microphone, Female, Input
1x 3.5mm jack, Stereo audio, Female, Output
4x 9-pin USB 3.0 Type-A, Female
2x 4-pin USB 1.1 Type-A, Female (for Keyboard/Mouse) Power adapter:
Input: 100-240VAC, 50/60 Hz
Output: DC 12V/2A
UL Listed: E163743 8F35/Level:VI Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: -4 to 140 degrees F
Relative humidity: <85% RH (non-condensing) Certifications/Standards:
FCC, CE, RoHS TAA compliant Compatibilty:
- not DDM fast switching compliant
- 4K at 60Hz HDR is not supported Item Dimension (L inchxW inchxH inch)
8 x 2 x 5

Weight
1.54 lb

Warranty Information
3 Years
