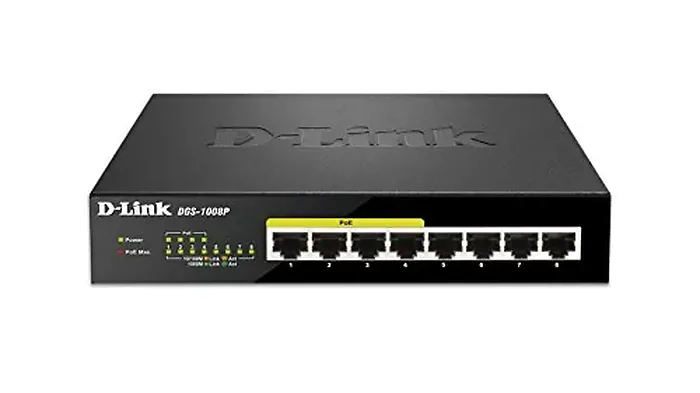

D-link DGS-1008P Dlink Switch 8port Gigabit Unmanaged Desktop With 4 Poe Ports Retail
by D-Link
| Price: | $69.26 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
D-Link DGS-1008P 8-Port Gigabit Metal Desktop Switch with 4 PoE Ports - 8 Ports - 4 x POE - 4 x RJ-45 - 10/100/1000Base-T - Desktop 10/100/1000 4PORT POE ENET RJ45
Specifications
Switching Capacity16 Gbps
Standards
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
ANSI/IEEE 802.3 NWay Auto-negotiation
IEEE 802.3x Flow Control
IEEE 802.1p QoS POE Features
Supports IEEE 802.3af
Supplies power to PD: up to 15.4 Watts
Total PoE budget: 52 Watts
PoE port count/Average PoE watts per port: 4 (Port 1 - 4) / 13 Watts
Media Interface Exchange
Auto MDI/MDIX adjustment for all ports
Network Cables
10BASE-T:
UTP CAT 3/4/5/5e (100 m max.)
EIA/TIA-586 100-ohm STP (100 m max.)
100BASE-TX, 1000BASE-T:
UTP CAT 5/5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.) Led Indicators
Per port: Link/Activity/Speed/PoE Status
Per device: Power/PoE Max
Transmission Method
Store-and-forward
MAC Address Table
4K Entries per device
MAC Address Learning
Automatic update Packet Filtering/Forwarding Rates
Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
Gigabit Ethernet: 1,488,000 pps per port
RAM Buffer
192 KBytes per device
Power Consumption
Power On (Standby):
DC input: 0.48 Watts
AC input: 2.1 Watts
Maximum (PoE Off)
DC input: 4.48 Watts
AC input: 6.2 Watts
Maximum (PoE On)
DC input: 57.83 Watts
AC input: 63.2 Watts Power Adapter
AC input: 100 to 240 VAC, 50/60 Hz
DC output: DC 48 V/1.25 A (60 Watts)
Certifications
FCC Class B
ICES-003 Class B
CE Class B
C-Tick Class B
VCCI Class B
cUL
LVD Item Dimension (L"xW"xH")
12.92 x 7.09 x 4.22
Weight
3.27 lb
Warranty Information
Limited Lifetime
