DT Deutsch Connector Repair Kit - 14-18 AWG (4 Position)

This repair kit from Pacer is specifically designed for DT Deutsch connectors, utilizing larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) suitable for 14 AWG wires. While DT series connectors are primarily meant for wire gauge applications ranging from 20 to 14 AWG, this kit allows the use of multiple sizes of 16 contacts, each with a continuous capacity of 13 amps, all within one shell. Pacer also provides additional components for expanded applications.

Features:

• Complete assembly pack for easy connector construction
• Includes one or two additional terminals
• Cavity plugs for sealing open circuits

Applications:

• Ideal for wire-to-wire connections
• Enclosed connectors ensure reliability and rugged performance

Compliances:

• Ingress Protection (IP) Level: IP68 and IP6K9K
• Meets EU RoHS/ELV standards
• Compliant with Standard UL-94

Characteristics:

• Wedge locks for optimal contact alignment and retention
• Redundant silicone seals for enhanced durability
• Hand-insertable and removable contacts for convenience

Technical Specifications:

• Number of Cavities: 4
• Housing: Rectangular receptacle made from plastic reinforced with glass fiber
• Contact Size: Size 16 (13 amp)
• Wire Size Compatibility: 14 AWG
• Fixed Connection: Sockets
• Operating Temperature Range: -55°C to 125°C

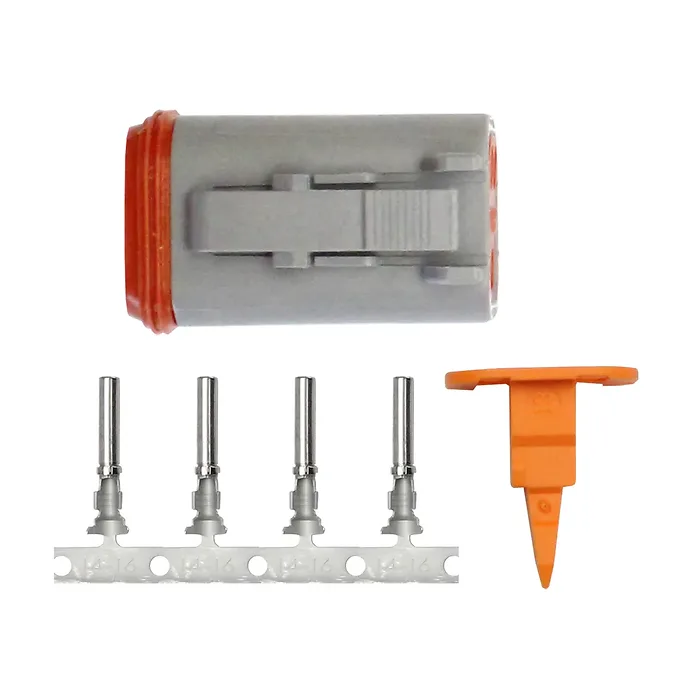

Contents:

• (1) 4 position plug
• (1) 4 position wedge lock
• (5) sockets
• (2) cavity plugs
