Pacer TDT06F-8RS Dt Deutsch Plug Repair Kit 14 Awg 8 Position
by Pacer Group

• ☆☆☆☆☆
• 1 customer reviews (jump to section)

In Stock.
only 8 left in stock order soon

DT Deutsch Plug Repair Kit - 14 AWG, 8 Position

This DT Deutsch Plug Repair Kit is specifically designed for 14 AWG wires, utilizing larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141). The DT series connectors are engineered for applications using 20-14 wire gauge, allowing electrical designers the flexibility to utilize multiple sizes of 16 contacts (20-14 AWG) each with a continuous capacity of 13 amps within a single shell. Pacer provides additional components for a wider range of applications.

Features:

• Complete pack includes all necessary components to assemble a connector
• Includes one to two extra terminals for convenience
• Cavity plugs provided to seal open circuits
• Ideal for wire-to-wire applications
• Field-proven reliability with rugged enclosed connectors

Compliances:

• Ingress Protection (IP) Level: IP68 and IP6K9K
• EU RoHS/ELV compliant
• UL-94 Recognized Standard

Characteristics:

• Wedge locks for ensuring contact alignment and retention
• Redundant silicone seals for enhanced durability
• Contacts are hand-insertable and removable for easy installation

Technical Specifications:

• Number of Cavities: 8
• Housing: Rectangular receptacle, plastic reinforced with glass fiber
• Contact Size: 16 (13 amp)
• Wire Size: 14 AWG
• Holds Pin/Socket: Sockets
• Operating Temperature: -55°C to 125°C

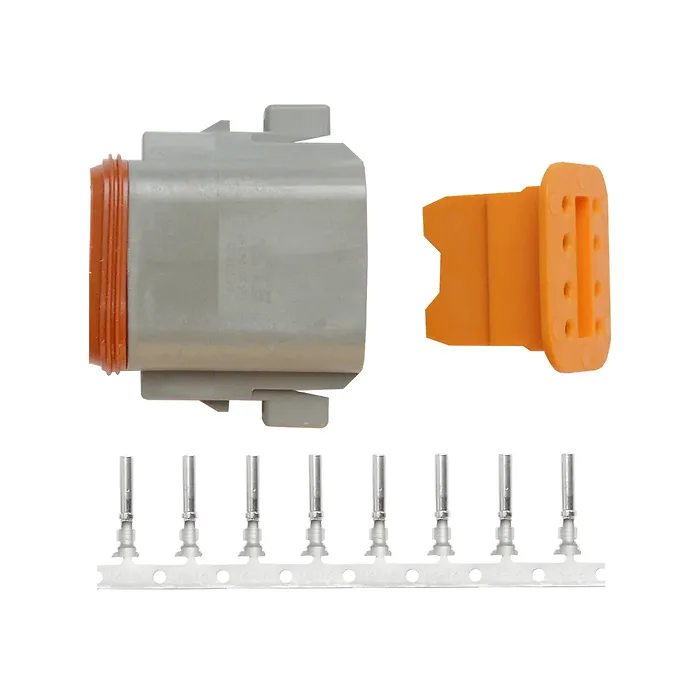

Contents:

• (1) 8 position plug
• (1) 8 position wedge lock
• (10) sockets
• (4) cavity plugs
