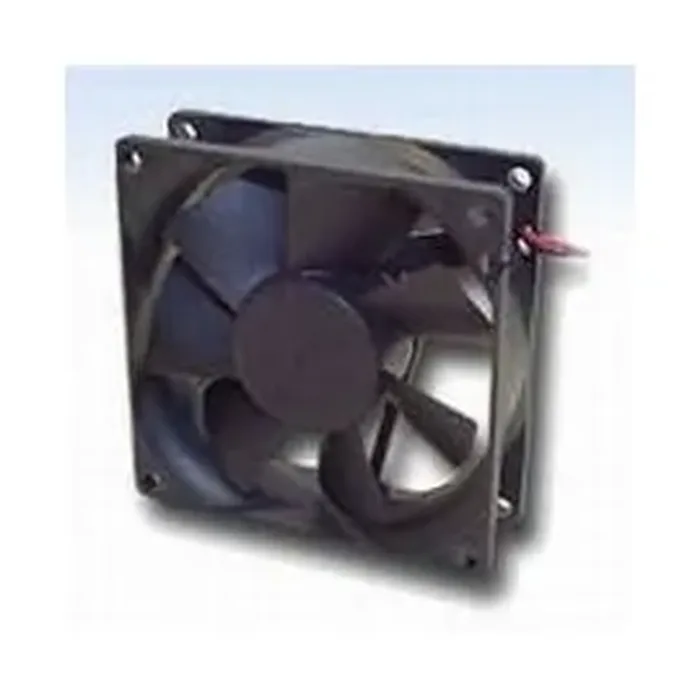

Dynatron DF128025BM-3G 80mm 3pin Fan With Dual Ball Bearings
by Dynatron
| Price: | $33.78 |
| MFG Part: | DF128025BM-3G |
| Condition: | New |
Currently Unavailable.
Ships from and sold by Aztek Computers.
Added On: May 12, 2023 | Updated On: Dec 28, 2025 | Views: 1
The Dynatron 80mm fan is designed for optimal airflow and quiet operation, making it ideal for computer cooling and other applications. With a robust construction and dual ball bearing system, this fan operates reliably at 2600 RPM.
It features a lightweight plastic frame and blade construction, ensuring durability and efficiency. This fan is RoHS compliant and adheres to strict safety standards, offering peace of mind for electronic use.
Specifications
- Frame Material: Plastic (UL 94V-0)
- Blade Material: Plastic (UL 94V-0)
- Dielectric Strength: 50/60 Hz, 500 VAC, 1 minute
- Insulation Resistance: 50M ohm min. at 500 VDC
- Operating Temperature: -10°C to +70°C
- Connector: 3-pin
- Bearing System: Dual Ball Bearing
- Rated Voltage: 12V
- Input Current: 0.22A
- Input Power: 2.64W
- Speed: 2600±10% RPM
- Air Flow: 27.94 CFM
- Static Pressure: 2.47 mm-H2O
- Noise Level: 30.70 dBA
- Weight: 70g
- Warranty: 1 Year
