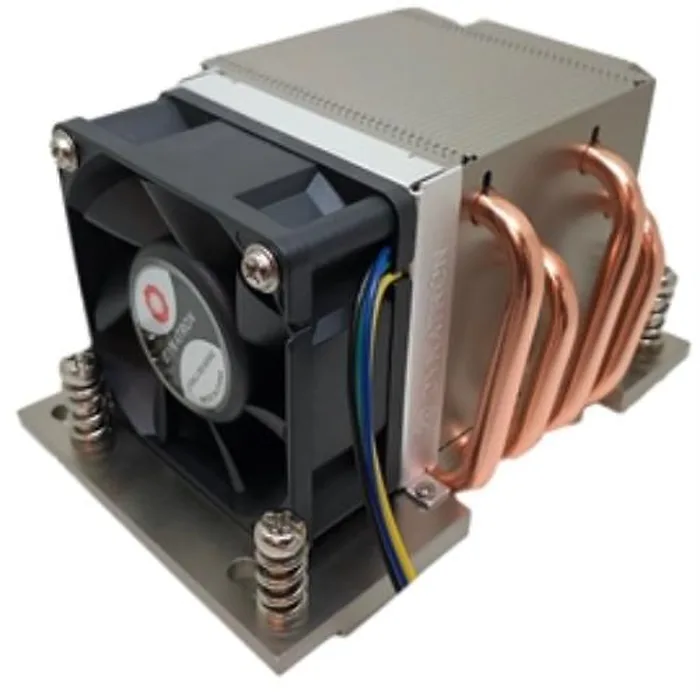

Dynatron A26 Fan Amd Epyc Sp3 Pwm Fan Cooler For 2u Server Brown Box
by Dynatron
| Price: | $61.46 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
AMD EPYC Processor Socket SP3 Side-Blower 60x60x25mm PWM fan Cooler for 2U Server and Up.CPU Support AMDCPU Socket SP3Solution 2U Server and UpMaterial Aluminum Heatsink with Heatpipe Embedded Fan Dimension60 x 60 x 25 mmSpeedAt Duty Cycle 20%: 1600 +/- 200 RPM At Duty Cycle 50%: 4000 +/- 10% RPM At Duty Cycle 100%: 8000 +/- 10% RPMPowerAt Duty Cycle 20%: 1.2 W At Duty Cycle 50%: 2.28 W At Duty Cycle 100%: 7.2 WBearingBall Type, DoubleRated Voltage12VAir FlowAt Duty Cycle 20%: 8.85 CFM At Duty Cycle 50%: 21.88 CFM At Duty Cycle 100%: 43.75 CFMNoise LevelAt Duty Cycle 20%: 18 dBA At Duty Cycle 50%: 37.9 dBA At Duty Cycle 100%: 53 dBAAir PressureAt Duty Cycle 20%: 0.76 mm-H2O At Duty Cycle 50%: 4.76 mm-H2O At Duty Cycle 100%: 19.04 mm-H2OLead Wire Pin OutPin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM)Item Dimension (L inchxW inchxH inch) 5 x 4 x 3Weight 1.00 lbWarranty Information 1 Year
Specifications
CPU SupportAMD CPU Socket
SP3 Solution
2U Server and Up Material
Aluminum Heatsink with Heatpipe Embedded Fan Dimension
60 x 60 x 25 mm Speed
At Duty Cycle 20%: 1600 +/- 200 RPM
At Duty Cycle 50%: 4000 +/- 10% RPM
At Duty Cycle 100%: 8000 +/- 10% RPM Power
At Duty Cycle 20%: 1.2 W
At Duty Cycle 50%: 2.28 W
At Duty Cycle 100%: 7.2 W Bearing
Ball Type, Double Rated Voltage
12V Air Flow
At Duty Cycle 20%: 8.85 CFM
At Duty Cycle 50%: 21.88 CFM
At Duty Cycle 100%: 43.75 CFM Noise Level
At Duty Cycle 20%: 18 dBA
At Duty Cycle 50%: 37.9 dBA
At Duty Cycle 100%: 53 dBA Air Pressure
At Duty Cycle 20%: 0.76 mm-H2O
At Duty Cycle 50%: 4.76 mm-H2O
At Duty Cycle 100%: 19.04 mm-H2O Lead Wire Pin Out
Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM) Item Dimension (L inchxW inchxH inch)
5 x 4 x 3 Weight
1.00 lb Warranty Information
1 Year
