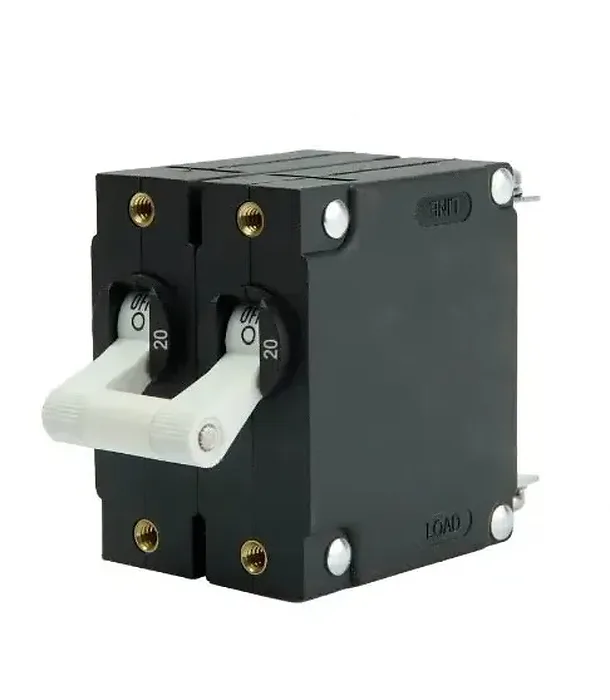

Egis 3202-20 Egis A Series White Toggle Panel Mount Circuit Breaker Dual Pole Ac 20 Amp Retail Pack
by Egis Mobile Electric
| Price: | $36.28 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
only 7 left in stock order soon
EGIS A Series White Toggle Panel Mount Circuit Breaker Dual Pole AC 20 Amp Retail Pack
Model: 3202-20- AC & DC Rated to cover a wide range of system application needs.
- Stainless Steel Self Locking Hardware ensures robust connections & long term connection reliability.
- Easily Mounts In Standard Panels accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws .
- 4 Year Warranty: We stand behind our product's ability to meet your needs.
Protects Electrical Circuits allows from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
High Interrupt Current to safely protects circuits connected to large paralleled battery banks with significant available power.
Specifications| CONTINUOUS CURRENT (AMPS) | 20 |
| MAX VOLTAGE | 277 Vac / 80 Vdc |
| Regulatory Compliance | UL 1077 |
| Electrical Endurance @ Rated current | 6,000 Cycles |
| Interrupt Capacity | 5kA / 277Vac, 1.5kA / 80 Vdc |
