Specifications

Enclosure Color
Black Touch Technology and Capacity
SAW (IntelliTouch Surface Acoustic Wave) - Single Touch
PCAP (TouchPro Projected Capacitive) - 10 Touch Touch Interface
TouchPro PCAP - USB 2.0
IntelliTouch - Dual serial/USB 2.0 Diagonal Size

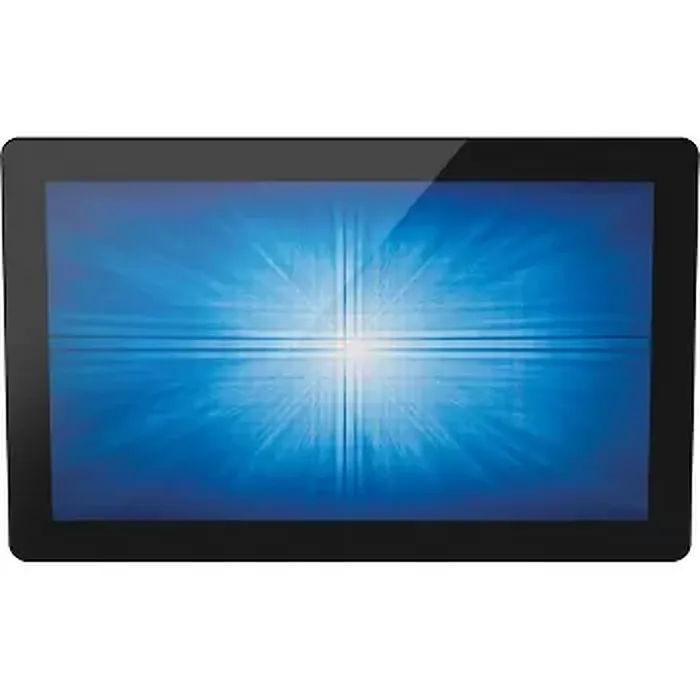

15.6 diagonal, Active matrix TFT LCD (LED)
On Screen Display
Accessible through switches on the units tethered OSD Control box.
Controls: Menu, Up, Down, Select, Power
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Through
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power Aspect Ratio
16:9 Active Area (mm)
13.55" x 7.62" / 344.232mm x 193.536mm Resolution
1366 x 768 Other Supported Resolutions
640 x 480 60Hz
720 x 400 70Hz
800 x 500, 60Hz
800 x 600 56, 60Hz
1024 x 768 60, 75Hz
1280 x 800 60Hz
1280 x 1024 60Hz
1366 x 768 60Hz, 60Hz RB Viewing Angle
Horizontal:+/- 80^o or 160^o total / Vertical: +/-80^o or 160^o total Number of Colors
16.7 million Brightness (typical)
LCD panel: 300 nits
IntelliTouch: 270 nits
TouchPro PCAP: 270 nits Response Time-total (typical)
10 msec Contrast Ratio
500:1 Input Video Format
HDMI V1.3 Type A receptacle for HDMI input
Analog VGA on Female DB-15 connector
DisplayPort V1.1a - Supports later versions of Display Port video input Input Video Frequency
Horizontal: 30 - 82 KHz
Vertical: 50 - 75 Hz Video Interface
HDMI, VGA and Display Port Power Supply
External DC - Optional power brick (sold separately) Input power connector (Monitor)
Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth) Input Voltage
12VDC +/- 5%
