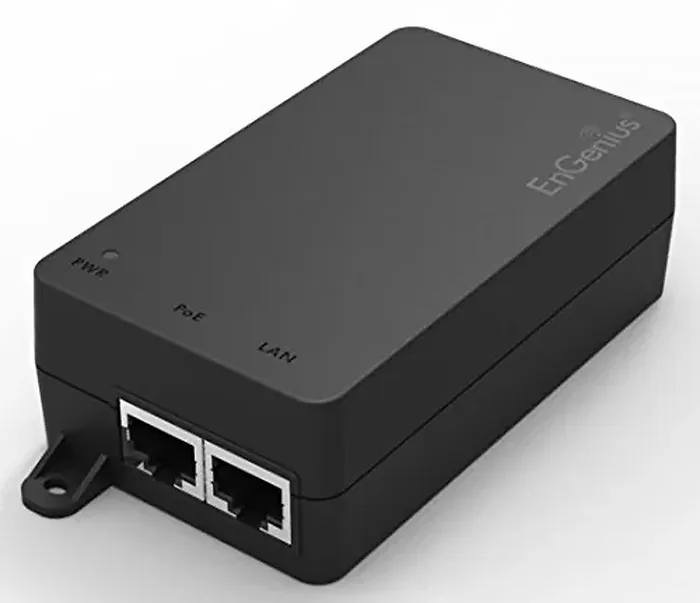

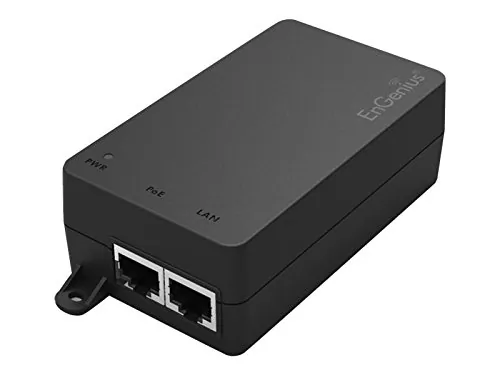

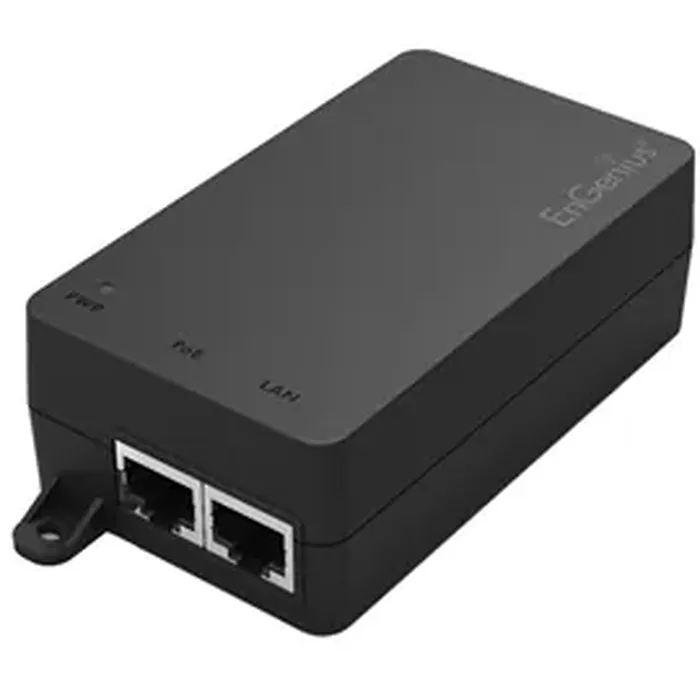

Engenius EPA5006GAT 802.3at Gigabit Poe Adapter
by EnGenius
| Price: | $34.19 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
- Ideal for connecting APs, IP Cameras, VoIP phones & more- Optimal port design for easy mounting/positioning- Compact design; sends up to 30W of output power- Extends power to unwired areas up to 328 ft./100 m- Gigabit Ethernet in & out ports for high-speed devices- Disconnect, short-circuit & surge protection ensures reliable, secure connection- Mounts to walls or ceilings with included hardware- Input Voltage: 100-240 VAC- Maximum Output Power: 30W
Specifications
PowerInput Voltage: 100 to 240V AC
Input Current: 0.8A Maximum for 100V AC
AC Input Frequency: 47 to 63 Hz
Maximum Output Power: 30W
Pin 4: 5.54V, Pin 7/8: Return Data
Compatible with 10/100/1000 Mbit/s Ethernet, full duplex Environment
Operating Temperature: 0 C to 40 C (32 F to 104 F)
Storage Temperature: -30 C to 80 C (-22 to 176 F)
Operating Humidity: 5 to 90% Under Non-Condensing Additional Features
Over Voltage and Over Current Protection
Short Circuit Protection Physical Interface
1 x 10/100/1000 Data input 1x10/100/1000 Data power output
1x IEC 320C6 AC connector LED Indicators
Power On: Green Mounting
Mounts to Walls (Anchors and Screws Included) Regulatory
IEC 60950-1: 2005 + A1
UL60950-1
EN55022:2010
EN55024:2010 FCC Part 15 Class B
AS/NZ60950-1 Item Dimension (L"xW"xH")
5.4 x 4.8 x 2
Weight
0.57 lb
Warranty Information
1 Year
