Specifications
Fiber inspection scope camera to verify that fiber end faces are not contaminated or damaged, works even in low light and high cable density situations, generates high resolution end face images on a large, 320 x 240 backlit display, probe camera 5 megapixel 1/4 inch cmos sensor

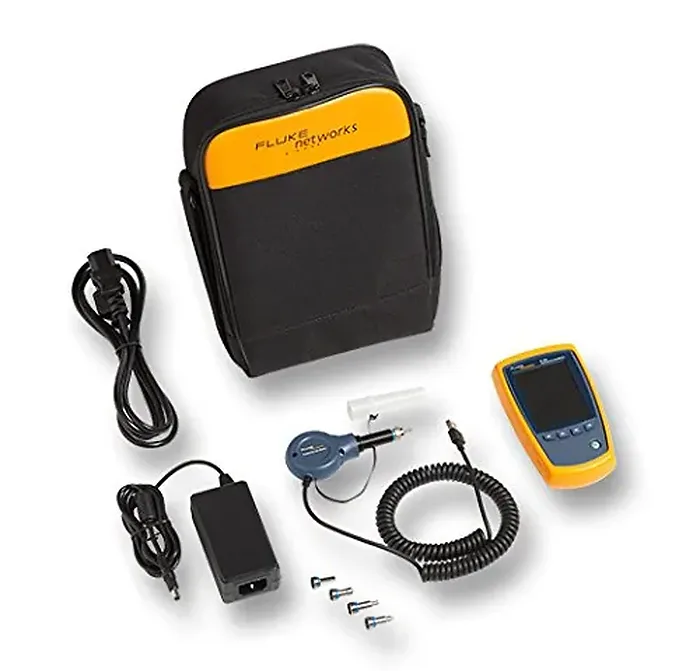

Includes: Fiberinspector micro with probe, display, 4 UPC tips (lc bulkhead, sc bulkhead, 1.25 millimeter end face adapters and 2.50 millimeter end face adapters), magnetic strap attachment, case, rechargeable batteries and universal power adapter
Use in dark areas and dense patch panels with portbright built in flashlight, activated by a button on the probe itself, allows you to find the port and then connect the probe tip to view fiber bulkhead and endfaces
Auto focus for precise fiber ferule inspection and stable images in 3 to 5 seconds, autocenter feature activates as soon as you pause the image, pause button freezes the image, magnification of 200x with 1x, 2x, and 4x zoom settings
Small probe, only 23 millimeter (0.95") wide and 51 millimeter (2") thick, gets into tight patch panels with less disruption of nearby fibers, and features pushbutton controls for simple operation
