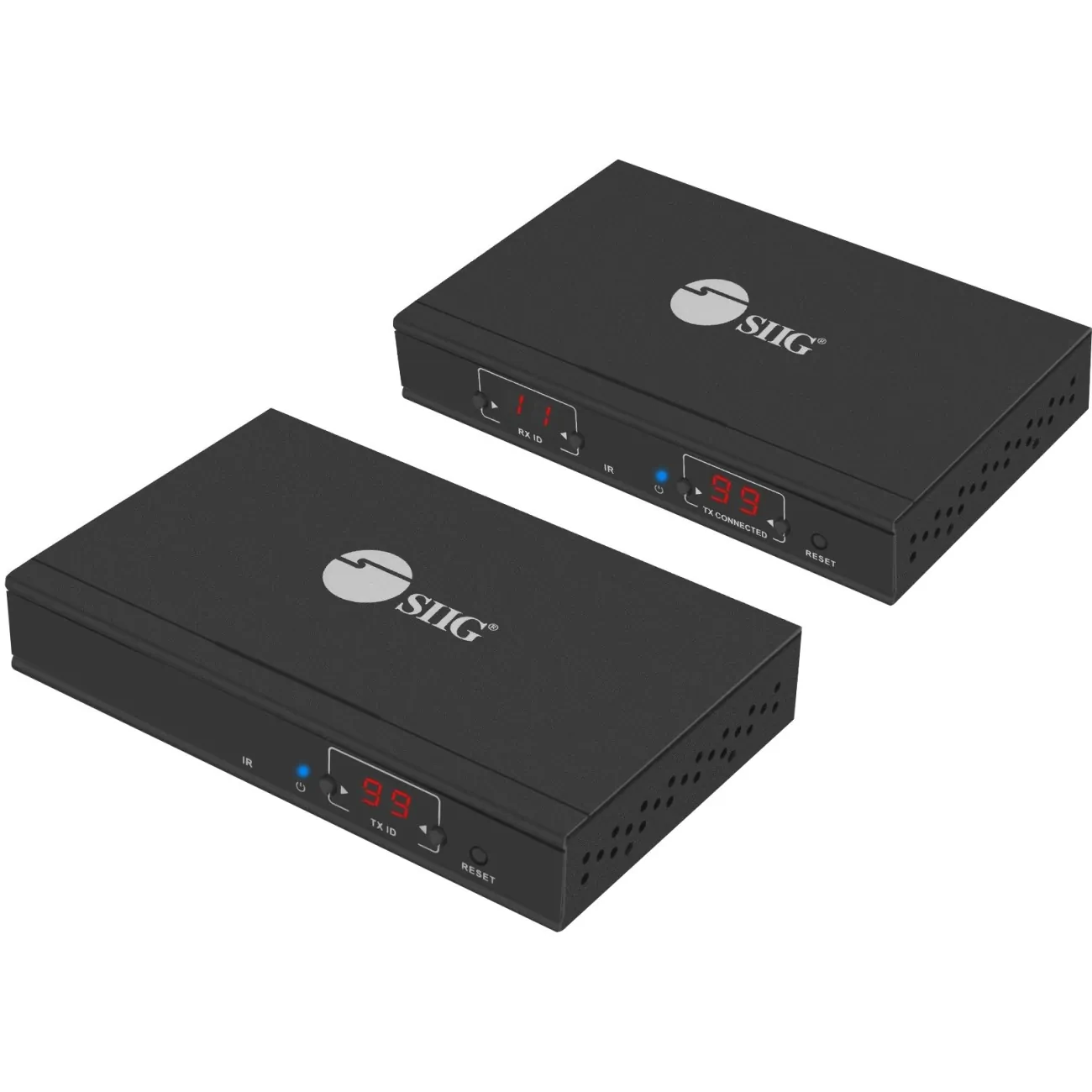

Siig CE-H23A11-S2 Full Hd Quality Extends High Definition 1080p Hdmi Signals From A
by Siig
| Price: | $237.85 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.

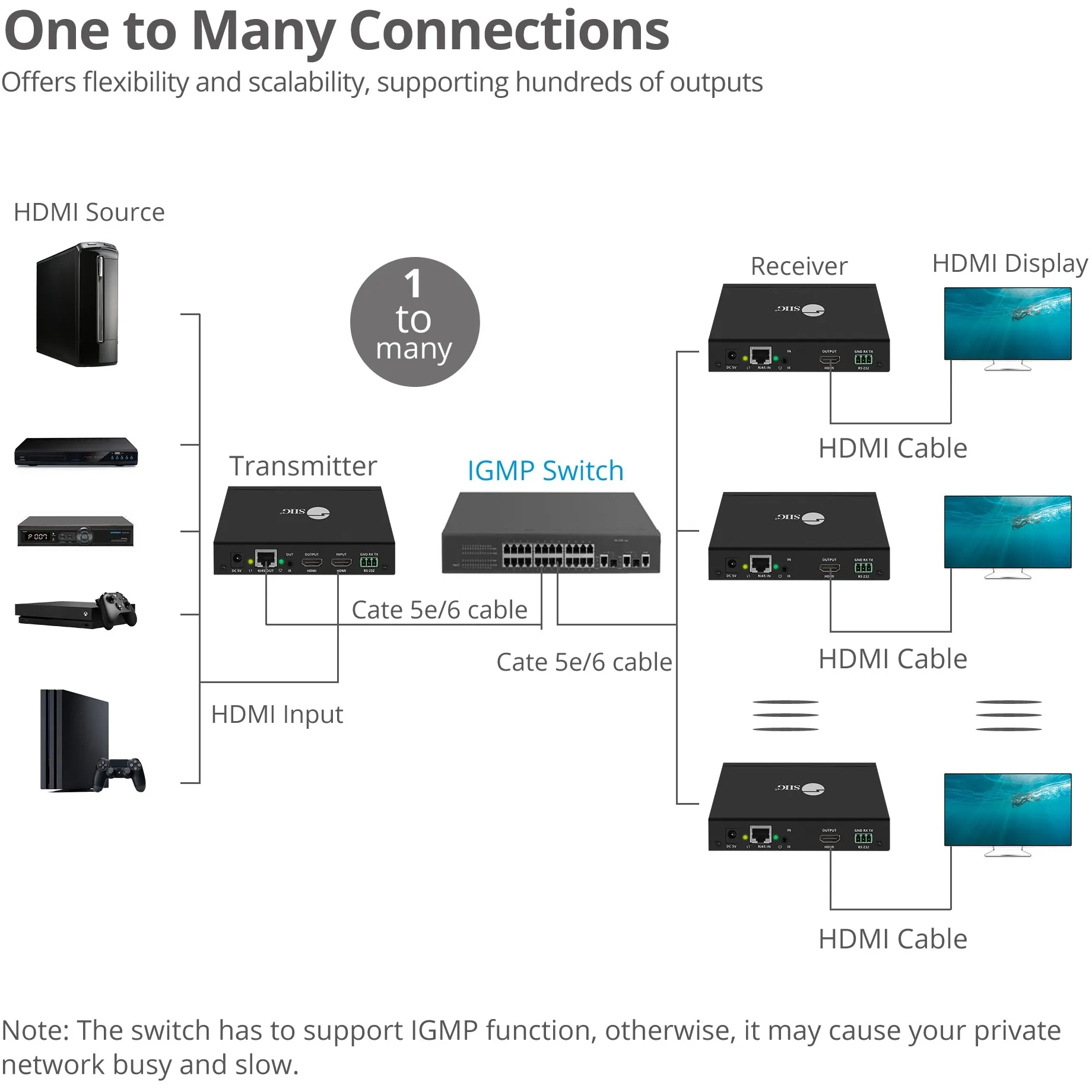

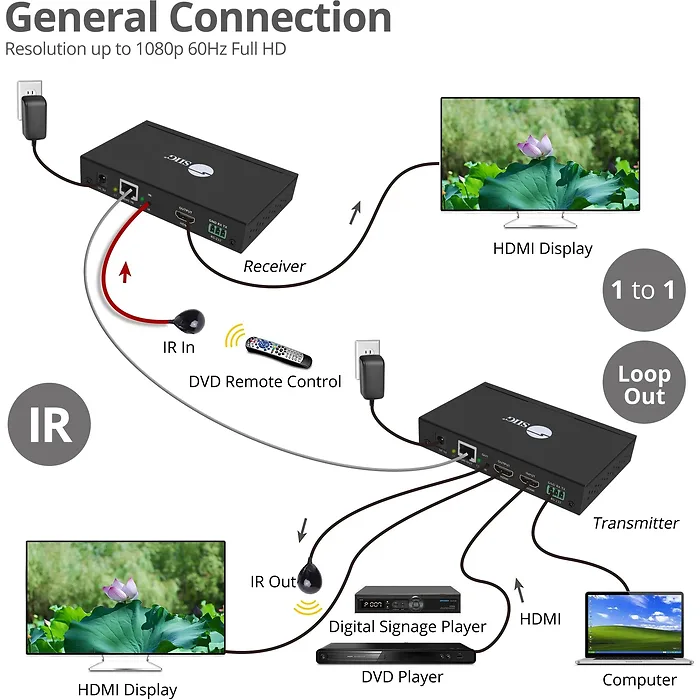

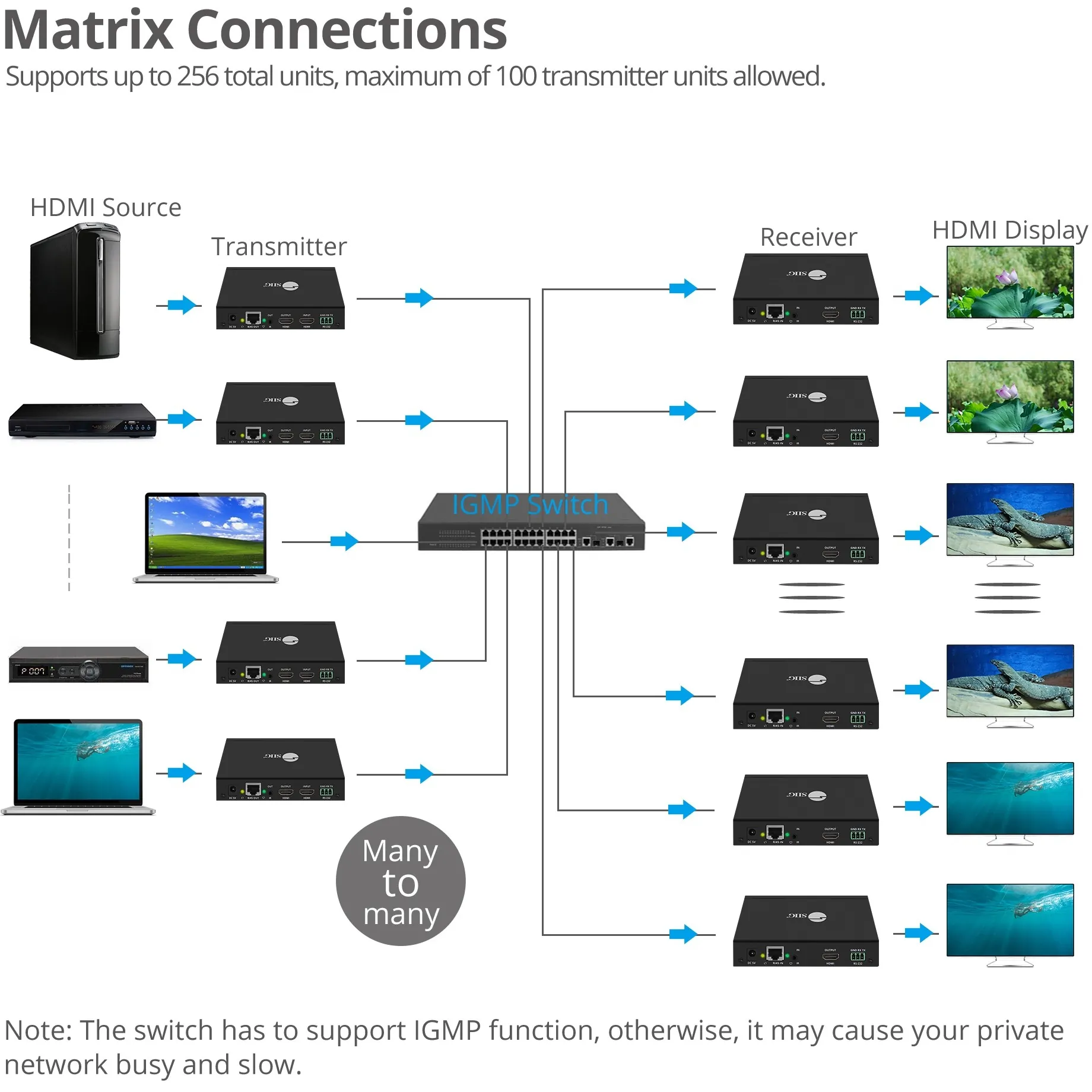

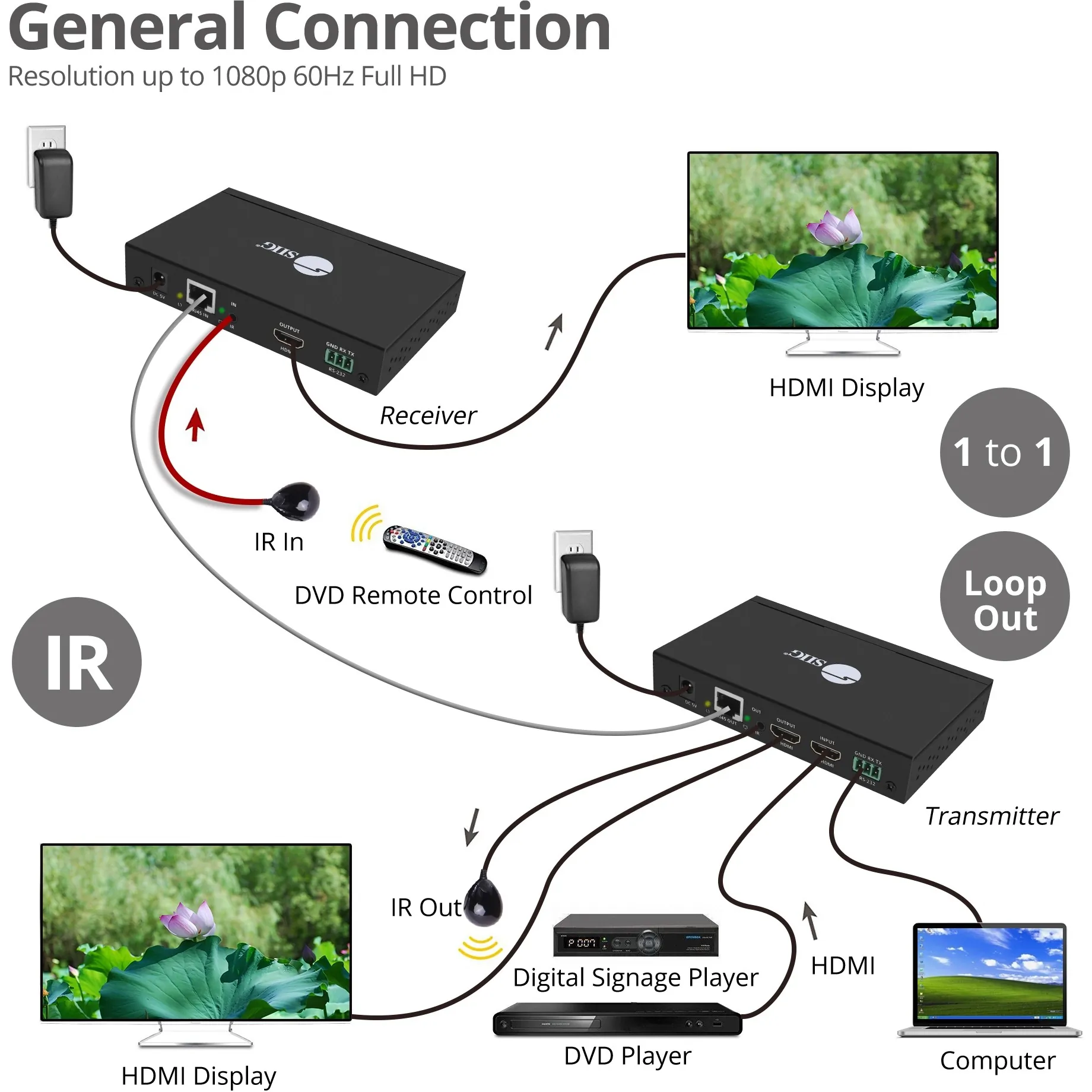

General InformationExtends high definition 1080p HDMI signals from a source device to a display device through economical CAT5e/6 cabling up to 120 meters using advanced HDBitT over IP technology Extends HDMI signals with stereo audio to a remote display over UTP CAT5e/6 cabling up to 120 meters Works as a scalable TX/RX Matrix over dedicated IP network, allows up to 256 total units, limited to 100 transmitters. Additional transmitter units (part# CE-H23B11-S1) and receiver units (part# CE-H23C11-S1) sold separately Supports up to 1080p @60Hz video resolution to deliver stunning and crystal clear images Supports IR pass back function to control the source device from RX location Supports computer control software to select and switch between source devices (Matrix only) Supports HDbit-T protocol with H.264 compression over IP HDMI output on the transmitter allows you to monitor the HDMI signal at the source location RS-232 pass-through connection to control RS-232 enabled devices at either direction Technical InformationConnectivity Technology: WiredNumber of Input Devices Supported: 1Number of Output Devices Supported: 1Maximum Operating Distance: 393.70 ftVideoGraphics Modes: Full HDMaximum Video Resolution: 1920 x 1080Interfaces/PortsNetwork (RJ-45): YesHDMI In: YesHDMI Out: YesSerial Port: YesNumber of Network (RJ-45) Ports: 2Number of HDMI Inputs: 1Number of HDMI Outputs: 2Media & PerformanceMedia Type Supported: Twisted PairTwisted Pair Cable Standard: Category 6Physical CharacteristicsColor: BlackTransmitter Height: 0.94"Transmitter Width: 3.27"Transmitter Depth: 5.24"Form Factor: Rack-mountableTransmitter Weight (Approximate): 1.20 lbMiscellaneousPackage Contents: HDMI Over IP Extender / Matrix with IR - Kit 2 x Power Adapters IR Blaster Extension Cable and IR Receiver Extension Cable 4 x Mounting Ears 8 x Screw Kit Remote Control User Reference Guide Environmentally Friendly: YesEnvironmental Certification: RoHSCountry of Origin: ChinaWarrantyLimited Warranty: 2 Year
Specifications
Transmission Protocol: HDbitT, V1.3x-c (H.264 compression) HDMI 1.3 compliant HDCP 1.4 compliant Resolution:
480p / 720p / 1080i / 1080p at 60Hz Distance:
120m (CAT6) / 100m (CAT5e) / 80m (CAT5)
Note: The transmission distance will vary depending on cable quality, 100% copper and IEEE-568B wiring standard recommended
HDMI cable length: Up to 5m (Input and Output) Supports 2-Ch PCM stereo audio Supports full frequency IR signal from 20KHz to 60KHz Housing material:
Metal Housing Housing color:
Black Latency:
< 220ms Product:

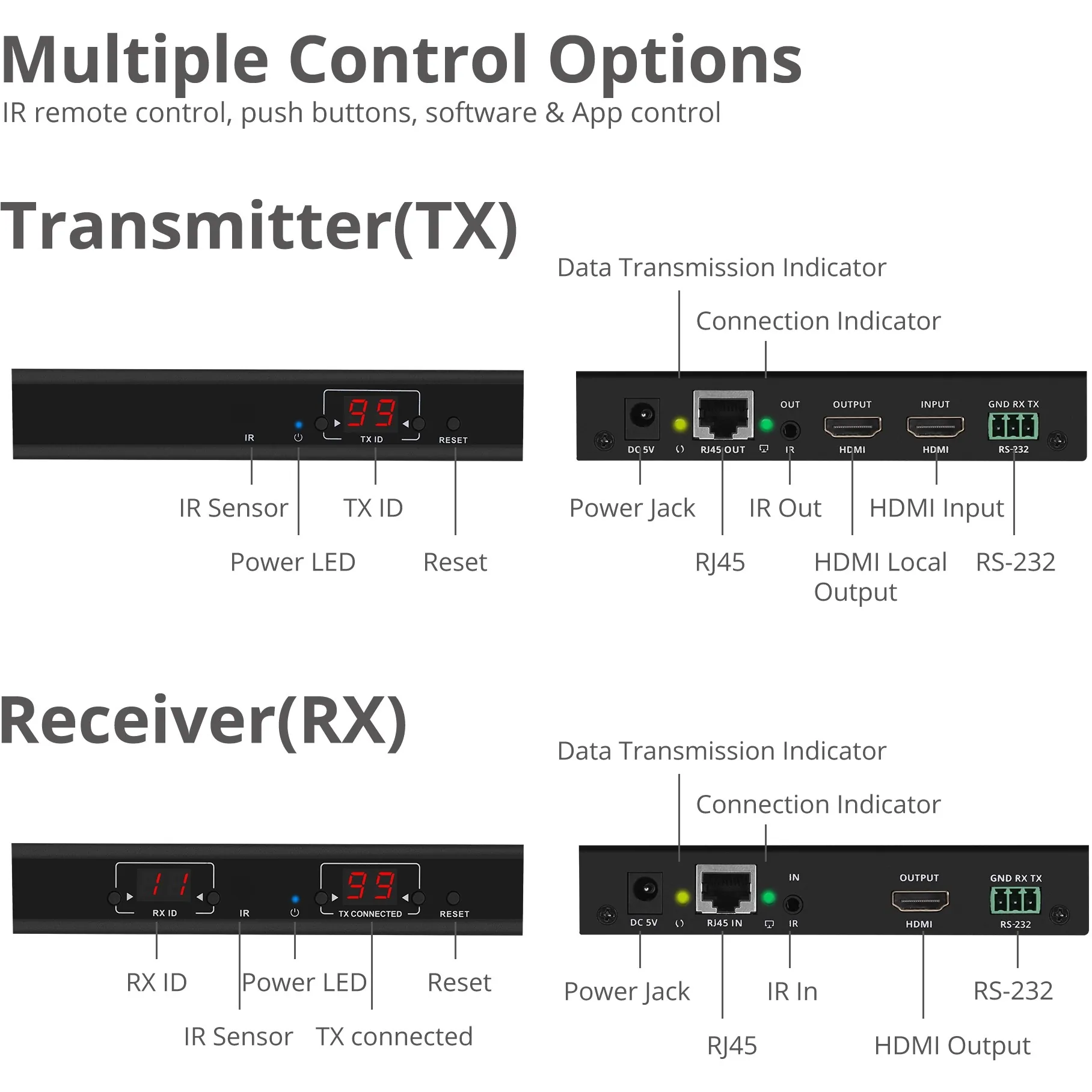

Transmitter unit (TX):
Connectors:
1x 19-pin HDMI, Type-A, Female, Input
1x 19-pin HDMI, Type-A, Female, Output
1x 3-pin RS-232 Phoenix, Female
1x 3.5mm jack, IR Blaster
1x 8-pin RJ45, HDbitT, Output
1x Power jack
1x Switch button
1x Reset button Receiver unit (RX):
Connectors:
1x 19-pin HDMI, Type-A, Female, Output
1x 3-pin RS-232 Phoenix, Female
1x 3.5mm jack, IR Receiver
1x 8-pin RJ45, HDbitT, Input
1x Power jack
1x Switch button
1x Reset button Power Adapter:
Input: 100-240V / 50-60Hz
Output: DC 5V/2A Environmental Conditions:
Operating temperature: 32 to 122 degrees F
Storage temperature: 14 to 140 degrees F
Relative humidity: 0% to 90% RH (non-condensing) Certifications/Standards:
FCC, CE, RoHS Item Dimension (L inchxW inchxH inch)
7 x 10 x 4
Weight
3.00lb
Warranty Information
2 Years
