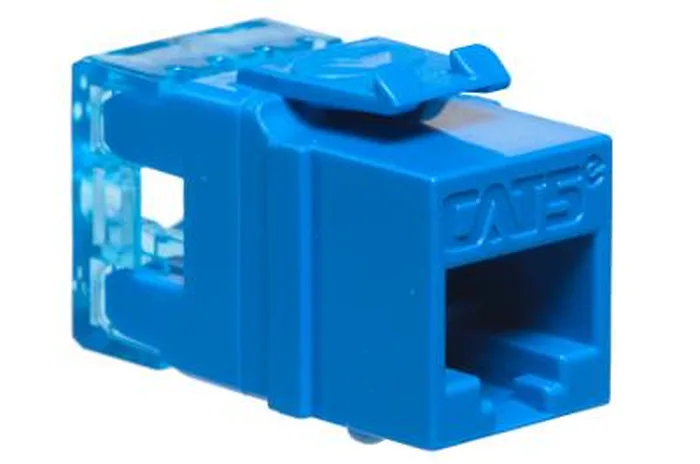

Cablesys ICC-IC1078F5BL Icc Module Cat 5e Hd Blue
by Cablesys
| Price: | $16.18 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
ICCft. s High Density (HD) Category 5e modular connector RJ-45 keystone jack is 8-position 8-conductor (8P8C) and is designed with a smaller rear footprint maximizing space utilization in confined work areas. It is engineered to provide superior performance and reliability supporting up to Gigabit Ethernet applications. The advanced printed circuit board design is tuned to provide optimum signal quality with maximum headroom allowing it to exceed TIA/EIA Category 5e performance standards.
Specifications
- Blue IC1078F5BL ICC High Density Cat5e Keystone Jack- CAT 5e rated connectors provide excellent performance for data networks requiring maximum speed and bandwidth
- PCB technology provides maximum performance and superior signal quality
- Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals
- Reduced rear footprint allows for greater connectivity density and provides for more port configurations in a smaller area
- Exceeds Category 5e industry performance requirements
- Includes an integrated TIA-568A/B color wiring diagram
- Backwards compatible to all lower rated category components
- Available in almond, black, blue, gray, green, ivory, orange, purple, red, white, and yellow
- Installation instructions included
- UL listed
